Features
BRUSHLESS DC WATER PUMP
The Brushless DC Water pump adopts a combination of a ceramic and carbon fiber graphite shaft sleeve, effectively minimizing friction and noise during operation, consequently enhancing its overall lifespan.
FLEXIBLE WASH PROGRAMS
This dishwasher offers 8 wash programs, including ‘Auto’, which automatically senses the optimal wash cycle for your dishes.

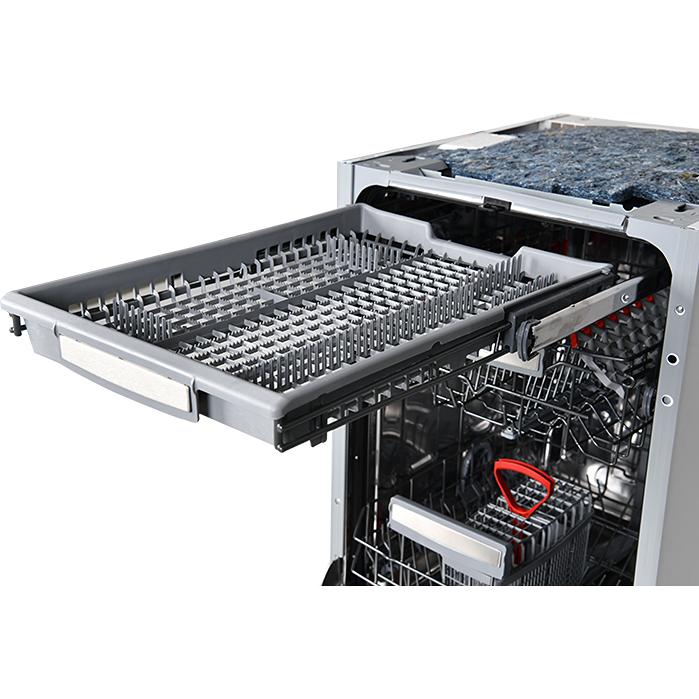

THIRD CUTLERY RACK
Provides additional space for long and flat items like silverware, serving utensils, and spatulas.
BEAM-ON-FLOOR
This dishwasher has a clever way to keep you fully up to date with the status of your dishes. Its beam-on-floor technology projects a red light onto the floor while the cycle is still in progress.
Specifications
General
Type
Built-In
Color
Panel Ready
Manufacturer Color
Panel Ready
Place Settings
10
Tub Material
Stainless Steel
Silence Rating
42 dB
Cycle Information
Number of Cycles
8
Wash Cycles
• Regular
• Auto
• Intensive
• Intensive Plus
• Daily
• Delicates
• Super
• Rinse
• Auto
• Intensive
• Intensive Plus
• Daily
• Delicates
• Super
• Rinse
Options
• Hi-Temp
• Sanitize
• Extra Rinse
• Extra Dry
• Extra Fast
• Extra Silent Wash
• Sanitize
• Extra Rinse
• Extra Dry
• Extra Fast
• Extra Silent Wash
Features
Delay Start Information
1-2-3-19 Hours
Delay Start
Yes
Silverware Basket
Yes
Additional Information
• Third Basket Type: Easy Tray
• Upper Basket Type: Peg Type
• Adjustable Upper Basket: 2 Level (Empty) / 3 Level (Loaded)
• No. of Mug Shelves: 2 Adjustable Mug Shelves
• Mug Shelves with Soft Touch Rubber
• Foldable Racks on Upper / Lower Basket
• Upper / Lower Basket Handle Type: Metal Insert
• Removable Cutlery Basket
• Anti-siphon System
• Standard / Tall Tub: Standard Tub
• Control Type: Electronic Touch/Button Control
• Direct-Wash
• Display: LED / White (Blue Option)
• Interior Light: 1 Spot
• Eco Wash - Half Load: (3 Modes)
• Rinse Aid Indicator
• End of Cycle Indicator
• Floor Indicator: Red Light Beam-On-Floor
• Sanitize Indicator
• Audio: Single Buzzer
• Salt Container
• Start/Pause
• Overflow & Leak Protection
• Water Consumption: 3.4 gal
• Duration of Standard Program: 105-140 min
• Circulation Pump: Brushless DC Water Pump (BLDC)
• Upper Basket Type: Peg Type
• Adjustable Upper Basket: 2 Level (Empty) / 3 Level (Loaded)
• No. of Mug Shelves: 2 Adjustable Mug Shelves
• Mug Shelves with Soft Touch Rubber
• Foldable Racks on Upper / Lower Basket
• Upper / Lower Basket Handle Type: Metal Insert
• Removable Cutlery Basket
• Anti-siphon System
• Standard / Tall Tub: Standard Tub
• Control Type: Electronic Touch/Button Control
• Direct-Wash
• Display: LED / White (Blue Option)
• Interior Light: 1 Spot
• Eco Wash - Half Load: (3 Modes)
• Rinse Aid Indicator
• End of Cycle Indicator
• Floor Indicator: Red Light Beam-On-Floor
• Sanitize Indicator
• Audio: Single Buzzer
• Salt Container
• Start/Pause
• Overflow & Leak Protection
• Water Consumption: 3.4 gal
• Duration of Standard Program: 105-140 min
• Circulation Pump: Brushless DC Water Pump (BLDC)
Electrical Information
Information
• Annual Energy Consumption: 250 kWh/year
• Power Rating (W) / Heating Element (W): 1400 W / 1100 W
• Voltage (V) / Frequency (Hz): 120 V / 60 Hz
• Rated Current: 12 A
• Power Cord Length: 63" (1600mm)
• Water Outlet Hose Length: 76 3/4" (1950mm)
• Water Pressure Range: 0.3 - 10 bar
• Power of Washing Pump: 100 W
• Power of Drain Pump: 35 W
• Power Rating (W) / Heating Element (W): 1400 W / 1100 W
• Voltage (V) / Frequency (Hz): 120 V / 60 Hz
• Rated Current: 12 A
• Power Cord Length: 63" (1600mm)
• Water Outlet Hose Length: 76 3/4" (1950mm)
• Water Pressure Range: 0.3 - 10 bar
• Power of Washing Pump: 100 W
• Power of Drain Pump: 35 W
Certifications and Approvals
Information
Energy Star® qualified
Dimensions
Class Width
18"
Width
17.63 inch(es) / 44.78 cm
Height (Min.)
32.07 inch(es) / 81.46 cm
Depth (Without Handle)
21.67 inch(es) / 55.04 cm
Additional Dimensions
• Cut-Out Dimensions (W / H / D): 17 3/4" x min. 32 7/16" - max. 34 7/16" x 22 1/2
• Adjustable Plinth: 31/8" x 51/8" (80mm + 130mm)
• Adjustable Plinth: 31/8" x 51/8" (80mm + 130mm)
Warranty
Warranty
Limited 2-year parts and labor.
