Specifications
General
Refrigerator Type
Bottom Freezer
Installation Type
Built-In
Counter-Depth
No
Door Hinge
Left
Reversible Doors
No
Color
Stainless Steel
Capacity
Total
15.5 cu. ft.
Refrigerator
11.8 cu. ft.
Freezer
3.7 cu. ft.
Refrigerator Features
Digital Display
Yes
Frost Free
Yes
Interior Light
Yes
Crisper Drawers
Yes
Additional Information

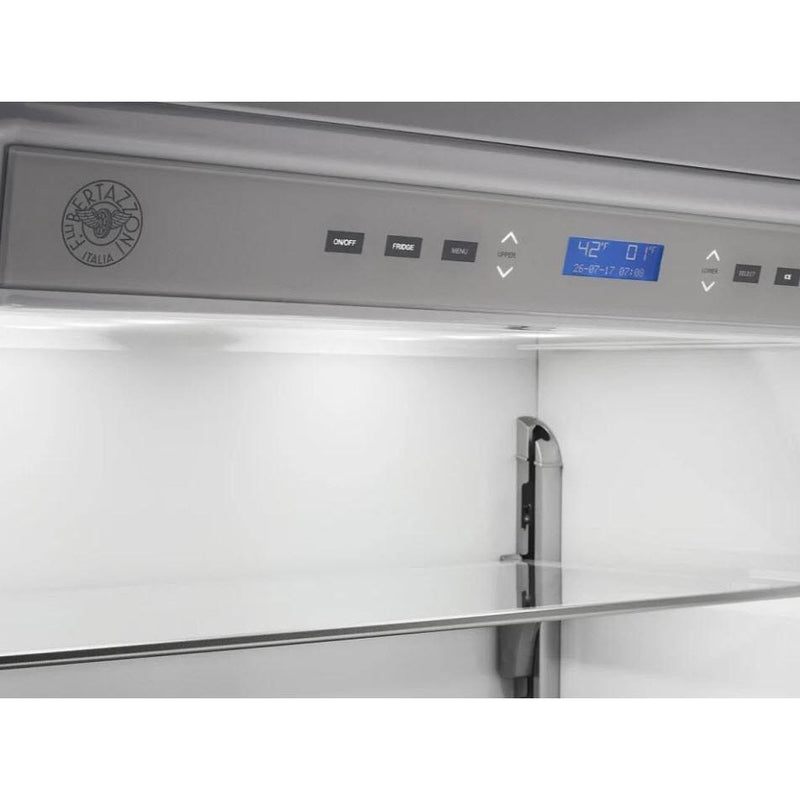

• Internal digital TFT touch and scroll interface
• Top and sidewall LED lights

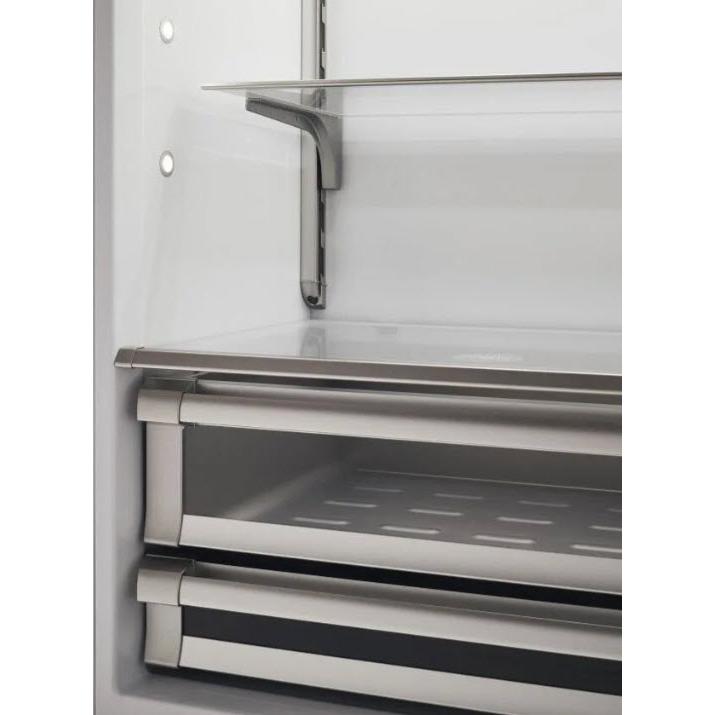

• Shelves 1 stationary + 2 height-adjustable
• Drawers 2 soft-close metal drawers
• 3 height-adjustable bins
• Settings: Bottle cooler, Ice maker, Ice cube size, Super ice, Water filter, Flex mode, Vacation mode, Shopping mode, Sabbath mode
• Water connection: 1/4" waterline with shut-off valve
• Water supply pressure: 8 psi to 75 psi
• Top and sidewall LED lights
• Shelves 1 stationary + 2 height-adjustable
• Drawers 2 soft-close metal drawers
• 3 height-adjustable bins
• Settings: Bottle cooler, Ice maker, Ice cube size, Super ice, Water filter, Flex mode, Vacation mode, Shopping mode, Sabbath mode
• Water connection: 1/4" waterline with shut-off valve
• Water supply pressure: 8 psi to 75 psi
Freezer Features
Additional Freezer Information
Flexmode control to set temperature as freezer (5°F to -8°F), fresco (28°F to 36°F) or fridge (36°F to 46°F)
Ice and Water
Ice System
Interior
Filtration
Yes
Filtration Indicator
Yes
Dispenser Features
Automatic ice maker up to 3 lbs/24 hrs
Electrical Information
Information
• 115 V 60 Hz - 250 W - 3 A
• Power connection: NEMA 5-15P with 98" power cord
• 543.0 kWh/yr
• Power connection: NEMA 5-15P with 98" power cord
• 543.0 kWh/yr
Certifications and Approvals
Energy Star Certified
Yes
Sabbath Mode
Yes
Additional Information
ETL
Accessories
Optional
• Z330001 Replacement water filter accessory
• PROHK30PI Handle kit - Professional series
• MASHK30PI Handle kit - Master series
• HERHK30PI Handle kit - Heritage series
• 901561 48" Bridge toekick
• 901470 Connection trim for side-by-side installation
• PROHK30PI Handle kit - Professional series
• MASHK30PI Handle kit - Master series
• HERHK30PI Handle kit - Heritage series
• 901561 48" Bridge toekick
• 901470 Connection trim for side-by-side installation
Dimensions
Class Width
29" to 31.9"
Class Height
70" and More
Width
29.61 inch(es) / 75.2 cm
Height (With Hinge)
83.46 inch(es) / 212.0 cm
Overall Depth
22.05 inch(es) / 56.0 cm
Weight
432 lb(s) / 195.95 kg
Shipping Dimensions
Width
31.5 inch(es) / 80.01 cm
Height
89 inch(es) / 226.06 cm
Depth
31.5 inch(es) / 80.01 cm
Warranty
Warranty
2 Years Parts and Labor
