Specifications
General
Type
Built-In
Color
Panel Ready
Manufacturer Color
Panel Ready
Place Settings
15
Tub Material
Stainless Steel
Silence Rating
42 dB
Cycle Information
Number of Cycles
6
Wash Cycles
• Auto
• Crystal and china
• Pots and pans
• Quick
• Regular
• Rinse and hold
• Crystal and china
• Pots and pans
• Quick
• Regular
• Rinse and hold
Options
• Accel
• Extra dry
• Delay start
• 3 half load modes
• Sanitize
• Scrub
• Stealth
• Extra dry
• Delay start
• 3 half load modes
• Sanitize
• Scrub
• Stealth
Features
Technologies
PowerDry
Delay Start Information
1-24h
Delay Start
Yes
Cutlery Tray
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• User interface: Concealed multi-button control
• Display: White LED

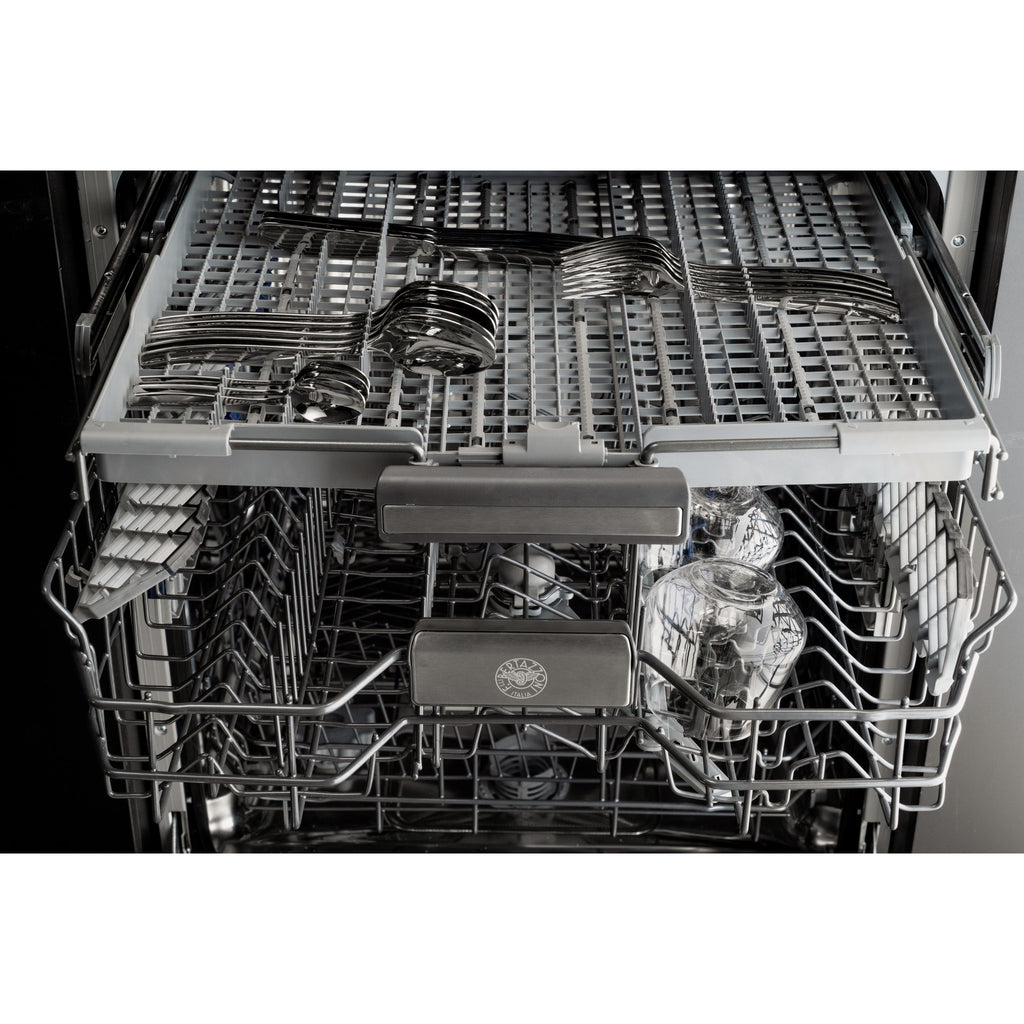

• Racks : 3 - cutlery tray, height adjustable, loaded on 2 levels middle rack and
• folding tines lower rack

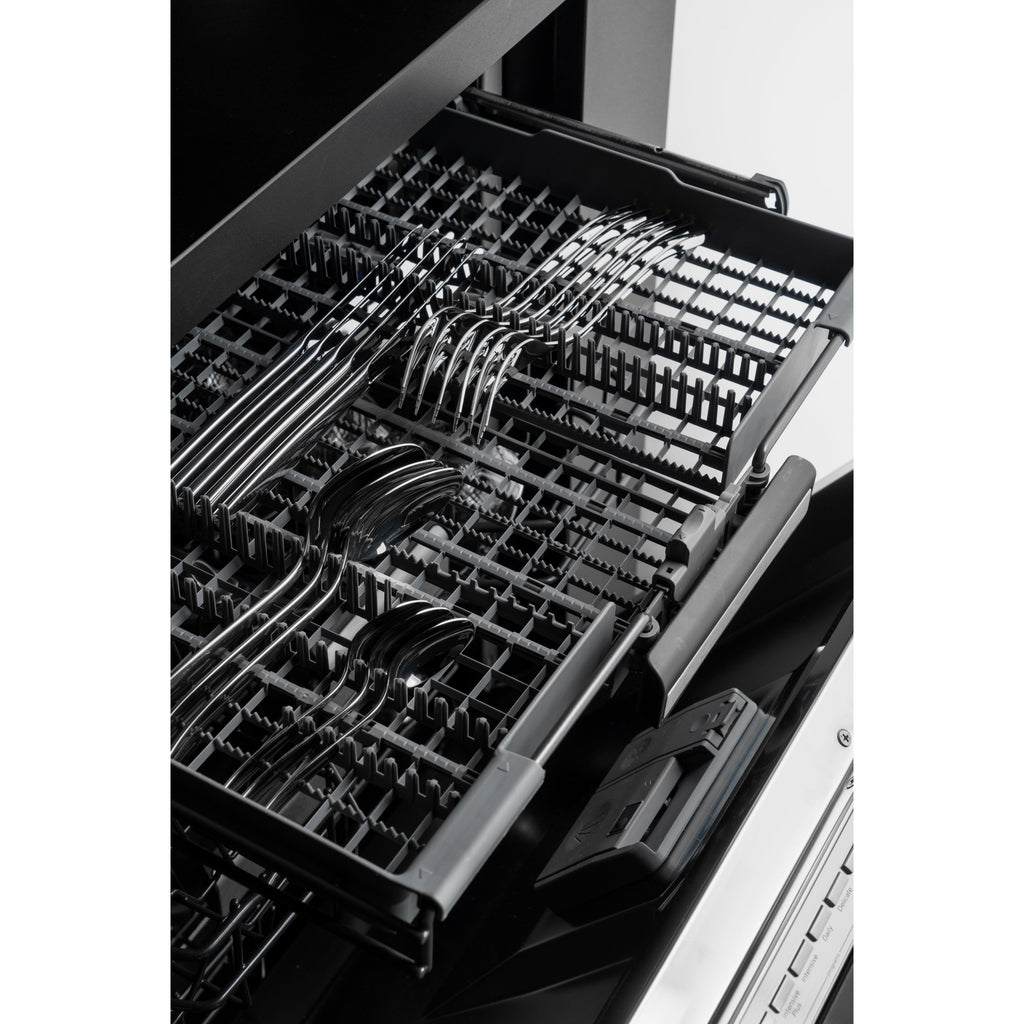

• Cutlery tray: Standard 3rd rack
• Sliding silverware basket
• 3 spray arms
• Concealed heating elements
• Triple stage metal filter
• Floor projection status light
• Overflow protection device
• Display: White LED
• Racks : 3 - cutlery tray, height adjustable, loaded on 2 levels middle rack and
• folding tines lower rack
• Cutlery tray: Standard 3rd rack
• Sliding silverware basket
• 3 spray arms
• Concealed heating elements
• Triple stage metal filter

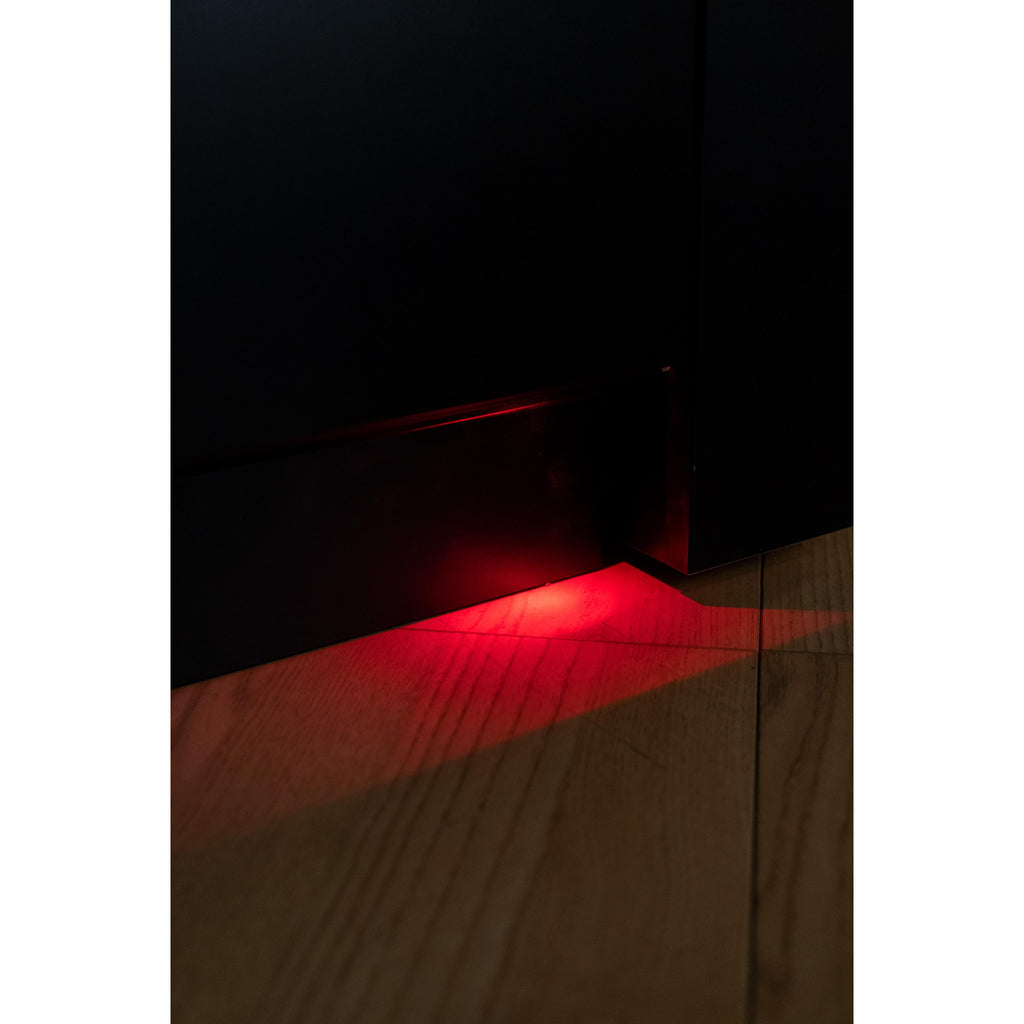

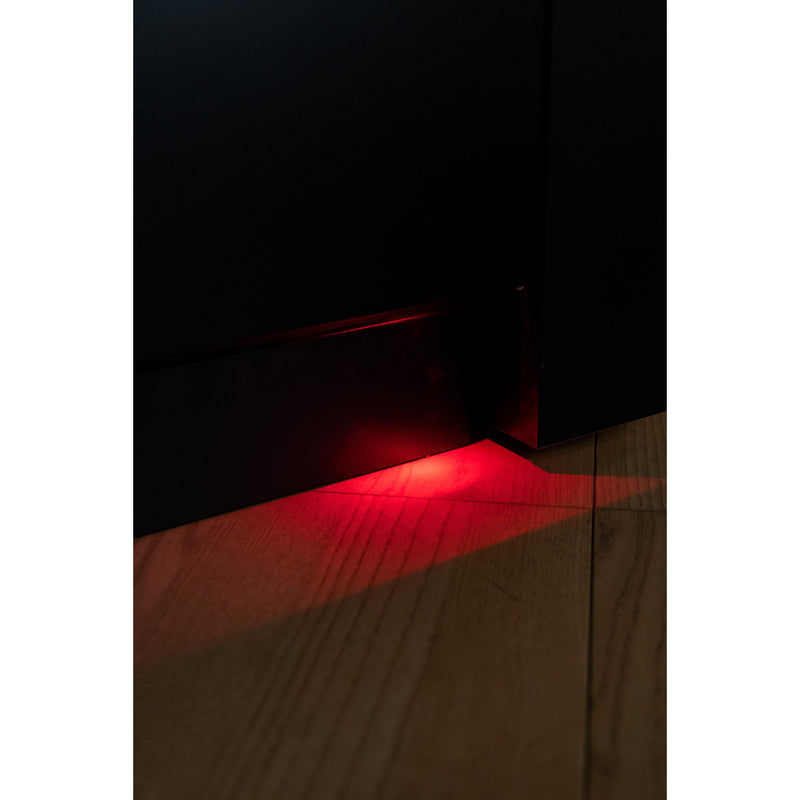

• Floor projection status light
• Overflow protection device
Electrical Information
Information
• 120 V
• 60 HZ
• 1400 W
• 12 A
• 60 HZ
• 1400 W
• 12 A
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
UL Listed
Yes
ADA Compliant
Yes
Information
CEC
Accessories
Optional
• HS24DW: Heavy Duty Springs
• HK24PRODWX: Handle kit - Professional series
• HK24MASDWX: Handle kit - Master series
• HK24HERDWX: Handle kit - Heritage series
• HK24PRODWX: Handle kit - Professional series
• HK24MASDWX: Handle kit - Master series
• HK24HERDWX: Handle kit - Heritage series
Dimensions
Class Width
24"
Width
23.56 inch(es) / 59.85 cm
Height (Min.)
32.25 inch(es) / 81.92 cm
Depth (Without Handle)
21.63 inch(es) / 54.93 cm
Weight
83.8 lb(s) / 38.01 kg
Shipping Dimensions
Width
26 inch(es) / 66.04 cm
Height
33.69 inch(es) / 85.57 cm
Depth
26.56 inch(es) / 67.47 cm
Weight
88.21 lb(s) / 40.01 kg
Warranty
Warranty
2 years parts & labor
Documents
