Features
DISHWASHER SAFE
Dishwasher safe filters with stainless steel covers
Specifications
General
Series Name
800
Blower Included
No
Style
Downdraft
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Countertop
Features
Dishwasher-Proof Filters
Yes
Ducting Information
• Duct Blower Left, Right, or Straight Down
• Convertable: Ducted / Recirculating
• Convertable: Ducted / Recirculating
Speeds
3 Speeds
Additional Information
• Stands Over 13" Tall
• Lowers Out of Sight When Not in Use
• Full Face Mesh Filters
• Wall or Island Installations
• Quickly and Quietly Clears the Air of Smoke and Odor
• Intake Area Captures Smoke, Odor, and Grease
• Dishwasher-safe Mesh Filters
• External motor
• Approval certificates: CSA, UL.
• Lowers Out of Sight When Not in Use
• Full Face Mesh Filters
• Wall or Island Installations
• Quickly and Quietly Clears the Air of Smoke and Odor
• Intake Area Captures Smoke, Odor, and Grease
• Dishwasher-safe Mesh Filters
• External motor
• Approval certificates: CSA, UL.
Electrical Information
Information
• 120 V
• 10 A
• 60 Hz
• Plug type: 120V-3 prong
• 10 A
• 60 Hz
• Plug type: 120V-3 prong
Accessories
Optional
• DHZDHR6: 6" duct transition (NOTE: Required with the installation of inline and remote blowers for downdraft applications only. DHZDHR6 is for 600 CFM which will improve overall performance)
• DHDRM36UC Recirculation kit
• DHG601DUC 600 CFM Internal Blower
• DHG6015NUC 600 CFM Inline Blower
• DHG6023RUC 600 CFM Remote Blower.
• DHDRM36UC Recirculation kit
• DHG601DUC 600 CFM Internal Blower
• DHG6015NUC 600 CFM Inline Blower
• DHG6023RUC 600 CFM Remote Blower.

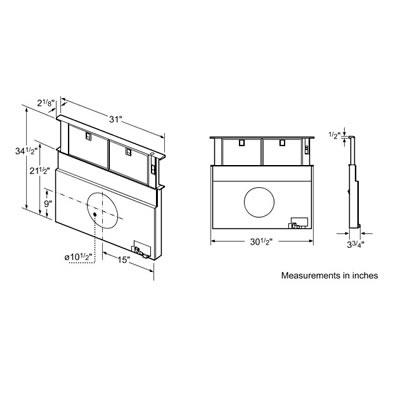

Dimensions
Class Width
30"
Width
31 inch(es) / 78.74 cm
Height
21.63 inch(es) / 54.93 cm
Depth
3.75 inch(es) / 9.53 cm
Weight
36.99 lb(s) / 16.78 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
825225865810
