Features
ALL-IN-ONE OVEN
The All-in-One Oven combines all of your favorite appliances into one. It includes modes such as Quick Meal for convenience foods, or Air Fry to deliver crispy results with little to no preheat required.
RAPID PRE-HEAT
Rapid pre-heat reaches 350F quickly to speed up dinner prep.

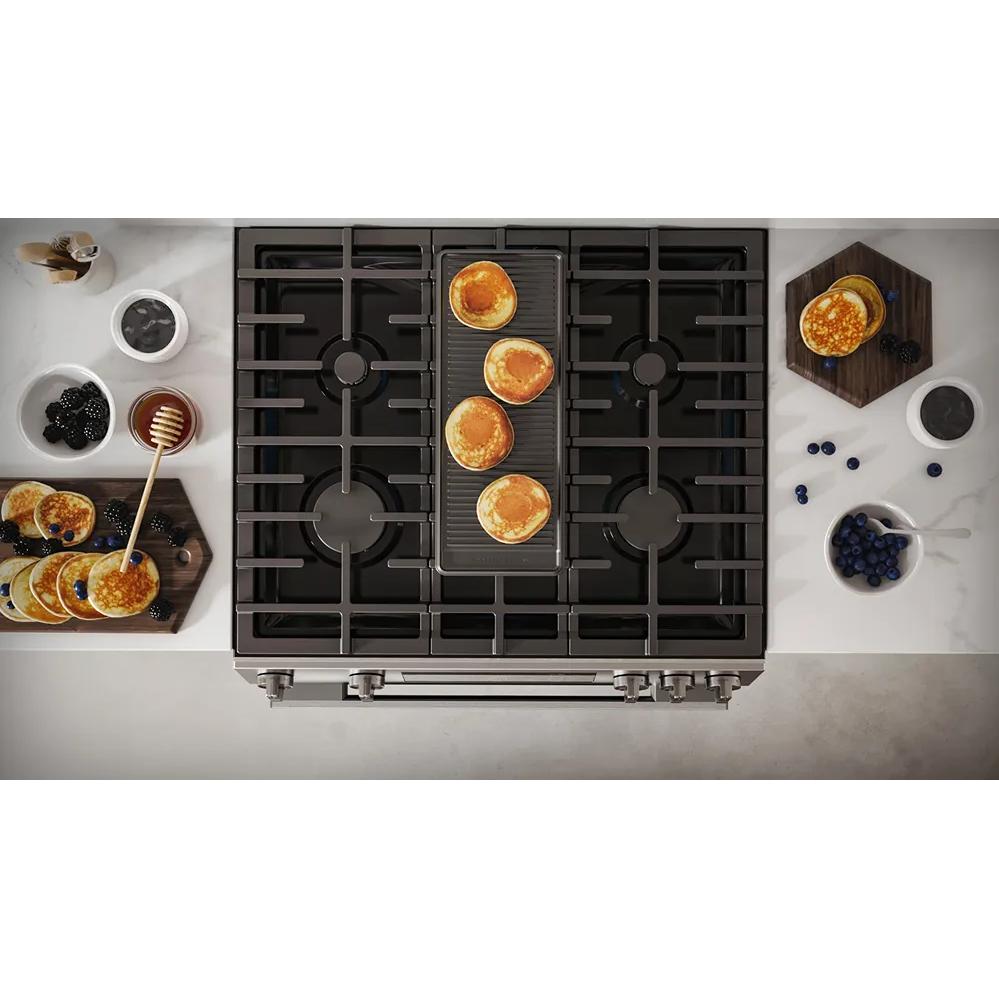

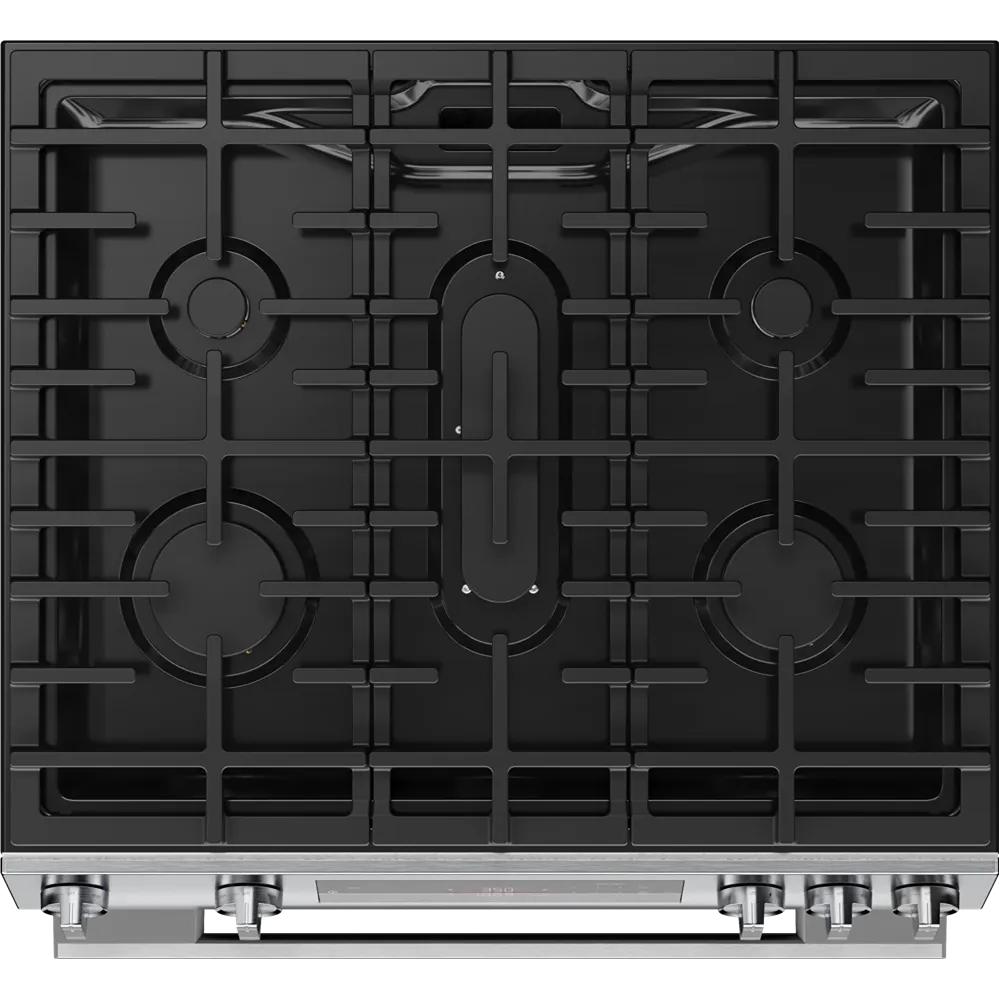

POWERFUL CENTER OVAL BURNER
Powerful center oval burner is ideal for large pans and griddles.

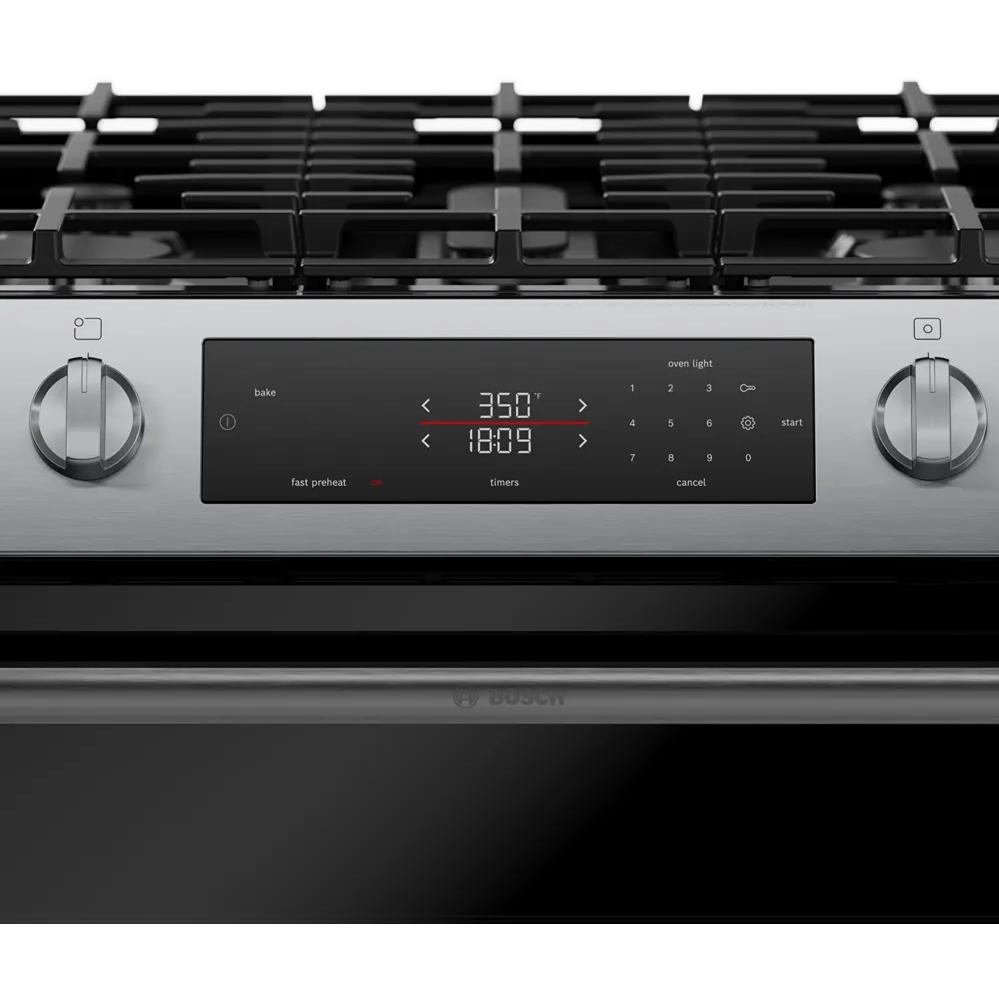

SLEED BACKLIT USER INTERFACE
Sleek backlit user interface wakes up when prompted.
Specifications
General
Series Name
100 Series
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-clean (2h, 3h, 5h) and Steam-assist clean
Cooktop
Burners/Elements
5
Burners/Elements Output
• Total Cooktop (NG / LP) BTU: 47,200 / 47,200
• Power of Front Left Burner (NG / LP) BTU: 16,000 / 16,000
• Power of Back Left Burner (NG / LP) BTU: 5,000 / 5,000
• Power of Center Burner (NG / LP) BTU: 9,200 / 9,200
• Power of Back Right Burner (NG / LP) BTU: 5,000 / 5,000
• Power of Front Right Burner (NG / LP) BTU: 12,000 / 12,000
• Power of Front Left Burner (NG / LP) BTU: 16,000 / 16,000
• Power of Back Left Burner (NG / LP) BTU: 5,000 / 5,000
• Power of Center Burner (NG / LP) BTU: 9,200 / 9,200
• Power of Back Right Burner (NG / LP) BTU: 5,000 / 5,000
• Power of Front Right Burner (NG / LP) BTU: 12,000 / 12,000
Burners
Sealed
Oven
Number of Ovens
Single
Programs
• Air Fry
• Bake, Broil
• Convection Bake
• Convection Broil
• Pizza, Proof
• Quick Meal/Frozen Foods
• Keep Warm
• Bake, Broil
• Convection Bake
• Convection Broil
• Pizza, Proof
• Quick Meal/Frozen Foods
• Keep Warm
Features
Technologies
• Convection Technology
• Air Fry Technology
• Air Fry Technology
Air Fry
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Cast Iron Grates
• 1 Oven Light
• Kitchen Timer
• Bake / Broil Burner Power BTU: 18,000 / 13,000 BTU
• 1 Oven Light
• Kitchen Timer
• Bake / Broil Burner Power BTU: 18,000 / 13,000 BTU
Drawer Features
Storage
Yes
Electrical Information
Information
• 13,500 / 10,200 W
• 40 A
• 208 V / 240 V
• 60 Hz
• Plug type / Cord Length: 4-prong Plug / 1.4m
• 40 A
• 208 V / 240 V
• 60 Hz
• Plug type / Cord Length: 4-prong Plug / 1.4m
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Information
UL
Accessories
Included
• 2 Standard Racks
• LP Conversion Kit
• Anti-tip Protection Kit
• LP Conversion Kit
• Anti-tip Protection Kit
Dimensions
Class Width
30"
Width
29.84 inch(es) / 75.8 cm
Height
36.18 inch(es) / 91.9 cm
Depth (Without Handles)
26.38 inch(es) / 67.0 cm
Weight
176 lb(s) / 79.83 kg
