Specifications
General
Series Name
Caliber™ Pro
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Custom Color
Cooktop
Burners/Elements
5
Burners/Elements Output
• 23,000 BTU to 14,500 BTU high burner ratings
• All Top burners equipped with 130ºF Simmer turn down
• All Top burners equipped with 130ºF Simmer turn down
Burners
Open
Other
Griddle
Oven
Capacity (cu. ft.)
5.5
Number of Ovens
Single
Features
Technologies
Tri-Flow™ Convection Technology
Convection
Yes
Delay Bake/Start
No
Digital Temperature Display
No
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
No
Wi-Fi
No
Additional Information
• Dedicated ignition system on each Top burner

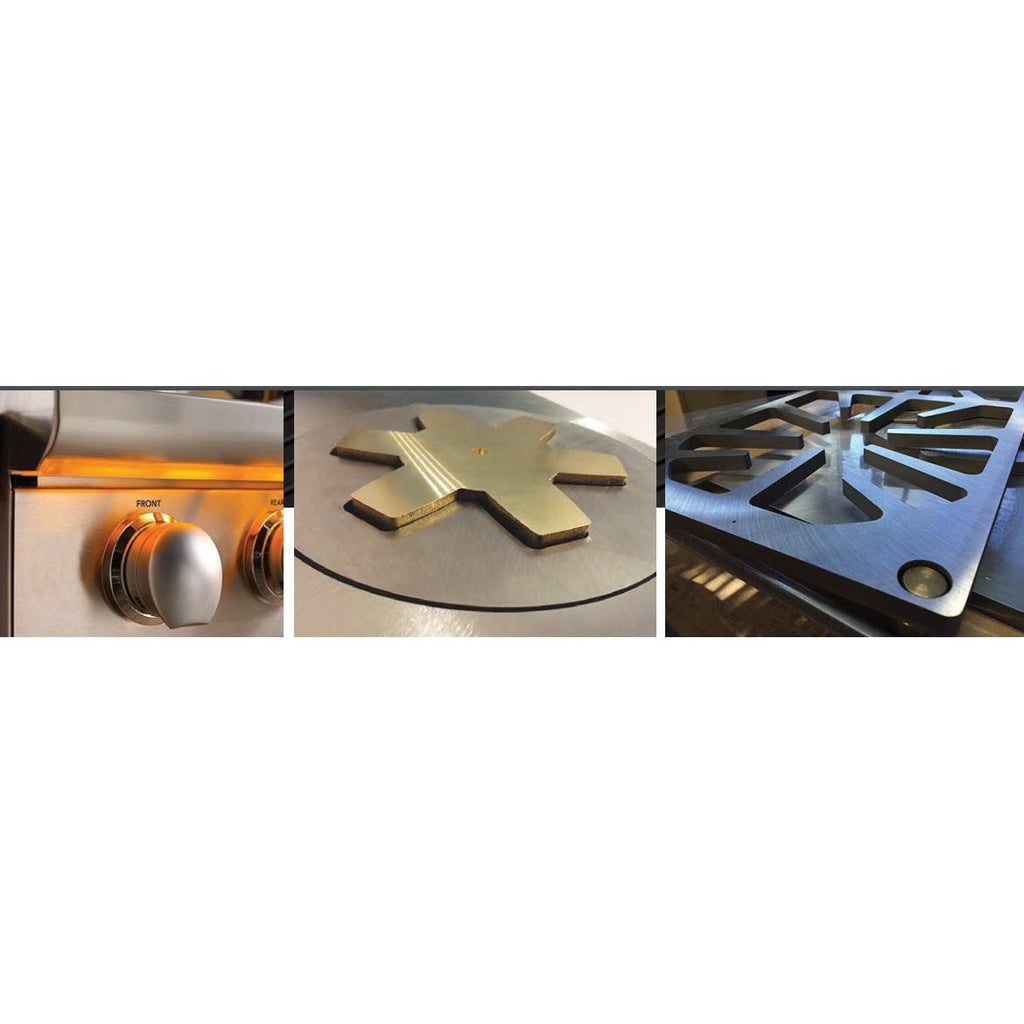

• Top quality die cast knobs with satin chrome finish
• Caliber Exclusive full width amber control panel lighting
• Blanchard ground 1/2" thick solid stainless steel French Top with patent pending design features

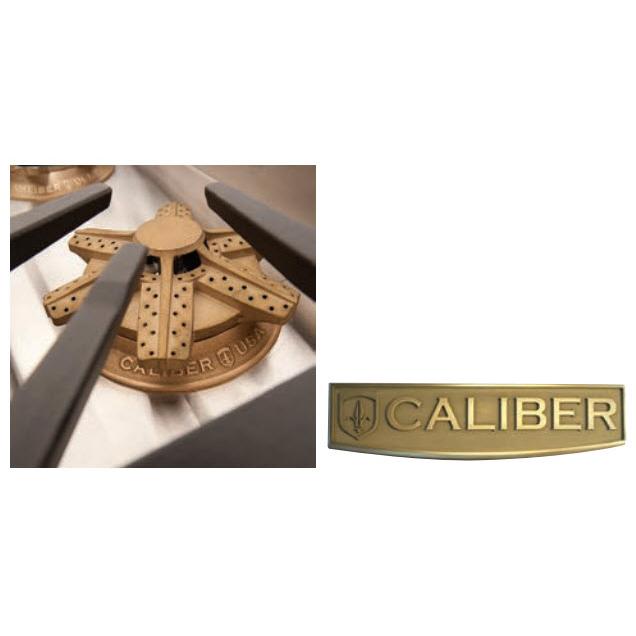

• Solid Brass burner top and base assemblies
• Caliber Quad-lighting solution for interior oven viewing ease
• Four rack positions
• Caliber designed 20,000 BTU Infrared even broiler
• Commercial quality fame-smart grate design
• Industry rst 3/8" thick beveled glass jewel-like viewing windows
• Top quality die cast knobs with satin chrome finish
• Caliber Exclusive full width amber control panel lighting
• Blanchard ground 1/2" thick solid stainless steel French Top with patent pending design features
• Solid Brass burner top and base assemblies
• Caliber Quad-lighting solution for interior oven viewing ease
• Four rack positions
• Caliber designed 20,000 BTU Infrared even broiler
• Commercial quality fame-smart grate design
• Industry rst 3/8" thick beveled glass jewel-like viewing windows
Accessories
Optional
Caliber Custom Oven Door & Trim options:
• - Polished Stainless Steel
• - Brushed Stainless Steel
• - Polished Copper
• - Polished Brass
• Caliber Custom Color Finish options in any RAL color
• Caliber Solid Wood Oven Handle options (Stainless Steel is standard)
• - Polished Stainless Steel
• - Brushed Stainless Steel
• - Polished Copper
• - Polished Brass
• Caliber Custom Color Finish options in any RAL color
• Caliber Solid Wood Oven Handle options (Stainless Steel is standard)
Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.12 cm
Height
38.69 inch(es) / 98.27 cm
Depth (Without Handles)
32.63 inch(es) / 82.87 cm
Depth (Including Handles)
34.37 inch(es) / 87.31 cm
Additional Dimensions
• Full Commercial Sheet size oven (Main oven) - 28" W x 19" H x 22" D
• For more information refer to dimension manual
• For more information refer to dimension manual
Warranty
Warranty
Limited 1 year parts and labor
