Features
MOTO-ROTIS™ MOTORIZED ROTISSERIE SYSTEM
Outdoor BBQ technology comes indoors. The industry’s first motorized rotisserie system allows you to broil mouth-watering, evenly-cooked meals at up to 550°F. Rotisserie split rod and prongs are made of heavy-duty, stainless steel, are built to last and a snap to clean. Basting pan included.
POWER-FLO™ BURNERS (19,000 BTU - 140 DEG. SIMMER)
Capital exclusive feature: Optional cabernet red knobs Power-Flo™ burners.
19,000 BTU - 140 deg. simmer.
Additional Features
STAY-COOL™ KNOBS
Die cast chrome-plated metal knobs with black trims.
Specifications
General
Series Name
Precision
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
4
Burners/Elements Output

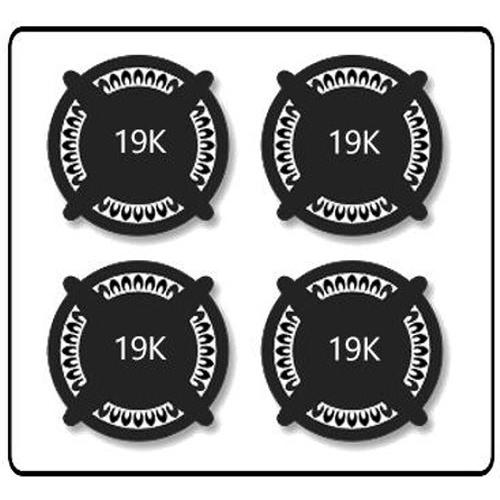

(4x) 19,000 BTU Power-Flo™ Burners
Burners
Sealed
Oven
Capacity (cu. ft.)
4.1 cu.ft.
Number of Ovens
Single
Programs
• Bake
• Broil
• Convection Bake
• Convection Broil
• Open-door Broil
• Rotisserie
• Convection Rotisserie
• Broil
• Convection Bake
• Convection Broil
• Open-door Broil
• Rotisserie
• Convection Rotisserie
Features
Technologies
• Convection Technology
• Flex-Roll™ Racks
• Power-Flo™ Burners
• Moto-Rotis™
• Flex-Roll™ Racks
• Power-Flo™ Burners
• Moto-Rotis™
Convection
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Heavy-Duty Cast Stainless Steel Rotisserie Prongs
• Stainless Steel Rotisserie Spit Rod
• Adjustable Rear Casters for Easy Installation
• Adjustable Front Legs for Easy Leveling
• Titanium Speck Porcelain Oven Interior
• 25-Watt Bright Oven Lights
• 4 Rack Positions with 3 Racks Provided (1 Rack with Broil Pan Position)
• Broil Pan Provided
• 1-1/4" Thick Professional-Style Handle
• Heavy-Duty Oven Door Hinges
• Extra-Large Viewing Window with Embossed Design
• 18,000 BTU Infrared Broiler Behind Glass
• 30,000 BTU Oven for Uniform Baking
• Auto-Ignition/Re-ignition on All Burners
• Stainless Steel Rotisserie Spit Rod
• Adjustable Rear Casters for Easy Installation
• Adjustable Front Legs for Easy Leveling
• Titanium Speck Porcelain Oven Interior
• 25-Watt Bright Oven Lights
• 4 Rack Positions with 3 Racks Provided (1 Rack with Broil Pan Position)
• Broil Pan Provided
• 1-1/4" Thick Professional-Style Handle
• Heavy-Duty Oven Door Hinges
• Extra-Large Viewing Window with Embossed Design
• 18,000 BTU Infrared Broiler Behind Glass
• 30,000 BTU Oven for Uniform Baking
• Auto-Ignition/Re-ignition on All Burners
Electrical Information
Information
• 120 V
• 60 Hz
• 20 A
• 60 Hz
• 20 A
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
38.5 inch(es) / 97.79 cm
Depth (Without Handles)
28.5 inch(es) / 72.39 cm
Weight
380.01 lb(s) / 172.37 kg
Additional Dimensions
Oven Dimensions: 24" W x 14" H x 21" D
Shipping Dimensions
Weight
420 lb(s) / 190.51 kg
Warranty
Warranty
• One (1) Year Full Parts and Labor Warranty Covers Entire Product Against Manufacturing Defects
• Two (2) Years Limited Warranty Covers Radiant System and Infra-Red Burners
• Five (5) Years Limited Warranty Covers all Stainless Steel Parts and Stainless Steel Grill Burner Provided the Grill is Used Under Normal Household Conditions
• Two (2) Years Limited Warranty Covers Radiant System and Infra-Red Burners
• Five (5) Years Limited Warranty Covers all Stainless Steel Parts and Stainless Steel Grill Burner Provided the Grill is Used Under Normal Household Conditions
