Features

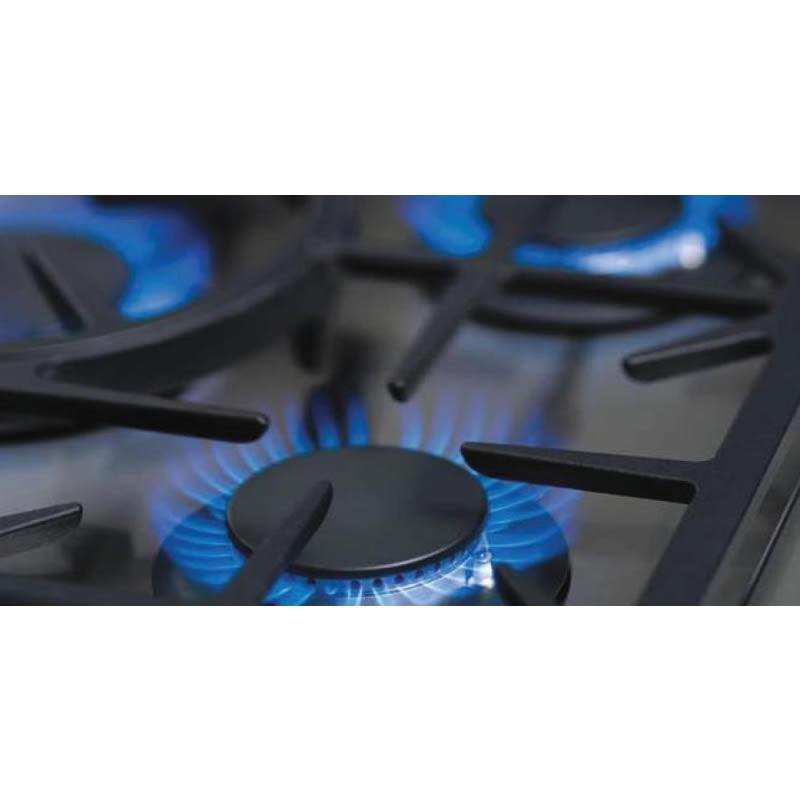

POWER-FLO™ BURNERS
19,000 BTU - 140 deg. Simmer.
POWER BURNER
Power burner
STAY-KOOL KNOBS
Our restaurant grade, die cast chrome plated metal knobs feature bold red graphics
for easy readings of settings. Plastic inserts that stay cool to the touch when using
your Range (Available in Black or Cabernet Red.).
Specifications
General
Series Name
Precision
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Rangetop
Cooktop
Burners/Elements
6
Power Output
• Four 19,000 BTU Power-Flo™ Sealed burners all turn down to a true simmer
• One 18,000 BTU Stainless Steel Griddle Plate with Thermostatic control and Stainless Steel cover

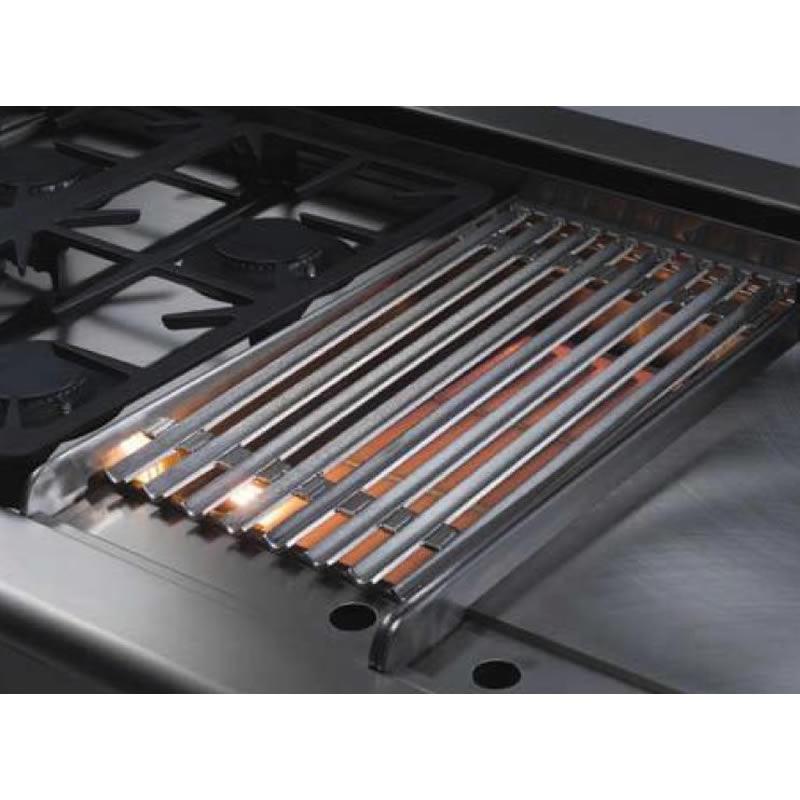

• One 18,000 BBQ Grill Burner with Stainless Steel cover
• One 18,000 BTU Stainless Steel Griddle Plate with Thermostatic control and Stainless Steel cover
• One 18,000 BBQ Grill Burner with Stainless Steel cover
Burner/Element Size
• 12" 18,000 BTU Stainless Steel Griddle Plate with Thermostatic control and Stainless Steel cover
• 12" BBQ Grill Burner with Stainless Steel cover
• 12" BBQ Grill Burner with Stainless Steel cover
Burners
Sealed
Other
Griddle,Grill
Surface Features
Smooth-top Continuous Cast Iron Grates With Easy To Clean Matte Porcelain Finish
Features
Technologies
• Thermo-Griddle™
• Stay-Cool™ die cast, chrome plated metal knobs
• Stay-Cool™ die cast, chrome plated metal knobs
Additional Information
• Auto-ignition and re-ignition on all burners
• Flush island trim
• Flush island trim
Electrical Information
Information
• 120 V
• 60 Hz
• 15 Amp
• 60 Hz
• 15 Amp
Dimensions
Class Width
48" or More
Width
47.87 inch(es) / 121.6 cm
Height
8.31 inch(es) / 21.11 cm
Depth
26.63 inch(es) / 67.63 cm
Additional Dimensions
Cutout Dimension:Standard Installation: 46-15/16" W x 23-1/8" D. No bottom platform required. 9" min. clearance to drawers
Warranty
Warranty
• ONE (1) Year full parts and labor covers entire product with the exception of certain painted or decorative parts. (Light bulbs covered for 60 days after installation.) Standard shipping only. Expedited shipping will be at customers' expense.
• Painted and decorative parts will be warranted for 90 days from date of original purchase. Any damages or defects must be reported within this time frame. Replacement painted parts may have slight color variations from the original parts due to normal manufacturing variables.
• FIVE (5) Years limited part replacement warranty. Covers part replacement, as noted below due to malfunction during normal operation
• Painted and decorative parts will be warranted for 90 days from date of original purchase. Any damages or defects must be reported within this time frame. Replacement painted parts may have slight color variations from the original parts due to normal manufacturing variables.
• FIVE (5) Years limited part replacement warranty. Covers part replacement, as noted below due to malfunction during normal operation
