Specifications
General
Series Name
MAESTRO
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• 64,000 BTU's total (most powerful drop in cooktop available)
• Power-Wok Central burner = 20,000 BTU's
• Power-Flo = 2X 14,000 BTU's
• Power-Flo = 1X 10,000 BTU's
• Power-Sim burner = 6,000 BTU's
• Power-Wok Central burner = 20,000 BTU's
• Power-Flo = 2X 14,000 BTU's
• Power-Flo = 1X 10,000 BTU's
• Power-Sim burner = 6,000 BTU's
Burners
Sealed
Surface Features
• Continuous grate constructed of heavy duty cast iron with porcelain coated finish
• One piece fully sealed top

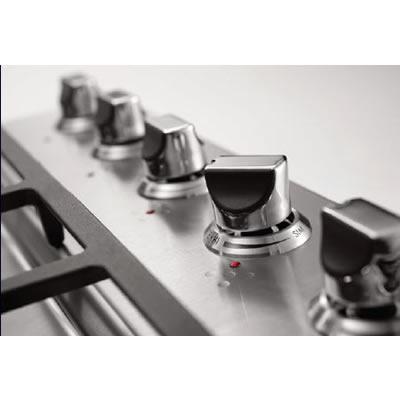

• Die Cast Chrome knobs with comfort grips
• One piece fully sealed top
• Die Cast Chrome knobs with comfort grips
Features
Clock
No
Control Lock
No
Digital Display
No
Downdraft Ventilation
No
Additional Information
• All burners feature 140 degree Simmer feature
• Electronic ignition/re-ignition on all burners
• Individual igniters for each burner

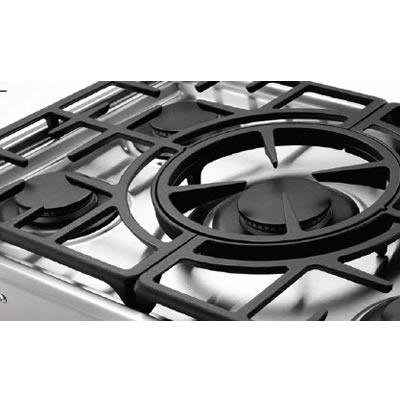

• Reversible central wok grate
• Indicating lights for burners
• Electronic ignition/re-ignition on all burners
• Individual igniters for each burner
• Reversible central wok grate
• Indicating lights for burners
Electrical Information
Information
120
Certifications and Approvals
Sabbath Mode
No
Dimensions
Class Width
36"
Width
34.37 inch(es) / 87.31 cm
Height
3.87 inch(es) / 9.84 cm
Depth
19.94 inch(es) / 50.64 cm
Additional Dimensions
• Cutout Dimension: 34-1/4" W x 20-1/4" D
• Product Dimensions: 34-3/8" W x 19-15/16" D 3-7/8" D below countertop
• Shipping Dimensions: 40" W x 12" H x 25" D
• Product Dimensions: 34-3/8" W x 19-15/16" D 3-7/8" D below countertop
• Shipping Dimensions: 40" W x 12" H x 25" D
Shipping Dimensions
Weight
85.01 lb(s) / 38.56 kg
Warranty
Warranty
• ONE (1) Year full parts and labor covers entire product with the exception of painted or decorative parts listed below*. (Light bulbs covered for 60 days after installation.) Standard shipping only. Expedited shipping will be at customers' expense.
• *Painted and decorative parts will be warranted for 90 days from date of original purchase. Any damages or defects must be reported within this timeframe. Replacement painted parts may have slight color variations from the original parts due to normal manufacturing variables.
• FIVE (5) Years limited part replacement warranty. Covers part replacement, as noted below due to malfunction during normal operation
• *Painted and decorative parts will be warranted for 90 days from date of original purchase. Any damages or defects must be reported within this timeframe. Replacement painted parts may have slight color variations from the original parts due to normal manufacturing variables.
• FIVE (5) Years limited part replacement warranty. Covers part replacement, as noted below due to malfunction during normal operation
Documents
