Features
FLEX-ROLL™ OVEN RACKS
Oven racks for smooth operation in self-clean ranges.

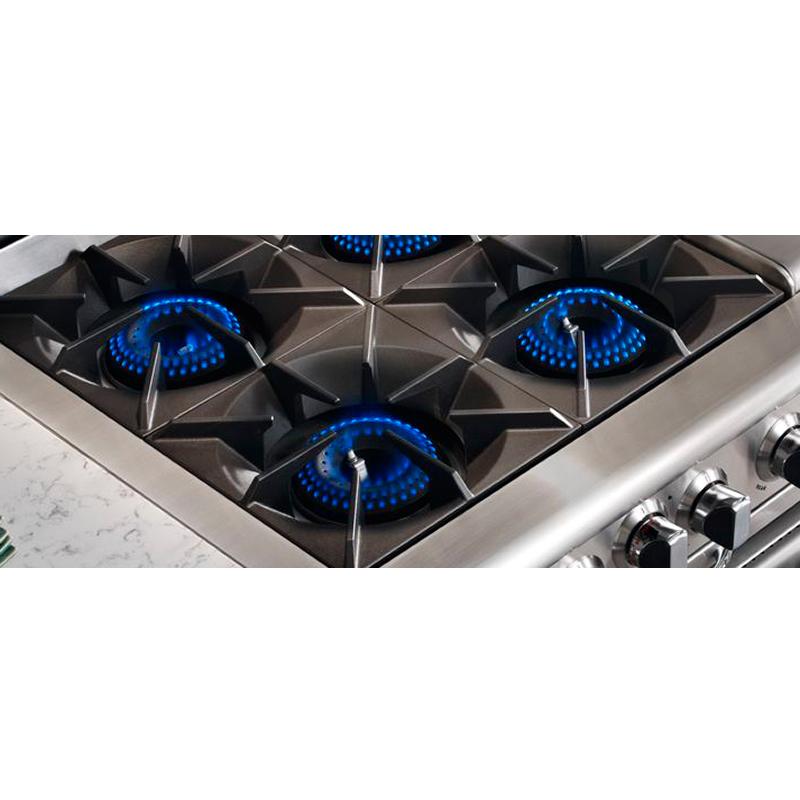

OPEN BURNERS
Each burner produces 25,000 BTUs
of searing heat and also turns down to
a delicate, consistent simmer, offering
precise control. Perfect for the cooking
connoisseur.
MOTO-ROTIS™ MOTORIZED ROTISSERIE SYSTEM
Outdoor BBQ technology comes indoors. The industry’s first motorized rotisserie system allows you to broil mouth-watering, evenly-cooked meals at up to 550°F. Rotisserie split rod and prongs are made of heavy-duty, stainless steel, are built to last and a snap to clean. Basting pan included.
Additional Features
MOIST ASSIST
This exclusive feature stops food from drying during cooking, resulting in some of the juiciest meats ever.
Specifications
General
Series Name
CONNOISSEURIAN
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
5
Burners/Elements Output
• Three 25,000 BTU open style burners turn down to a True Simmer
• One 8,000 BTU Small Pan Burner turns down to an extra low simmer
• Two 18,000 BTU BBQ Grill Burner with Cast Iron Porcelain Coated Grates Hybrid Radiants and Stainless Steel Cover
• One 8,000 BTU Small Pan Burner turns down to an extra low simmer
• Two 18,000 BTU BBQ Grill Burner with Cast Iron Porcelain Coated Grates Hybrid Radiants and Stainless Steel Cover
Burner/Element Size
Two 12 inch wide BBQ Grill
Burners
Open
Other
Grill
Oven
Capacity (cu. ft.)
• Large Oven: 5.4
• Small Oven: 2.4
• Total Capacity: 7.8
• Small Oven: 2.4
• Total Capacity: 7.8
Number of Ovens
Double
Features
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Self-Clean (Both Ovens)
• Dual air-flow convection (Both Ovens)
• Moist Cooking
• Moto-Rotis
• Meat Probe (Both Ovens)
• Timed and Delay Cook features
• Hidden 10 pass dual bake element under glass for easy clean up and efficient oven heating
• Ribbon Broil element under glass results in BBQ quality searing (Both Ovens)
• Flex-Roll™ oven racks for smooth operation (Both Ovens)
• 6 rack positions w/ 3 racks provided (Both Ovens)
• Titanium speck porcelain oven interior (Both Ovens)
• Broil pan provided
• 1-1/4" diameter professional-style handle
• Heavy-duty oven door hinges (Both Ovens)
• EZ-Glides™ - full extension removable drip trays mounted on bearing rails
• Flex-Roll™ Oven Racks for smooth operation
• Stay-Cool™ die cast, chrome plated metal knobs
• Professional stye heavy duty cast iron grates with easy to clean matte porcelain finish
• Dual air-flow convection (Both Ovens)
• Moist Cooking
• Moto-Rotis
• Meat Probe (Both Ovens)
• Timed and Delay Cook features
• Hidden 10 pass dual bake element under glass for easy clean up and efficient oven heating
• Ribbon Broil element under glass results in BBQ quality searing (Both Ovens)
• Flex-Roll™ oven racks for smooth operation (Both Ovens)
• 6 rack positions w/ 3 racks provided (Both Ovens)
• Titanium speck porcelain oven interior (Both Ovens)
• Broil pan provided
• 1-1/4" diameter professional-style handle
• Heavy-duty oven door hinges (Both Ovens)
• EZ-Glides™ - full extension removable drip trays mounted on bearing rails
• Flex-Roll™ Oven Racks for smooth operation
• Stay-Cool™ die cast, chrome plated metal knobs
• Professional stye heavy duty cast iron grates with easy to clean matte porcelain finish
Drawer Features
Baking
No
Broiler
No
Storage
No
Warming
No
Electrical Information
Information
240
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
48"
Width
47.87 inch(es) / 121.6 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
28.37 inch(es) / 72.07 cm
Weight
560 lb(s) / 254.01 kg
Additional Dimensions
• Shipping Dimensions: 52" W x 48" H x 34" D
• Product Dimensions: 47-7/8" W x 36" H x 28-3/8" D
• Primary Oven Dimensions: 27" W x 16-1/2" H x 21" D (19-1/2" usable)
• Companion Oven Dimensions : 12" W x 16-1/2" H x 21" D (19-1/2 Usable)
• Primary Oven Volume: Overall Capacity: 5.4 cubic feet, Usable Capacity: 5 cubic feet
• Companion Oven Volume: Overall Capacity: 2.4 cubic feet, Usable capacity: 2.2 cubic feet
• Cutout Dimension: 48-1/8"W X 24"D (std)
• Product Dimensions: 47-7/8" W x 36" H x 28-3/8" D
• Primary Oven Dimensions: 27" W x 16-1/2" H x 21" D (19-1/2" usable)
• Companion Oven Dimensions : 12" W x 16-1/2" H x 21" D (19-1/2 Usable)
• Primary Oven Volume: Overall Capacity: 5.4 cubic feet, Usable Capacity: 5 cubic feet
• Companion Oven Volume: Overall Capacity: 2.4 cubic feet, Usable capacity: 2.2 cubic feet
• Cutout Dimension: 48-1/8"W X 24"D (std)
Shipping Dimensions
Weight
600.01 lb(s) / 272.16 kg
Warranty
Warranty
• ONE (1) Year full parts and labor covers entire product with the exception of painted or decorative parts listed below*. (Light bulbs covered for 60 days after installation.) Standard shipping only. Expedited shipping will be at customers' expense.
• *Painted and decorative parts will be warranted for 90 days from date of original purchase. Any damages or defects must be reported within this timeframe. Replacement painted parts may have slight color variations from the original parts due to normal manufacturing variables.
• FIVE (5) Years limited part replacement warranty. Covers part replacement, as noted below due to malfunction during normal operation
• *Painted and decorative parts will be warranted for 90 days from date of original purchase. Any damages or defects must be reported within this timeframe. Replacement painted parts may have slight color variations from the original parts due to normal manufacturing variables.
• FIVE (5) Years limited part replacement warranty. Covers part replacement, as noted below due to malfunction during normal operation
