Features
POWER-FLO™ BURNERS (19,000 BTU - 140 DEG. SIMMER)
Capital exclusive feature: Optional cabernet red knobs Power-Flo™ burners.
19,000 BTU - 140 deg. simmer.

MOTO-ROTIS™ MOTORIZED ROTISSERIE SYSTEM
Outdoor BBQ technology comes indoors. The industry’s first motorized rotisserie system allows you to broil mouth-watering, evenly-cooked meals at up to 550°F. Rotisserie split rod and prongs are made of heavy-duty, stainless steel, are built to last and a snap to clean. Basting pan included.

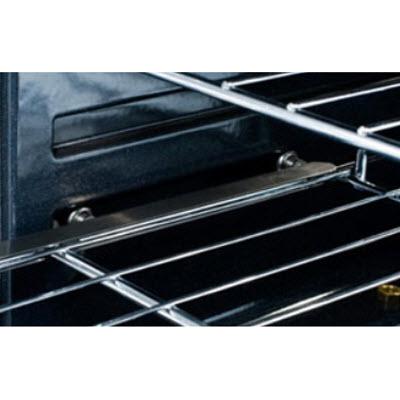

FLEX-ROLL™ OVEN RACKS
Oven racks for smooth operation in self-clean ranges.

Specifications
General
Series Name
CONNOISSEURIAN
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
6
Burners/Elements Output
6x Sealed Burners 19,000 BTU
Other
Wok
Oven
Capacity (cu. ft.)
• Small Oven : 3.6
• Large Oven : 5.4
• Total Capacity : 9.0
• Large Oven : 5.4
• Total Capacity : 9.0
Number of Ovens
Double
Features
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• MOIST Cooking
• Moto-Rotis™ – Built-in motorized rotisserie
• BAKE, BROIL, ROAST, DELICATE BAKE, PERFECT CONVECTION & MOIST COOKING
• SELF CLEAN (all ovens)
• MEAT PROBE cooking (all ovens)
• Convection Fan cooking for BAKE, BROIL, ROAST
• Hidden Bake Element
• Ribbon Broil Element under glass results in BBQ-quality searing
• Two-speed cooling fan system
• Dual air-flow convection
• Extra large viewing oven window
• Dual Kitchen Timers (5 secs – 11 hours 55 mins)
• TIMED COOK – You can set the oven to turn itself OFF after a set amount of time
• Flex-Roll™ oven racks
• High intensity lights in each oven
• Ultra cool oven doors
• Moto-Rotis™ – Built-in motorized rotisserie
• BAKE, BROIL, ROAST, DELICATE BAKE, PERFECT CONVECTION & MOIST COOKING
• SELF CLEAN (all ovens)
• MEAT PROBE cooking (all ovens)
• Convection Fan cooking for BAKE, BROIL, ROAST
• Hidden Bake Element
• Ribbon Broil Element under glass results in BBQ-quality searing
• Two-speed cooling fan system
• Dual air-flow convection
• Extra large viewing oven window
• Dual Kitchen Timers (5 secs – 11 hours 55 mins)
• TIMED COOK – You can set the oven to turn itself OFF after a set amount of time
• Flex-Roll™ oven racks
• High intensity lights in each oven
• Ultra cool oven doors
Drawer Features
Baking
No
Broiler
No
Storage
No
Warming
No
Electrical Information
Information
240
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
60"
Width
59.87 inch(es) / 152.08 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
28.5 inch(es) / 72.39 cm
Additional Dimensions
• Small Oven Size: 18" Wide X 16½" High X 21" Deep (19½" Usable) - Overall Capacity = 3.6 cubic feet; Usable Capacity = 3.3 cubic feet
• Primary Oven Size: 27" Wide X 16½" High X 21 Deep (19½" Usable) - Overall Capacity = 5.4 cubic feet; Usable Capacity = 5 cubic feet
• For more information please refer to dimension guide
• Primary Oven Size: 27" Wide X 16½" High X 21 Deep (19½" Usable) - Overall Capacity = 5.4 cubic feet; Usable Capacity = 5 cubic feet
• For more information please refer to dimension guide
Warranty
Warranty
• ONE (1) Year full parts and labor covers entire product with the exception of painted or decorative parts (Light bulbs covered for 60 days after installation). Standard shipping only. Expedited shipping will be at customers' expense.
• FIVE (5) Years limited part replacement warranty. Covers part replacement due to malfunction during normal operation.
• LIFETIME warranty (non-transferable) on stainless steel sheet metal body parts, against corrosion (excludes stainless steel barbecue grates and coverage for neglect, abuse, damage, normal heat discoloration). Contact Capital for full warranty details.
• FIVE (5) Years limited part replacement warranty. Covers part replacement due to malfunction during normal operation.
• LIFETIME warranty (non-transferable) on stainless steel sheet metal body parts, against corrosion (excludes stainless steel barbecue grates and coverage for neglect, abuse, damage, normal heat discoloration). Contact Capital for full warranty details.
