Features
FLEX-ROLL™ OVEN RACKS
Oven racks for smooth operation in self-clean ranges.

Additional Features

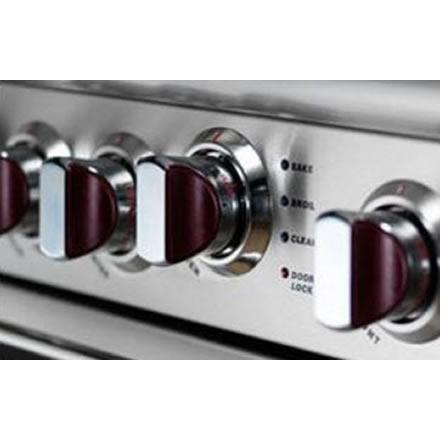

STAY-COOL™ KNOBS
Die cast chrome-plated metal knobs with black trims.
EZ-GLIDES™
Full extension removable drip trays mounted on ball bearing rails.
Specifications
General
Series Name
Culinarian
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop

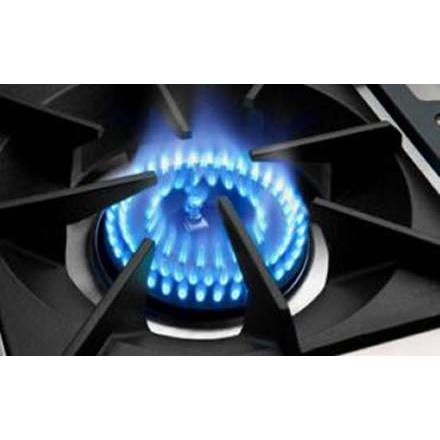

Burners/Elements
4
Burners/Elements Output
• 3 x 25,000 BTU
• 1 x 8,000 BTU
• 1 x 8,000 BTU
Burners
Open
Oven
Capacity (cu. ft.)
4.1
Number of Ovens
Single
Features
Technologies
• Stay-Cool™ die cast, chrome plated metal knobs
• Full extension Drip Trays on EZ-Glides™
• Flex-Roll oven racks for smooth operation
• Full extension Drip Trays on EZ-Glides™
• Flex-Roll oven racks for smooth operation
Convection
Yes
Delay Bake/Start
No
Digital Temperature Display
No
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Infrared Broiler Under Glass
• Integrated Moto-Rotis Rotisserie system
• 5 rack positions
• Height adjustable front levelers
• Removable Door with Heavy Duty Hinges
• Front located Gas Shut-Off Valve and Electrical Disconnect
• Professional stye heavy duty cast iron grates with easy to clean matte porcelain finish
• Integrated Moto-Rotis Rotisserie system
• 5 rack positions
• Height adjustable front levelers
• Removable Door with Heavy Duty Hinges
• Front located Gas Shut-Off Valve and Electrical Disconnect
• Professional stye heavy duty cast iron grates with easy to clean matte porcelain finish
Electrical Information
Information
• 120 V
• 60 Hz
• 10 A
• 60 Hz
• 10 A
Certifications and Approvals
Sabbath/Star-K
No
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
28.37 inch(es) / 72.07 cm
Weight
380.01 lb(s) / 172.37 kg
Additional Dimensions
• Cutout Dimension: 30-1/8"W X 24"D
• Oven Dimensions: 24" W x 14" H x 21"
• Oven Dimensions: 24" W x 14" H x 21"
Shipping Dimensions
Width
34 inch(es) / 86.36 cm
Height
48 inch(es) / 121.92 cm
Depth
34 inch(es) / 86.36 cm
Weight
420 lb(s) / 190.51 kg
Warranty
Warranty
• 5 years limited part replacement
• Lifetime warranty on stainless steel body part
• Lifetime warranty on stainless steel body part
UPC
UPC#
847373001209
