Features
FLEX-ROLL™ OVEN RACKS
Oven racks for smooth operation in self-clean ranges.
MOTO-ROTIS™ MOTORIZED ROTISSERIE SYSTEM
Outdoor BBQ technology comes indoors. The industry’s first motorized rotisserie system allows you to broil mouth-watering, evenly-cooked meals at up to 550°F. Rotisserie split rod and prongs are made of heavy-duty, stainless steel, are built to last and a snap to clean. Basting pan included.
Additional Features
EZ-GLIDES™
Full extension removable drip trays mounted on ball bearing rails.
HYBRID RADIANTS
With ceramic rods encased in stainless steel sheet metal for reduced flare-ups and prolonged life.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
7
Burners/Elements Output

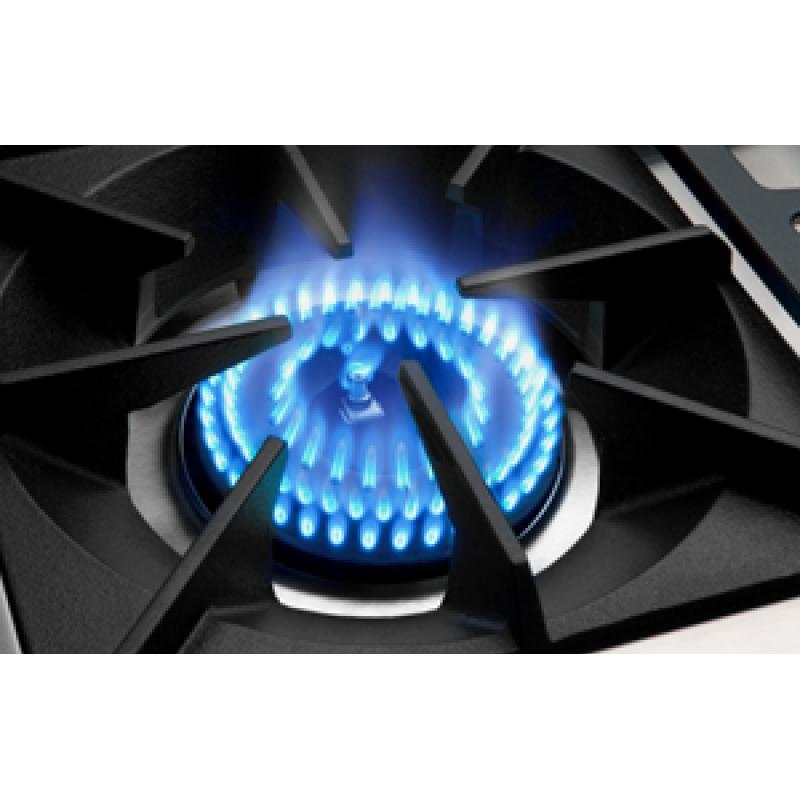

• Five 25,000 BTU open style burners turn down to a True Simmer
• One 8,000 BTU Small Pan Burner turns down to an extra low simmer
• 12 inch wide 18,000 BTU BBQ Grill Burner with Cast Iron Porcelain Coated Grates Hybrid Radiants and Stainless Steel Cover
• One 8,000 BTU Small Pan Burner turns down to an extra low simmer
• 12 inch wide 18,000 BTU BBQ Grill Burner with Cast Iron Porcelain Coated Grates Hybrid Radiants and Stainless Steel Cover
Burners
Open
Other
Grill
Oven
Capacity (cu. ft.)
• Large Oven: 4.6 cu. ft.
• Small Oven: 2.0 cu. ft.
• Small Oven: 2.0 cu. ft.
Number of Ovens
Double
Programs
• Bake (Both Ovens)
• Broil
• Convection Bake (Primary)
• Convection Broil
• Broil
• Convection Bake (Primary)
• Convection Broil
Features
Technologies
• EZ-Glides™
• Stay-Cool™
• Moto-Rotis™
• Flex-Roll™
• Stay-Cool™
• Moto-Rotis™
• Flex-Roll™
Convection
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Extra Large Oven Fits Full Size Commercial Cookie Sheets (Primary Oven)
• Infrared Broiler Under Glass (Primary Oven)
• Integrated Moto-rotis Rotisserie System (Primary Oven)
• 5 Rack Positions
• Flex-roll Oven Racks For Smooth Operation
• Height Adjustable Front Levelers
• Height Adjustable Rear Casters For Easy Installation
• Removable Door With Heavy Duty Hinges
• Front Located Gas Shut-off Valve And Electrical Disconnect
• Infrared Broiler Under Glass (Primary Oven)
• Integrated Moto-rotis Rotisserie System (Primary Oven)
• 5 Rack Positions
• Flex-roll Oven Racks For Smooth Operation
• Height Adjustable Front Levelers
• Height Adjustable Rear Casters For Easy Installation
• Removable Door With Heavy Duty Hinges
• Front Located Gas Shut-off Valve And Electrical Disconnect
Electrical Information
Information
120 V
Dimensions
Class Width
48"
Width
47.87 inch(es) / 121.59 cm
Additional Dimensions
• Large Oven: 27" W X 14" H X 21" D
• Small Oven: 12" W X 14" H X 21" D
• Small Oven: 12" W X 14" H X 21" D
Warranty
Warranty
• 1 Year Warranty Parts and Labor
• 5 Years Limited Part Replacement
• 5 Years Limited Part Replacement
