Features

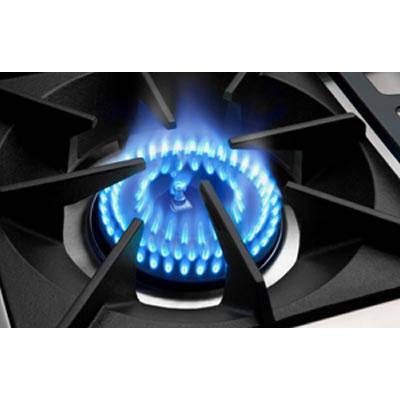

POWER-FLO OPENTOP BURNER 23,000 BTUS/HR

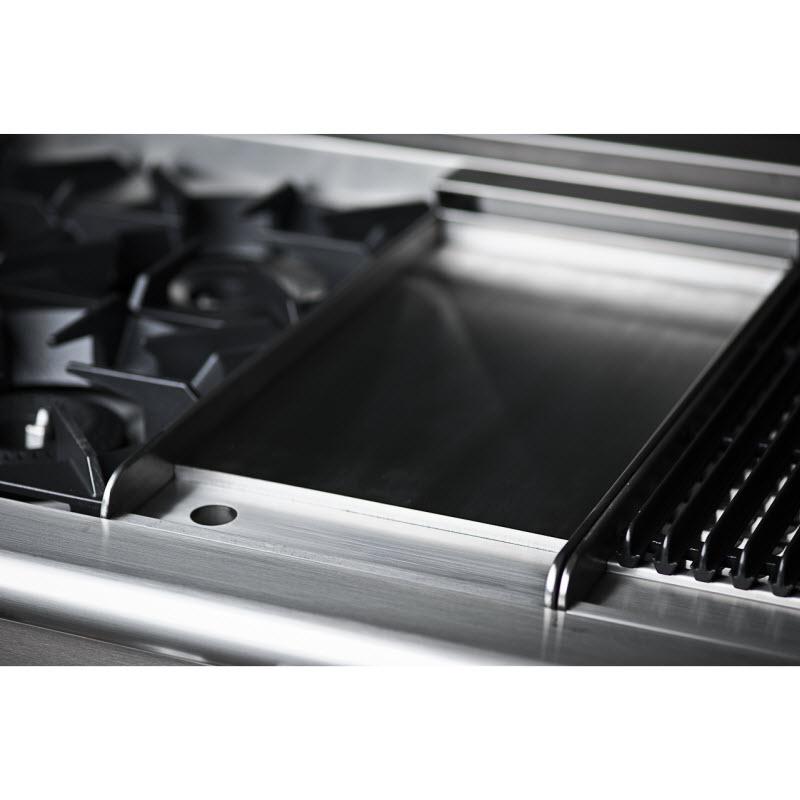

18,000 BTU THERMO-GRIDDLE-PLATE™
3/8" thick 12” width stainless steel thermostatically controlled.
FLEX-ROLL™ OVEN RACKS
Oven racks for smooth operation in self-clean ranges.

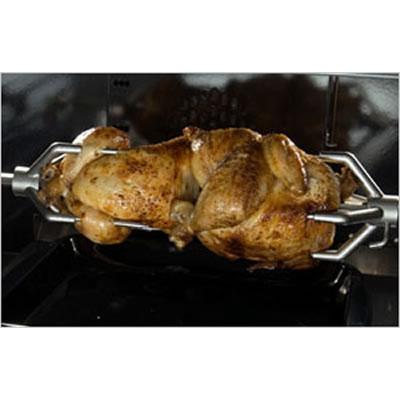

MOTO-ROTIS™ MOTORIZED ROTISSERIE SYSTEM
Outdoor BBQ technology comes indoors. The industry’s first motorized rotisserie system allows you to broil mouth-watering, evenly-cooked meals at up to 550°F. Rotisserie split rod and prongs are made of heavy-duty, stainless steel, are built to last and a snap to clean. Basting pan included.
Additional Features

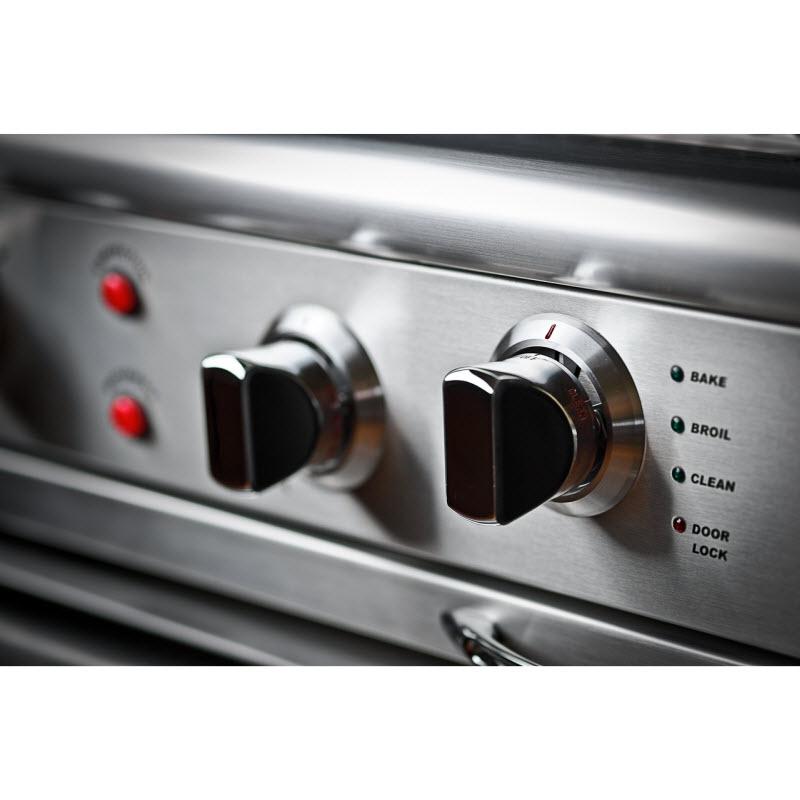

STAY-COOL™ KNOBS
Die cast chrome-plated metal knobs with black trims.
EZ-GLIDES™
Full extension removable drip trays mounted on ball bearing rails.
Specifications
General
Series Name
CULINARIAN
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
9
Burners/Elements Output
• Seven 25, 000 BTU burners turn down to a True Simmer
• One 8,000 BTU Small Pan Burner turns down to an extra low simmer
• One 18,000 BTU Stainless Steel Griddle Plate
• One 8,000 BTU Small Pan Burner turns down to an extra low simmer
• One 18,000 BTU Stainless Steel Griddle Plate
Burner/Element Size
12" Thermo-Griddle™
Burners
Open
Oven
Capacity (cu. ft.)
• Large Oven: 4.9
• Small Oven: 3.1
• Total Capacity : 8.0
• Small Oven: 3.1
• Total Capacity : 8.0
Number of Ovens
Double
Features
Control Lock
No
Convection
Yes
Delay Bake/Start
No
Digital Temperature Display
No
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Self-Cleaning Convection oven (Large Oven)
• All burner have auto ignition and re-ignition
• BAKE (Both Ovens)
• CONVECTION BAKE (Both Ovens)
• BROIL CONVECTION BROIL
• Large Oven: 30,000 BTU oven burner for uniform baking
• Large Oven: 18,000 BTU Infrared Broil Burner Under Glass with Inconel Mesh construction
• Small Oven: 22,000 BTU oven burner for uniform baking
• Moto-Rotis integrated Rotisserie System
• Titanium speck porcelain oven interior (Both Ovens)
• 5 Rack Positions w/ 3 Heavy Duty Racks provided (Both Ovens)
• Broil pan provided
• 1-1/4" diameter professional-style handle (Both Ovens)
• Heavy-duty oven door hinges (Both Ovens)
• Extra large viewing window (Both Ovens)
• Bright 40W oven lights (Both Ovens)
• Small Oven: Manual clean
• All burner have auto ignition and re-ignition
• BAKE (Both Ovens)
• CONVECTION BAKE (Both Ovens)
• BROIL CONVECTION BROIL
• Large Oven: 30,000 BTU oven burner for uniform baking
• Large Oven: 18,000 BTU Infrared Broil Burner Under Glass with Inconel Mesh construction
• Small Oven: 22,000 BTU oven burner for uniform baking
• Moto-Rotis integrated Rotisserie System
• Titanium speck porcelain oven interior (Both Ovens)
• 5 Rack Positions w/ 3 Heavy Duty Racks provided (Both Ovens)
• Broil pan provided
• 1-1/4" diameter professional-style handle (Both Ovens)
• Heavy-duty oven door hinges (Both Ovens)
• Extra large viewing window (Both Ovens)
• Bright 40W oven lights (Both Ovens)
• Small Oven: Manual clean
Drawer Features
Indicator Light
No
Baking
No
Broiler
No
Storage
No
Warming
No
Electrical Information
Information
120
Dimensions
Class Width
48"
Width
47.87 inch(es) / 121.6 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
28.37 inch(es) / 72.07 cm
Weight
799.99 lb(s) / 362.87 kg
Additional Dimensions
• Large Oven: 4.9 cu. ft. oven cavity – 27" W X 14" H X 21" D
• Small Oven: Large 3.1 cu. ft. oven cavity – 18" W X 14" H X 21" D
• Shipping Dimensions: 52" W x 48" H x 34" D
• Product Dimensions: 47-7/8" W x 36" H x 28-3/8" D
• Cutout Dimension: 48-1/8"W X 24"D (std)
• Small Oven: Large 3.1 cu. ft. oven cavity – 18" W X 14" H X 21" D
• Shipping Dimensions: 52" W x 48" H x 34" D
• Product Dimensions: 47-7/8" W x 36" H x 28-3/8" D
• Cutout Dimension: 48-1/8"W X 24"D (std)
Warranty
Warranty
• 1 Year full parts and labor covers entire product. (Light bulbs covered for 60 days after installation)
• 5 Years limited part replacement warranty. Covers part replacement due to malfunction during normal operation
• 5 Years limited part replacement warranty. Covers part replacement due to malfunction during normal operation
