Features
THERMO-GRIDDLE™
Solid stainless steel thermostatically controlled griddle plate gives you precise control over the griddle area.
Specifications
General
Series Name
PRECESION
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
5
Burners/Elements Output
• 4x Sealed Burners 19,000 BTU
• 1X Thermo-Griddle 18,000 BTU
• 1X Thermo-Griddle 18,000 BTU
Burner/Element Size
12" Thermo-Griddle
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
4.9
Number of Ovens
Single
Features
Control Lock
No
Convection
Yes
Delay Bake/Start
No
Digital Temperature Display
No
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
No
Additional Information
• Sealed Burners with heavy duty porcelain coated cast iron platform grates
• All burners adjust down to a delicate constant simmer
• All burner have auto ignition and re-ignition

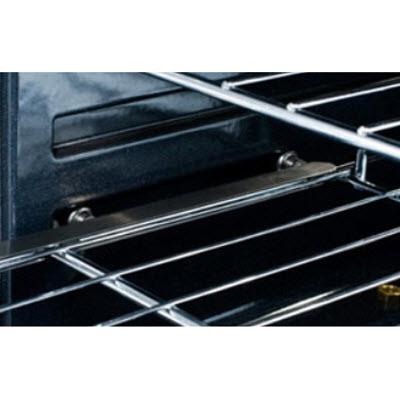

• 5 rack positions with two racks provided per oven
• OVEN MODES : BAKE, BROIL, CONVECTION BAKE
• Flush oven bottom
• Infrared Broil burner for quick searing and grilling
• EZ-Glides. Full extension removable drip trays mounted on ball bearing rails.
• Stay-Cool Die Cast Chrome plated metal knobs with Black Trim (Cabernet trim available as an accessory)
• Height adjustable front and rear leveler legs
• OTHER OVEN USES : Defrost, preheat, warm, slow cooking, normal thawing, advanced thawing
• All burners adjust down to a delicate constant simmer
• All burner have auto ignition and re-ignition
• 5 rack positions with two racks provided per oven
• OVEN MODES : BAKE, BROIL, CONVECTION BAKE
• Flush oven bottom
• Infrared Broil burner for quick searing and grilling
• EZ-Glides. Full extension removable drip trays mounted on ball bearing rails.
• Stay-Cool Die Cast Chrome plated metal knobs with Black Trim (Cabernet trim available as an accessory)
• Height adjustable front and rear leveler legs
• OTHER OVEN USES : Defrost, preheat, warm, slow cooking, normal thawing, advanced thawing
Drawer Features
Indicator Light
No
Baking
No
Broiler
No
Storage
No
Warming
No
Electrical Information
Information
120
Certifications and Approvals
Sabbath/Star-K
No
Dimensions
Class Width
36"
Width
35.87 inch(es) / 91.12 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
28.5 inch(es) / 72.39 cm
Additional Dimensions
• Oven size: 27"W X 21"D X 15H
• For more information please refer to dimension guide
• For more information please refer to dimension guide
Warranty
Warranty
• ONE (1) year full parts and labor covers entire product. (Light bulbs covered for 60 days after installation)
• FIVE (5) years limited part replacement warranty. covers part replacement, as noted below, due to malfunction during normal operation
• FIVE (5) years limited part replacement warranty. covers part replacement, as noted below, due to malfunction during normal operation
