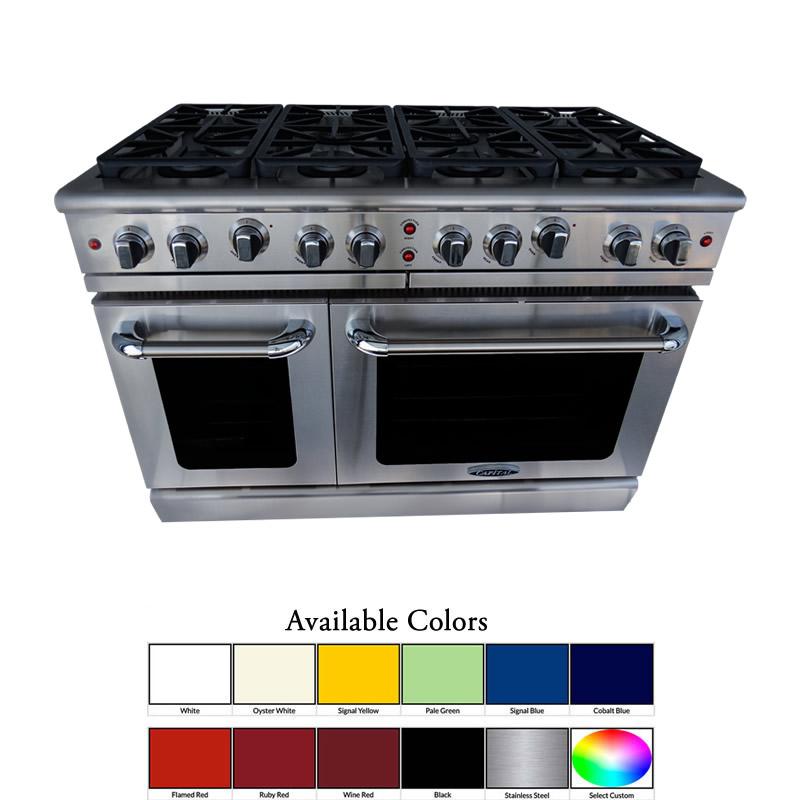

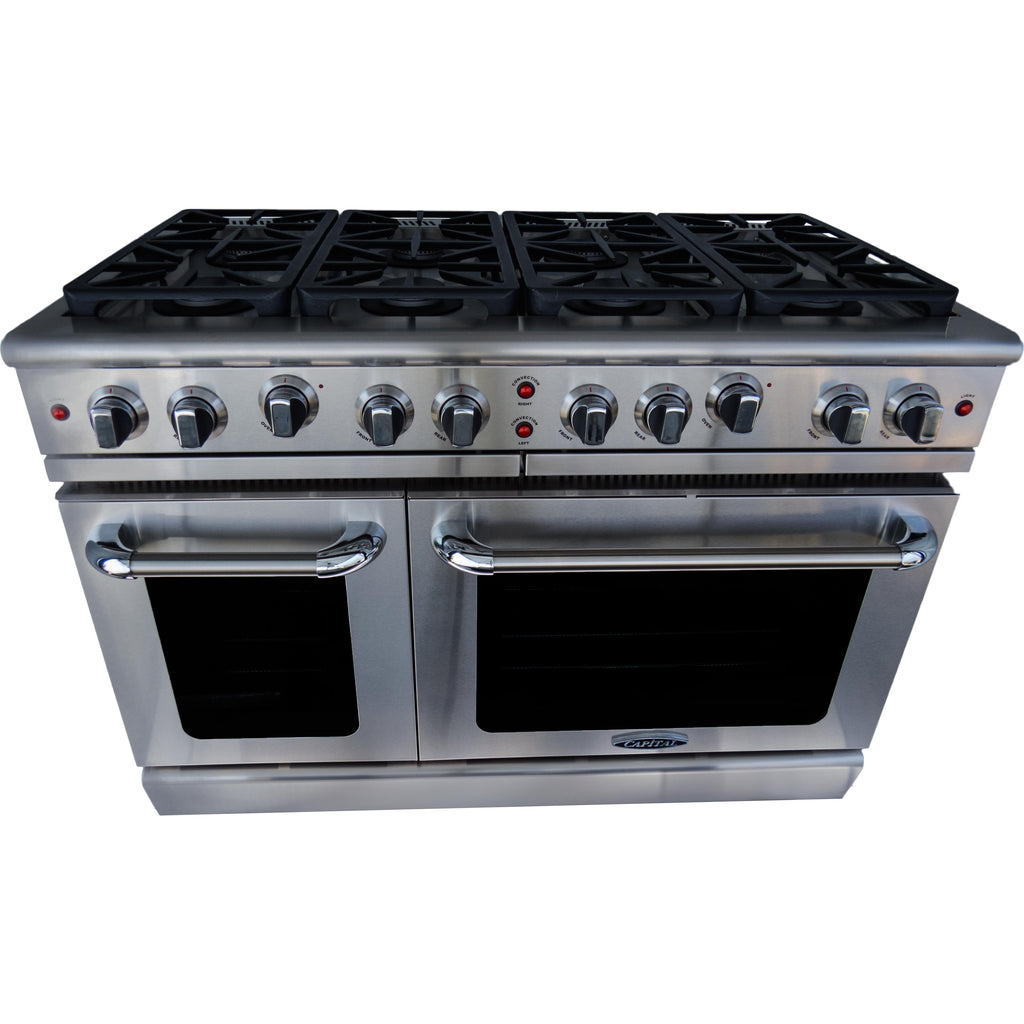

Features
STAY-COOL™ KNOBS
Die cast chrome-plated metal knobs with black trims.
HEAVY-DUTY CONTINUOUS GRATES
Heavy-duty continuous grates for easy mobility on the rangetop.
Specifications
General
Series Name
PRECISION
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
8
Burners/Elements Output
19,000 BTU Power-Flo™ Sealed burners turn down to a true simmer
Burners
Sealed
Oven
Capacity (cu. ft.)
• Large Oven : 4.9
• Small Oven : 2.7
• Total Capacity : 7.6
• Small Oven : 2.7
• Total Capacity : 7.6
Number of Ovens
Double
Features
Convection
Yes
Digital Temperature Display
No
Downdraft Ventilation
No
Oven Light
Yes
Additional Information
• BAKE (Both Ovens)
• BROIL (Primary Oven only)
• CONVECTION BAKE (Both Ovens)
• Primary Oven fits Full Size Commercial Cookie Sheet
• Companion Oven fits Commercial Half Sheets
• Flush oven bottoms for extra capacity (both ovens)
• Infrared Broiler (Primary Oven only)
• 5 rack positions
• Compatible with Rear Floor Mount Gas Line Input
• Stay-Cool™ die cast, chrome plated metal knobs
• Auto-ignition/re-ignition on all burners
• Smooth-top continuous cast iron grates with easy to clean matte porcelain finish
• 30,000 BTU oven burner for uniform baking (Primary oven)
• 18,000 BTU Infrared Broil burner with Inconel Mesh (Primary oven)
• 15,000 BTU oven burner for uniform baking (Companion oven)
• BROIL (Primary Oven only)
• CONVECTION BAKE (Both Ovens)
• Primary Oven fits Full Size Commercial Cookie Sheet
• Companion Oven fits Commercial Half Sheets
• Flush oven bottoms for extra capacity (both ovens)
• Infrared Broiler (Primary Oven only)
• 5 rack positions
• Compatible with Rear Floor Mount Gas Line Input
• Stay-Cool™ die cast, chrome plated metal knobs
• Auto-ignition/re-ignition on all burners
• Smooth-top continuous cast iron grates with easy to clean matte porcelain finish
• 30,000 BTU oven burner for uniform baking (Primary oven)
• 18,000 BTU Infrared Broil burner with Inconel Mesh (Primary oven)
• 15,000 BTU oven burner for uniform baking (Companion oven)
Electrical Information
Information
120
Dimensions
Class Width
48"
Width
47.88 inch(es) / 121.62 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
28.5 inch(es) / 72.39 cm
Additional Dimensions
• Companion Oven Dimensions: 15" W x 15" H x 21"
• Cutout Dimension: 48-1/8"W X 24"D (std)
• Cutout Dimension: 48-1/8"W X 24"D (std)
Shipping Dimensions
Weight
600.01 lb(s) / 272.16 kg
Warranty
Warranty
• ONE (1) Year full parts and labor covers entire product with the exception of painted or decorative parts listed below*. (Light bulbs covered for 60 days after installation.) Standard shipping only. Expedited shipping will be at customers' expense
• *Painted and decorative parts will be warranted for 90 days from date of original purchase. Any damages or defects must be reported within this timeframe. Replacement painted parts may have slight color variations from the original parts due to normal manufacturing variables
• FIVE (5) Years limited part replacement warranty. Covers part replacement, as noted below due to malfunction during normal operation
• *Painted and decorative parts will be warranted for 90 days from date of original purchase. Any damages or defects must be reported within this timeframe. Replacement painted parts may have slight color variations from the original parts due to normal manufacturing variables
• FIVE (5) Years limited part replacement warranty. Covers part replacement, as noted below due to malfunction during normal operation
