Specifications
General
Series Name
Integrated
Type
Upright
Style
Built-In
Counter-Depth
No
Color

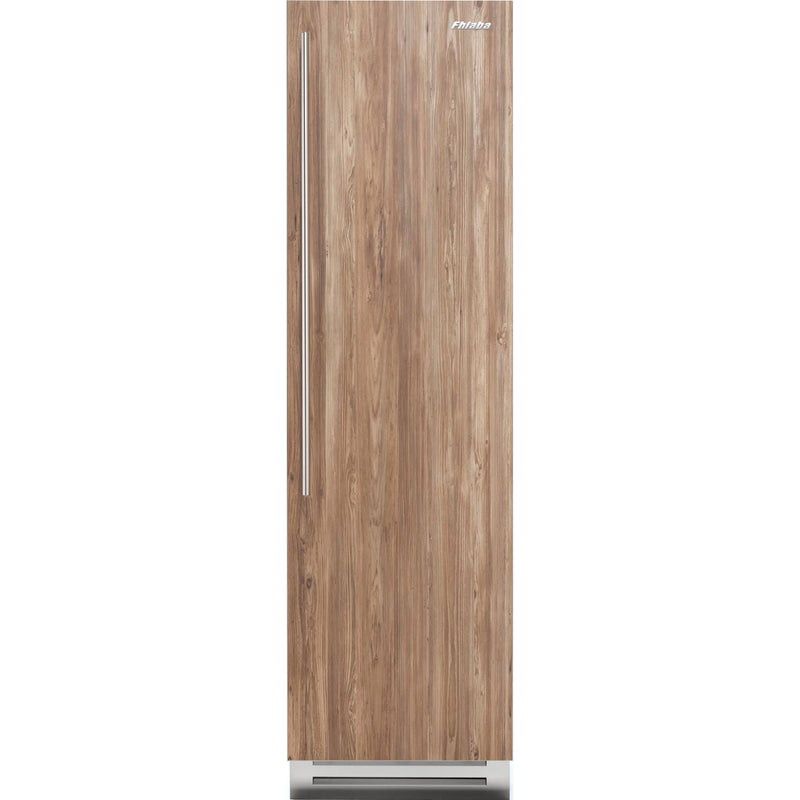

Panel Ready
Total Capacity
12.67 cu. ft.
Size Range
16 Cu.Ft. and Below
Reversible Door
No
Door Hinge
Right
Features
Technologies
• Provent ventilation system
• Equilance: dual-movement patented hinge with self-balancing movement
• Smart touch TFT display
• Total no frost 100% automatic system
• Equilance: dual-movement patented hinge with self-balancing movement
• Smart touch TFT display
• Total no frost 100% automatic system
Defrost System / Frost Free
Yes
Digital Temperature Display
Yes
Lighting
Yes
Alarm
Yes
Additional Information
• Made in Italy
• Aisi 304 stainless steel body
• Aluminum interior finish
• Antibacterial stainless steel interior
• Optiview: multi-LED light array
• Soft close door and drawers in all compartments
• Acoustic and visual signals
• Variable speed compressors
• One independent climatic zone
• Tempered glass shelves with aluminum profiles
• Crisper drawers
• 2 Shelves
• 2 Door bins
• 4 Bottom drawers
• Full Extension drawers 90° door opening
• Power Failure Function
• Power Cord Length (in): 78" 3/4
• Plug Type: 3-prong (15 Amp)
• Compartment 1/Upper temperature (°F): from -13 to -23
• Aisi 304 stainless steel body
• Aluminum interior finish
• Antibacterial stainless steel interior
• Optiview: multi-LED light array
• Soft close door and drawers in all compartments
• Acoustic and visual signals
• Variable speed compressors
• One independent climatic zone
• Tempered glass shelves with aluminum profiles
• Crisper drawers
• 2 Shelves
• 2 Door bins
• 4 Bottom drawers
• Full Extension drawers 90° door opening
• Power Failure Function
• Power Cord Length (in): 78" 3/4
• Plug Type: 3-prong (15 Amp)
• Compartment 1/Upper temperature (°F): from -13 to -23
Ice and Water
Ice Machine
Yes
Certifications and Approvals
Sabbath Mode
Yes
Additional Certifications and Approvals
2.5 A
115 V
60 Hz
Dimensions
Width
24 inch(es) / 60.96 cm
Height (With Hinge)
83.5 inch(es) / 212.09 cm
Depth (Without Handles)
24 inch(es) / 60.96 cm
Weight
311.01 lb(s) / 141.07 kg
Additional Dimensions
• Adjustable feet height (in): 1" (25 mm)
• Wall cavity height (in): 84" (2134 mm)
• Wall cavity width (in): 24" (610 mm)
• Wall cavity depth (in): min 24" (610 mm) + panel thickness for flush install
• Wall cavity height (in): 84" (2134 mm)
• Wall cavity width (in): 24" (610 mm)
• Wall cavity depth (in): min 24" (610 mm) + panel thickness for flush install
Shipping Dimensions
Weight
355.01 lb(s) / 161.03 kg
