Features
EQUILANCE™ HINGES
Patented hinge system with dual pivoting movement and self balancing roller will allow for as little as a 1/16” tolerance and can hold a total weight up to 220 lbs (100 kg).
OPTIVIEW

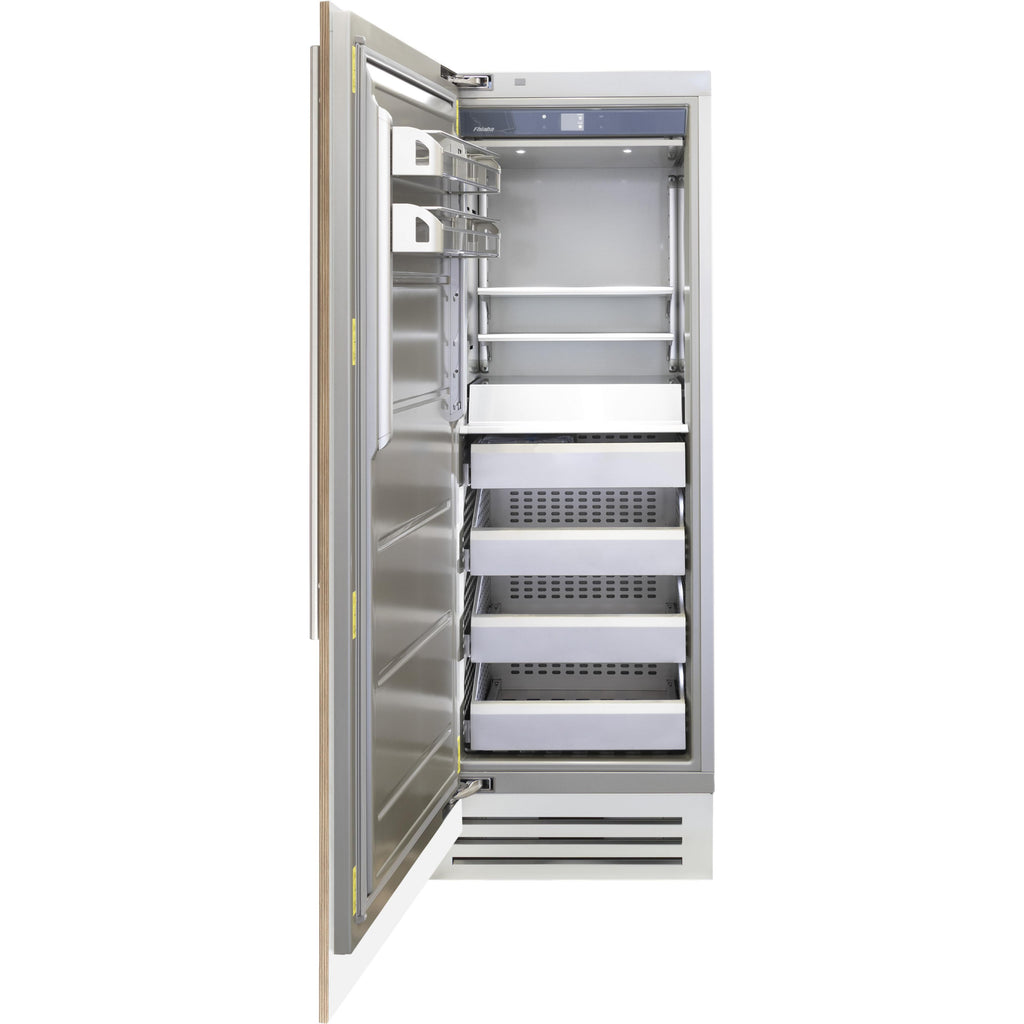

OptiView lighting system uses modern LED technology to ensure an optimal view of the interiors. Two LED arrays light the refrigerator compartment from above, while individual spot lights illuminatedirectly distinct areas of the fridge compartment, Fresco and TriMode drawers.
PROVENT
Correct food preservation conditions and maximum energetic functionality are guaranteed also by the ProVent ventilation system, which provides even distribution of cold air by laterally circulating the airflow. It is therefore possible to maintain a uniform temperature throughout the compartments, allowing better food preservation conditions.
TOTALNOFROST
Fhiaba's TotalNoFrost is a 100% automatic system that eliminates the need for Fridge, Fresco and Freezer defrosting.
Specifications
General
Series Name
Integrated
Type
Upright
Style
Built-In
Color
Panel Ready
Total Capacity
16.87 cu. ft.
Size Range
16 Cu.Ft. and Below
Reversible Door
No
Door Hinge
Left
Features
Technologies
• Provent ventilation system
• Equilance: dual-movement patented hinge with self-balancing movement
• Smart touch TFT display
• Total no frost 100% automatic system
• Equilance: dual-movement patented hinge with self-balancing movement
• Smart touch TFT display
• Total no frost 100% automatic system
Defrost System / Frost Free
Yes
Digital Temperature Display
Yes
Lighting
Yes
Alarm
Yes
Additional Information
• Made in Italy
• Aisi 304 stainless steel body
• Aluminum interior finish
• Antibacterial stainless steel interior
• Optiview: multi-LED light array (top and side interior)
• Soft close door and drawers in all compartments
• Acoustic and visual signals
• Variable speed compressors
• One independent climatic zone
• Tempered glass shelves with aluminium profiles
• Crisper drawers for multi-use preservation solution; Antibacterial stainless steel interior & rounded corners promoting hygiene and easy cleaning
• 2 Shelves
• 2 Door bins
• 4 Bottom drawers
• Full Extension drawers 90° door opening
• Door Open Alarms
• Power Failure Function
• Power Cord Length (in): 78" 3/4
• Plug Type: 3-prong (15 Amp)
• Compartment 1 / Upper temperature (°F): from -13 to -23
• Aisi 304 stainless steel body
• Aluminum interior finish
• Antibacterial stainless steel interior
• Optiview: multi-LED light array (top and side interior)
• Soft close door and drawers in all compartments
• Acoustic and visual signals
• Variable speed compressors
• One independent climatic zone
• Tempered glass shelves with aluminium profiles
• Crisper drawers for multi-use preservation solution; Antibacterial stainless steel interior & rounded corners promoting hygiene and easy cleaning
• 2 Shelves
• 2 Door bins
• 4 Bottom drawers
• Full Extension drawers 90° door opening
• Door Open Alarms
• Power Failure Function
• Power Cord Length (in): 78" 3/4
• Plug Type: 3-prong (15 Amp)
• Compartment 1 / Upper temperature (°F): from -13 to -23
Ice and Water
Ice Machine
Yes
Additional Ice and Water Information
Ice maker with water filter
Electrical Information
Information
• 2.5 A
• 115 V
• 60 Hz V
• 115 V
• 60 Hz V
Certifications and Approvals
Sabbath Mode
Yes
Dimensions
Width
30 inch(es) / 76.2 cm
Height (With Hinge)
83.5 inch(es) / 212.09 cm
Depth (Without Handles)
24 inch(es) / 60.96 cm
Weight
340 lb(s) / 154.22 kg
Additional Dimensions
• Adjustable feet height (in): 1" (25 mm)
• Wall cavity height (in): 84" (2134 mm)
• Wall cavity width (in): 30" (762 mm)
• Wall cavity depth (in): min 24" (610 mm) + panel thickness for flush install
• Wall cavity height (in): 84" (2134 mm)
• Wall cavity width (in): 30" (762 mm)
• Wall cavity depth (in): min 24" (610 mm) + panel thickness for flush install
Shipping Dimensions
Weight
386.01 lb(s) / 175.09 kg
