Features
WASH ONE, STACK ANOTHER (12")
Wash one, stack another. Independent drawers run separately or together, fitting plates up to 12" high.
CAPACITIVE TOUCH CONTROLS
Capacitive touch controls, refined styling and SmartHQ™ connectivity bring intuitive convenience to everyday dish care.
VERSATILE WASH CYCLES AND FAN-ASSISTED DRYING
Versatile wash cycles and modifiers ensure clean results, while fan-assisted drying helps leave dishes ready to use.

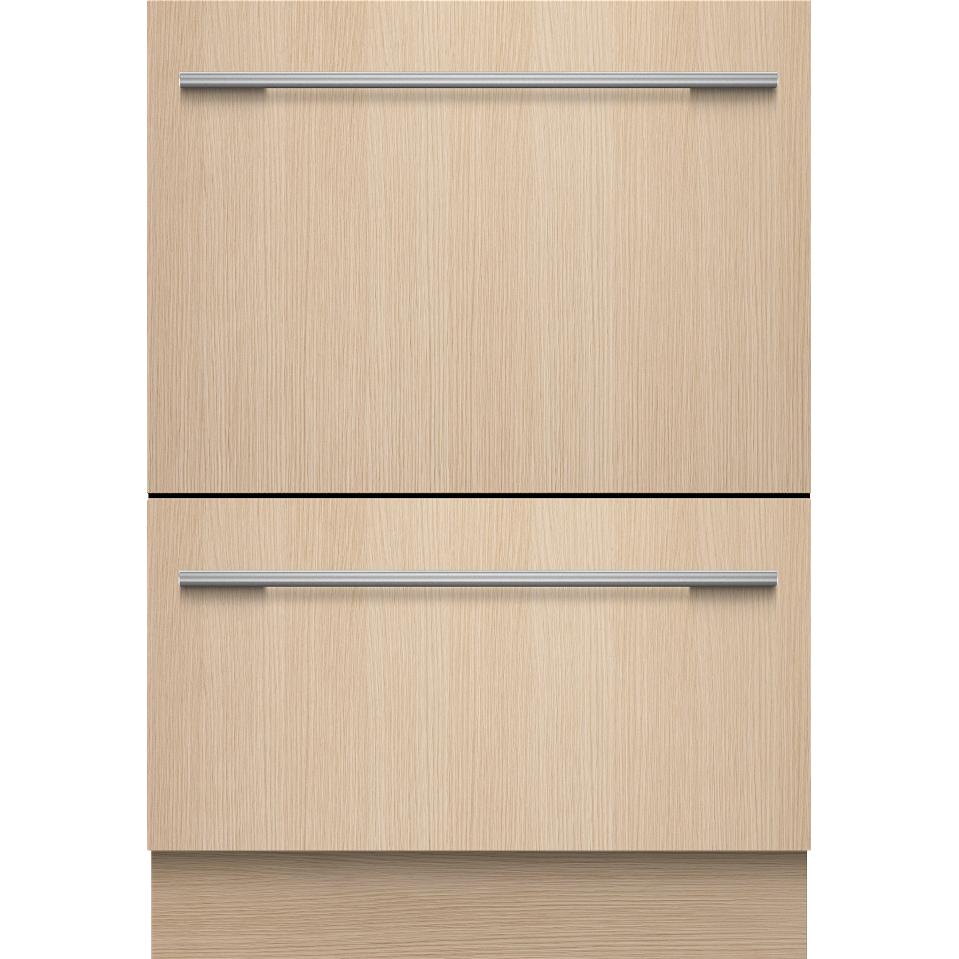

PANEL-READY DESIGN
Panel-ready design allows seamless integration with your kitchen cabinetry, or pair with a stainless steel door panel.
Specifications
General
Series Name
Series 9 Integrated
Type
Built-In
Color
Panel Ready
Manufacturer Color
Panel Ready
Place Settings
14
Silence Rating
43 dB
Cycle Information
Number of Cycles
6
Wash Cycles
• Eco — for normally soiled dishes (default)
• Heavy — for heavily soiled pots, pans and dishes
• Medium — for quite heavily soiled dishes or food left overnight
• Light — for very lightly soiled dishes
• 60 Min — for quite heavily soiled dishes, no drying
• Hygiene — raises the rinse temperature to 158°F to sanitize
• Heavy — for heavily soiled pots, pans and dishes
• Medium — for quite heavily soiled dishes or food left overnight
• Light — for very lightly soiled dishes
• 60 Min — for quite heavily soiled dishes, no drying
• Hygiene — raises the rinse temperature to 158°F to sanitize
Options
• Dry+ — increases the final rinse temperature and the length of the drying phase
• Gentle — lowers the water temperature and pressure
• Intensive — increases the water pressure and the length of the cycle
• Gentle — lowers the water temperature and pressure
• Intensive — increases the water pressure and the length of the cycle
Features
Technologies
• DishDrawer™ — two independent drawers that run separately or together
• SmartDrive™ Technology
• Variable Wash Pressure Technology
• SmartHQ™ App — remote operation, alerts and notifications, energy consumption monitoring and software updates
• SmartDrive™ Technology
• Variable Wash Pressure Technology
• SmartHQ™ App — remote operation, alerts and notifications, energy consumption monitoring and software updates
Delay Start Information
Energy saving delay start option of up to 12 hours
Delay Start
Yes
Control Lock
Yes
Filtration System
Yes
Silverware Basket
Yes
Wi-Fi
Yes
Additional Information
• Integrated Tall Double DishDrawer™ dishwasher — 2 independent drawers that run separately or together, with extra height for larger cookware
• Panel-ready — door panels and handles not included; stainless steel panels and handle kits sold separately
• Black toe kick supplied; custom toe kick optional
• Door installation adjustment system — side to side, up and down and tilt adjustment of the custom panels
• 7 place settings per drawer
• Accommodates round plates up to 12.25" (top drawer) and 11" (bottom drawer)
• Adjustable height, foldable cup racks
• Fold down tines
• Pitch adjustable tines
• Wine glass supports
• Fan assisted drying
• Drawer Dry — a low-power fan runs after each wash cycle to dry the appliance
• Three-stage filtration system
• Flood protection
• Flow through detergent dispenser
• Motor type: BLDC
• Soft close drawer
• Black touch concealed interface
• Capacitive touch controls
• Electronic fault/diagnostic indicator
• End of cycle beeps
• Knock to pause
• Rinse aid indicator light
• Can be installed at counter height for easy access with minimal bending
• Inlet water temperature: 140°F
• Water pressure: 30 kPa - 1000 kPa
• Water supply: 3/8" to suit male compression fitting
• Panel-ready — door panels and handles not included; stainless steel panels and handle kits sold separately
• Black toe kick supplied; custom toe kick optional
• Door installation adjustment system — side to side, up and down and tilt adjustment of the custom panels
• 7 place settings per drawer
• Accommodates round plates up to 12.25" (top drawer) and 11" (bottom drawer)
• Adjustable height, foldable cup racks
• Fold down tines
• Pitch adjustable tines
• Wine glass supports
• Fan assisted drying
• Drawer Dry — a low-power fan runs after each wash cycle to dry the appliance
• Three-stage filtration system
• Flood protection
• Flow through detergent dispenser
• Motor type: BLDC
• Soft close drawer
• Black touch concealed interface
• Capacitive touch controls
• Electronic fault/diagnostic indicator
• End of cycle beeps
• Knock to pause
• Rinse aid indicator light
• Can be installed at counter height for easy access with minimal bending
• Inlet water temperature: 140°F
• Water pressure: 30 kPa - 1000 kPa
• Water supply: 3/8" to suit male compression fitting
Electrical Information
Information
• Supply Voltage: 110 - 120 V
• Supply Frequency: 60 Hz
• Amperage: 10 A (dedicated circuit)
• Rated Power: 1200 W
• Supply Frequency: 60 Hz
• Amperage: 10 A (dedicated circuit)
• Rated Power: 1200 W
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
Accessories
Included
• Cutlery Basket
• Kickstrip
• Kickstrip
Optional
• Stainless Steel Door Panel (ADDD24DTPX)
• Contemporary Brushed Black Handle Kit (AHD7DDDW24B)
• Contemporary Brushed Silver Handle Kit (AHD7DDDW24S)
• Minimal Black Handle Kit (AHM1DDDW24B)
• Minimal Grey Handle Kit (AHM1DDDW24G)
• Professional Round Handle Kit (AHP3-DWDD-SX)
• Professional Round Flush Handle Kit, Brass Off-Stands (AHP3DDDW24BA)
• Professional Round Flush Handle Kit, Dark Copper Off-Stands (AHP3DDDW24DC)
• Contemporary Brushed Black Handle Kit (AHD7DDDW24B)
• Contemporary Brushed Silver Handle Kit (AHD7DDDW24S)
• Minimal Black Handle Kit (AHM1DDDW24B)
• Minimal Grey Handle Kit (AHM1DDDW24G)
• Professional Round Handle Kit (AHP3-DWDD-SX)
• Professional Round Flush Handle Kit, Brass Off-Stands (AHP3DDDW24BA)
• Professional Round Flush Handle Kit, Dark Copper Off-Stands (AHP3DDDW24DC)
Dimensions
Class Width
24"
Width
23.56 inch(es) / 59.84 cm
Height (Min.)
34 inch(es) / 86.36 cm
Depth (Without Handle)
21.75 inch(es) / 55.25 cm
Weight
130.01 lb(s) / 58.97 kg
Additional Dimensions
• Height Range: 34 - 36.38 in, depending on the levelling feet
• Toe Kick Height: 2 - 6.31 in
• Cavity Minimum Height: 34.13 - 36.5 in
• Cavity Width: 23.63 - 24.03 in
• Cavity Minimum Depth: 22.81 in (with 3/4 in door panels)
• Custom Top Panel Minimum Height: 17.38 in
• Custom Bottom Panel Minimum Height: 12.25 in
• Minimum Gap Between Drawer Panels: 0.31 in
• Minimum Panel Width: 23.44 in
• Custom Panel Thickness: 0.63 - 1 in
• Custom Panel Toe Kick Depth: 1.56 - 4 in
• Maximum Bottom Panel Lower Extension: 2 in
• Toe Kick Height: 2 - 6.31 in
• Cavity Minimum Height: 34.13 - 36.5 in
• Cavity Width: 23.63 - 24.03 in
• Cavity Minimum Depth: 22.81 in (with 3/4 in door panels)
• Custom Top Panel Minimum Height: 17.38 in
• Custom Bottom Panel Minimum Height: 12.25 in
• Minimum Gap Between Drawer Panels: 0.31 in
• Minimum Panel Width: 23.44 in
• Custom Panel Thickness: 0.63 - 1 in
• Custom Panel Toe Kick Depth: 1.56 - 4 in
• Maximum Bottom Panel Lower Extension: 2 in
Shipping Dimensions
Width
27.56 inch(es) / 70 cm
Height
36.88 inch(es) / 93.68 cm
Depth
28.38 inch(es) / 72.09 cm
Weight
147 lb(s) / 66.68 kg
Warranty
Warranty
2-year manufacturer's limited warranty, parts and labour
