Features
FIT GUARANTEE
Replacing a similar wall oven from GE or another brand? GE wall ovens are guaranteed for an exact fit to make replacement easy.

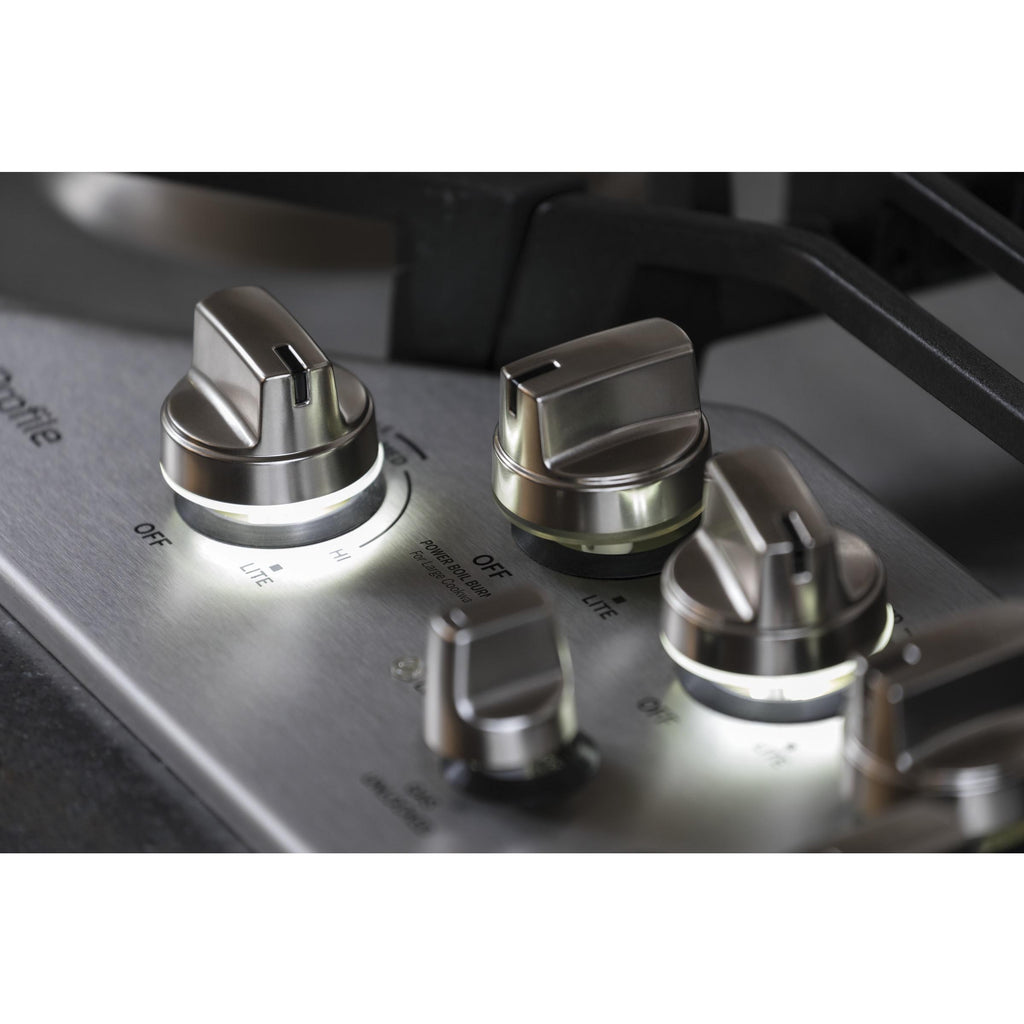

WHITE LED BLACKLIT KNOBS
Indicate when burners are on so you don't forget

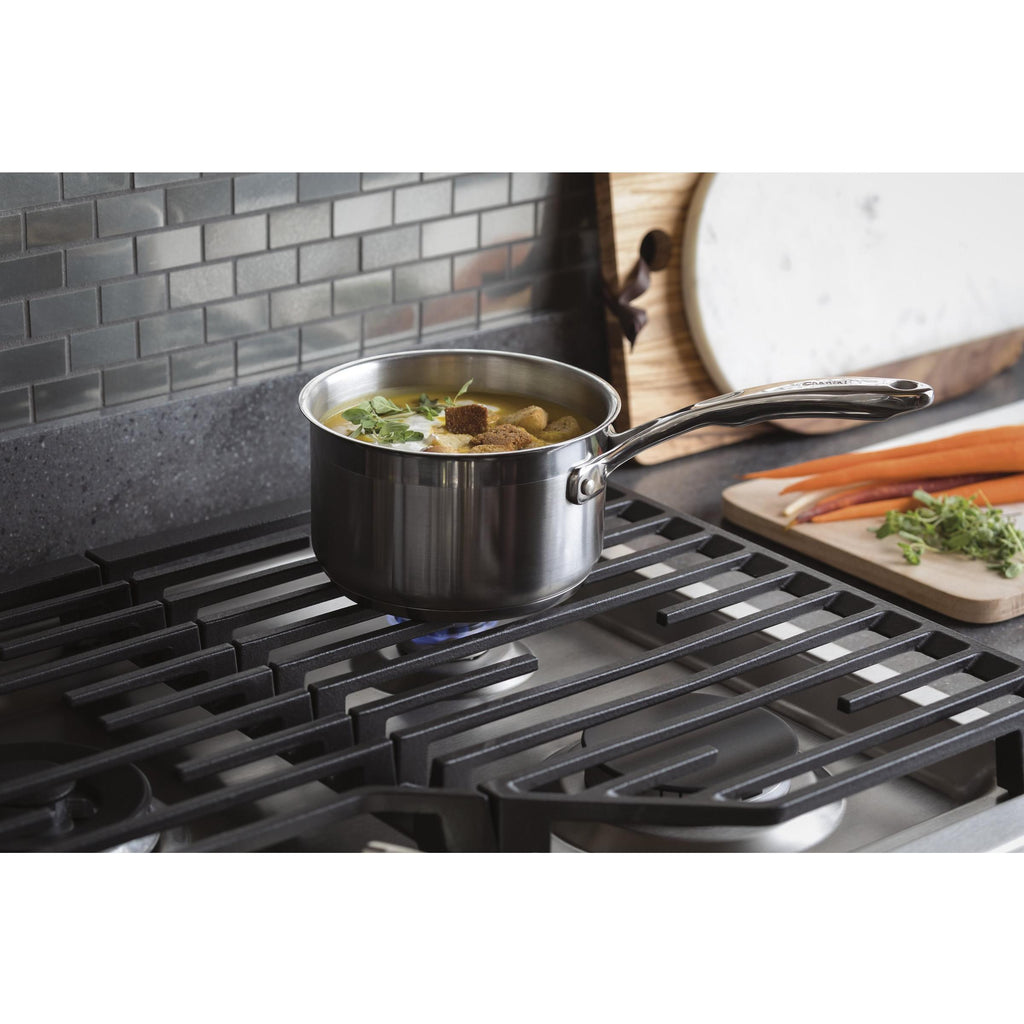

PRECISE SIMMER BURNER
Allows for low, even heat distribution that is ideal for delicate foods and sauces.

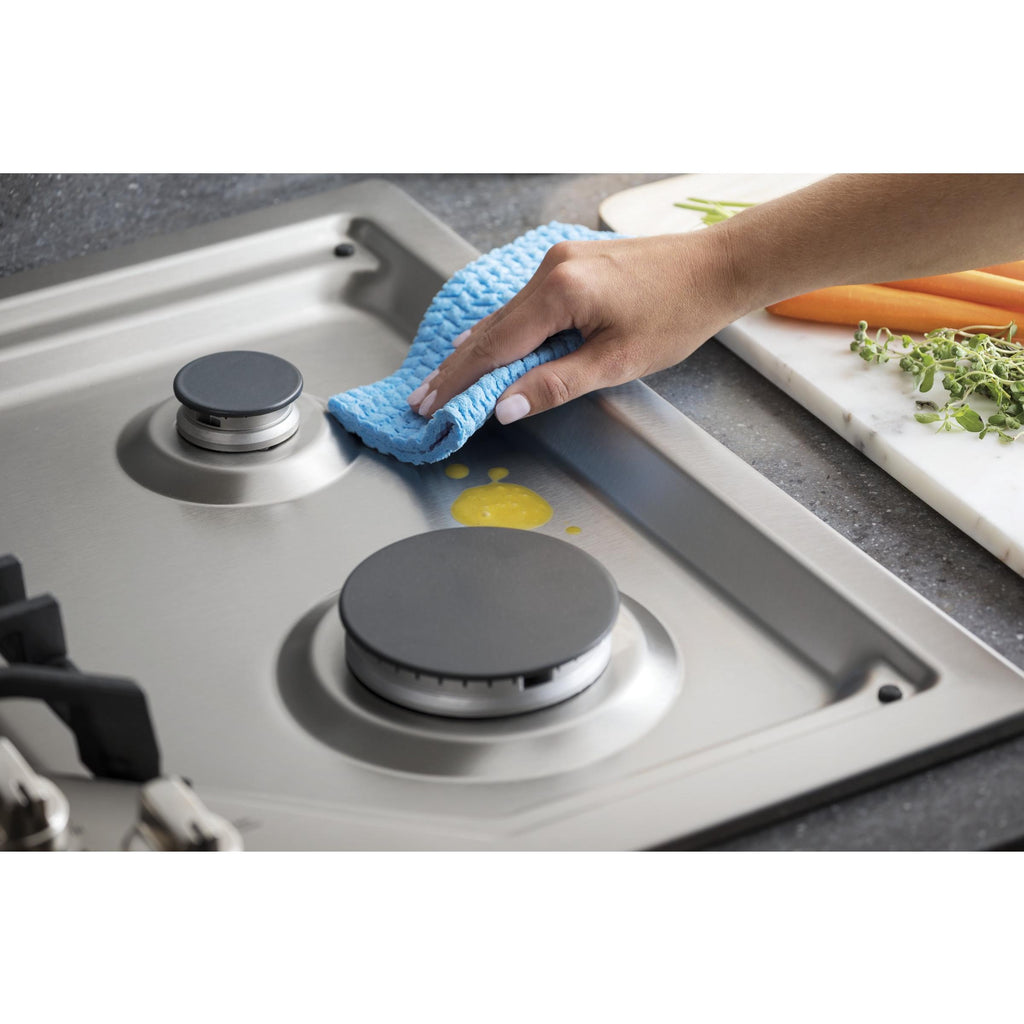

SEALED COOKTOP BURNERS
Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless.
HEAVY-CAST EDGE-TO-EDGE GRATES
Allow for easy movement of pans between burners

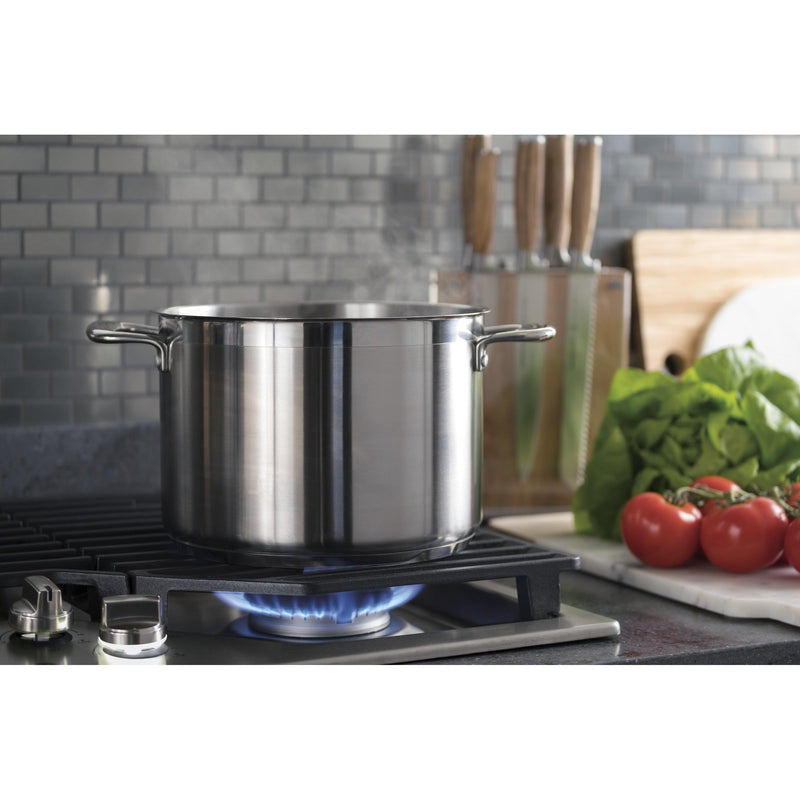

18,000 BTU POWER BOIL BURNER
Boil water fast with intense heat from this 18,000 BTU burner
HEAVY DUTY DISHWASHER SAFE GRATES
Easily and safely clean grates in the dishwasher
MAX BURN SYSTEM
Delivers the same maximum BTU power to propane and natural gas cooktops
CONTROL LOCK CAPABILITY
Protects against unintended activation.
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Center: 18,000 BTU Tri-ring Power Boil
• Right Front: 12,000 BTU
• Left Rear: 9,500 BTU
• Left Front: 9,500 BTU
• Right Rear: 5,000 BTU
• Right Front: 12,000 BTU
• Left Rear: 9,500 BTU
• Left Front: 9,500 BTU
• Right Rear: 5,000 BTU
Burners
Sealed
Surface Features
Deep Stainless Steel
Features
Control Lock
Yes
Additional Information
• Heavy-cast, edge-to-edge grates
• 18,000 BTU tri-ring burner
• Sealed cooktop burners
• Precise Simmer burner
• White LED backlit heavy-duty knobs
• Heavy-duty, dishwasher safe grates
• MAX burner system
• Guaranteed Fit
• 18,000 BTU tri-ring burner
• Sealed cooktop burners
• Precise Simmer burner
• White LED backlit heavy-duty knobs
• Heavy-duty, dishwasher safe grates
• MAX burner system
• Guaranteed Fit
Electrical Information
Information
• 120 V
• 60 Hz
• 5 A
• 60 Hz
• 5 A
Certifications and Approvals
ADA Compliant
Yes
Accessories
Optional
JXGRIDL230: extra-large, integrated cooktop griddle
Dimensions
Class Width
30"
Width
30 inch(es) / 76.20 cm
Height
5.5 inch(es) / 13.97 cm
Depth
21 inch(es) / 53.34 cm
Weight
44 lb(s) / 19.96 kg
Additional Dimensions
Cutout (W x D): 28-1/2" x 19-5/8"
Shipping Dimensions
Width
27.3 inch(es) / 69.34 cm
Height
11 inch(es) / 27.94 cm
Depth
33.5 inch(es) / 85.09 cm
Weight
50 lb(s) / 22.68 kg
Warranty
Warranty
Limited one year parts and labor
UPC
UPC#
084691822844
