Features

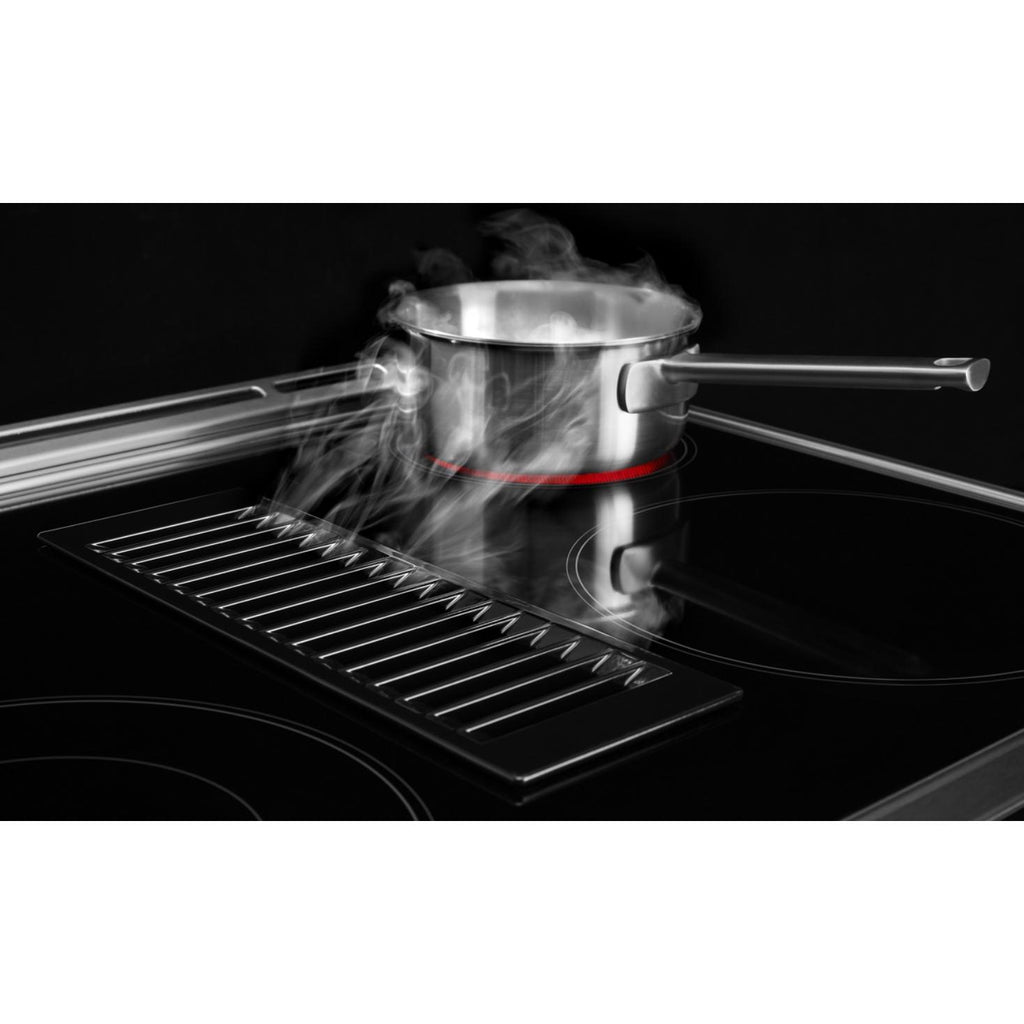

DOWNDRAFT VENTILATION
Developed and refined by Jenn-Air®, downdraft ventilation uses proximity ventilation to capture smoke, steam and odors at the cooking surface. whisking them down and out for a fresher, cleaner kitchen.
Additional Features

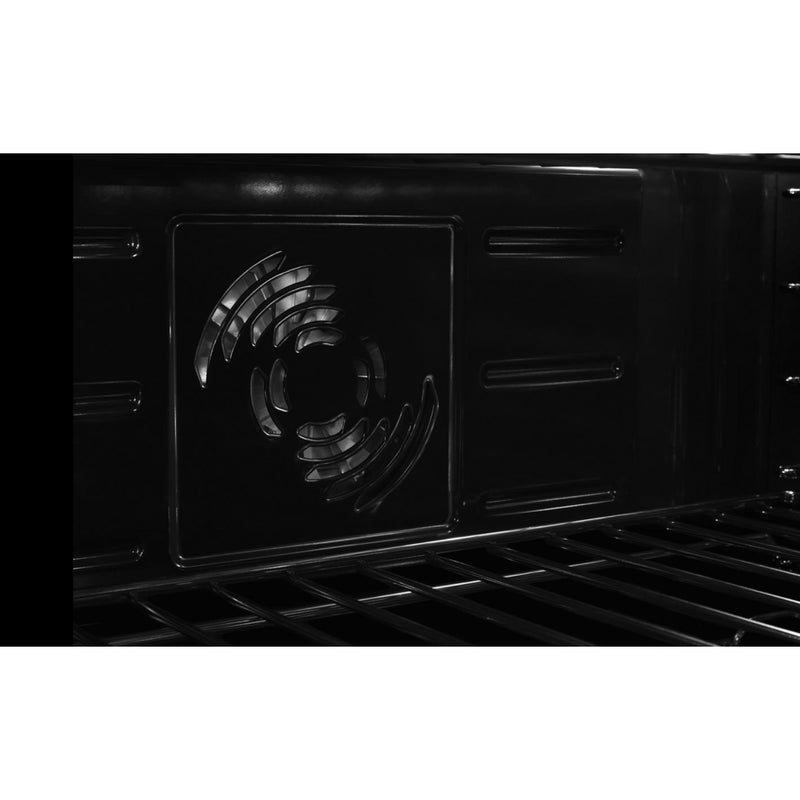

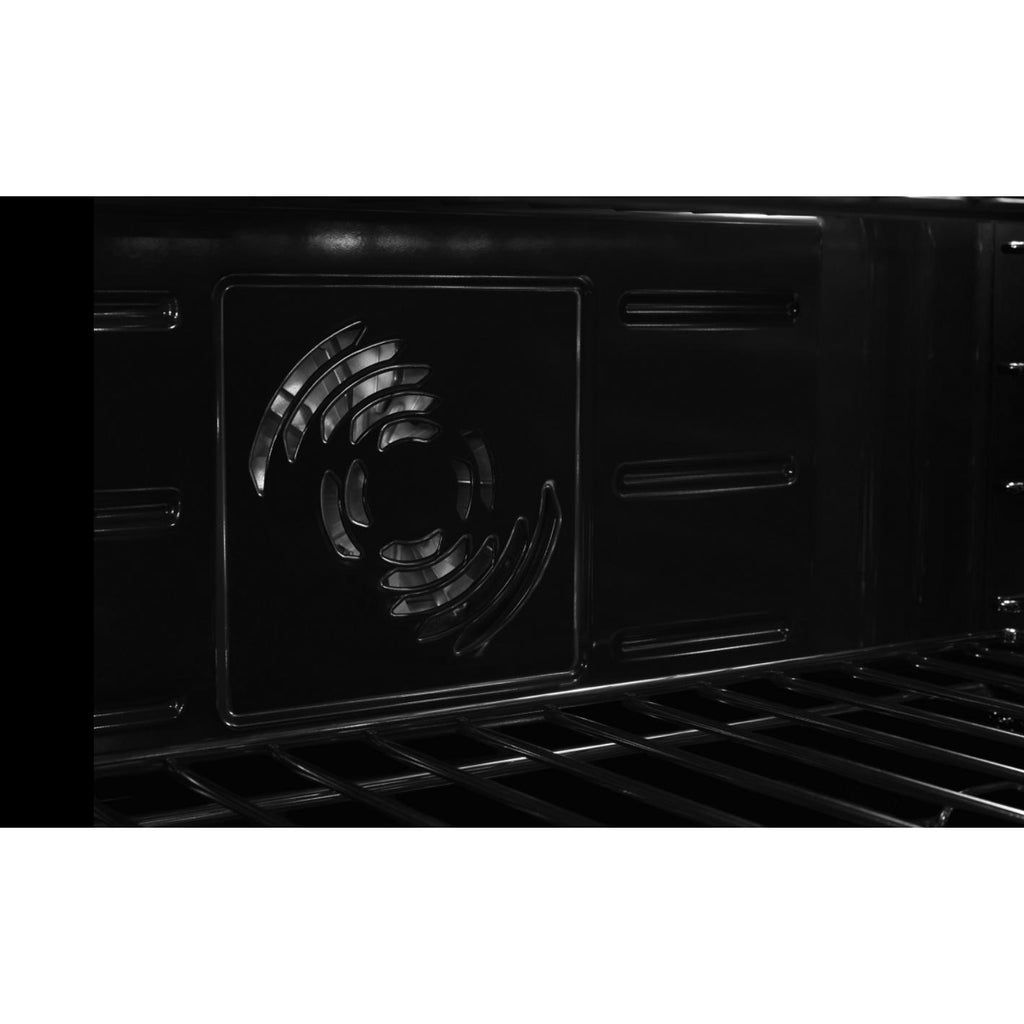

TRUE CONVECTION SYSTEM
This system features a 1,200-watt oval heating element and two round fans that distribute heat evenly and thoroughly throughout the oven. Six different convection cooking modes, including bake, roast and broil, all deliver superbly consistent results.

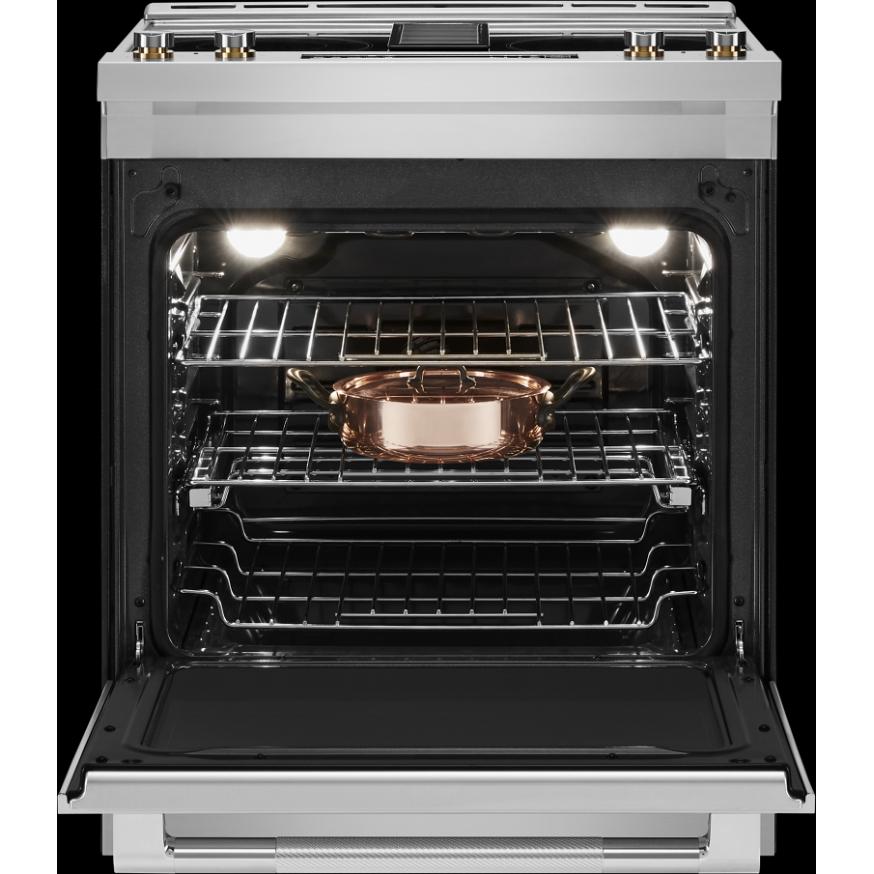

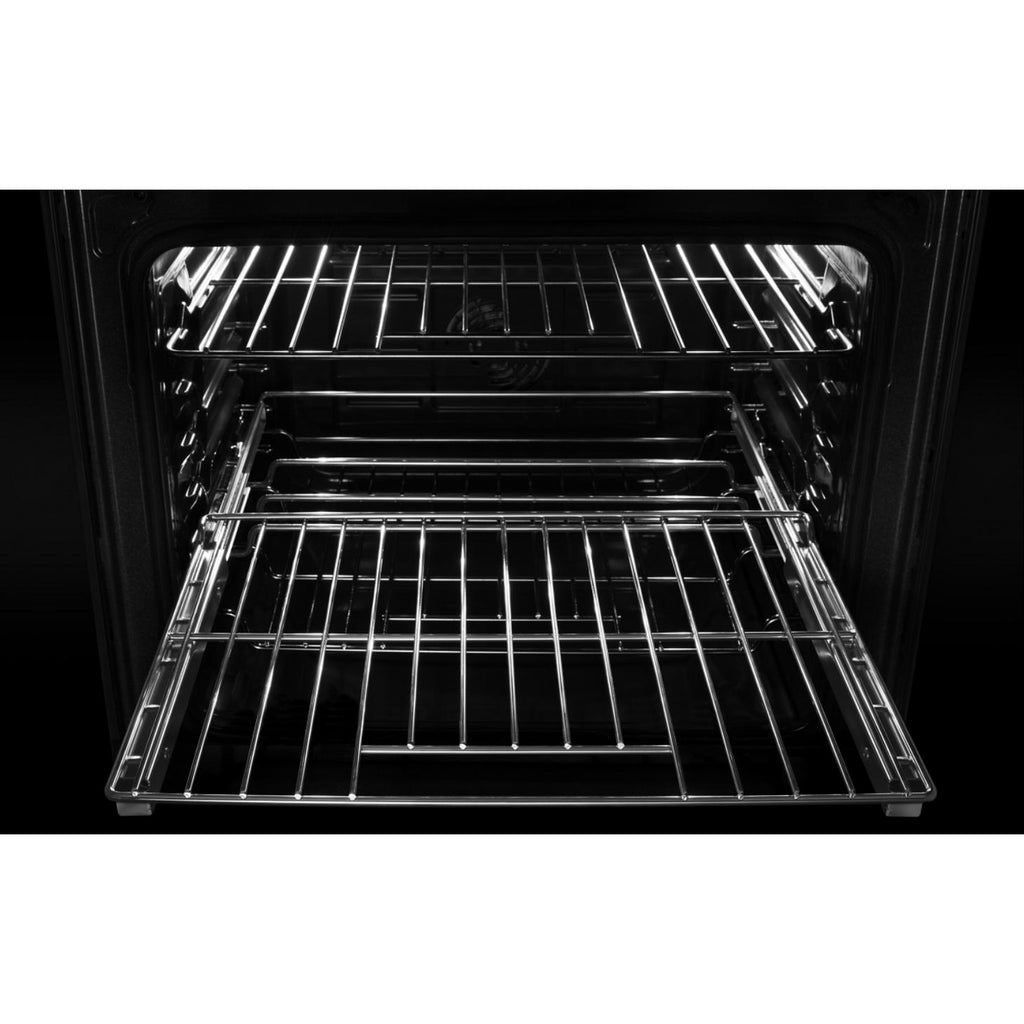

GLIDE RACKS
Smooth moves. Each rack glides in and out fluidly and quietly, featuring flat tines for peak aesthetics.
RISE™ DESIGN EXPRESSION

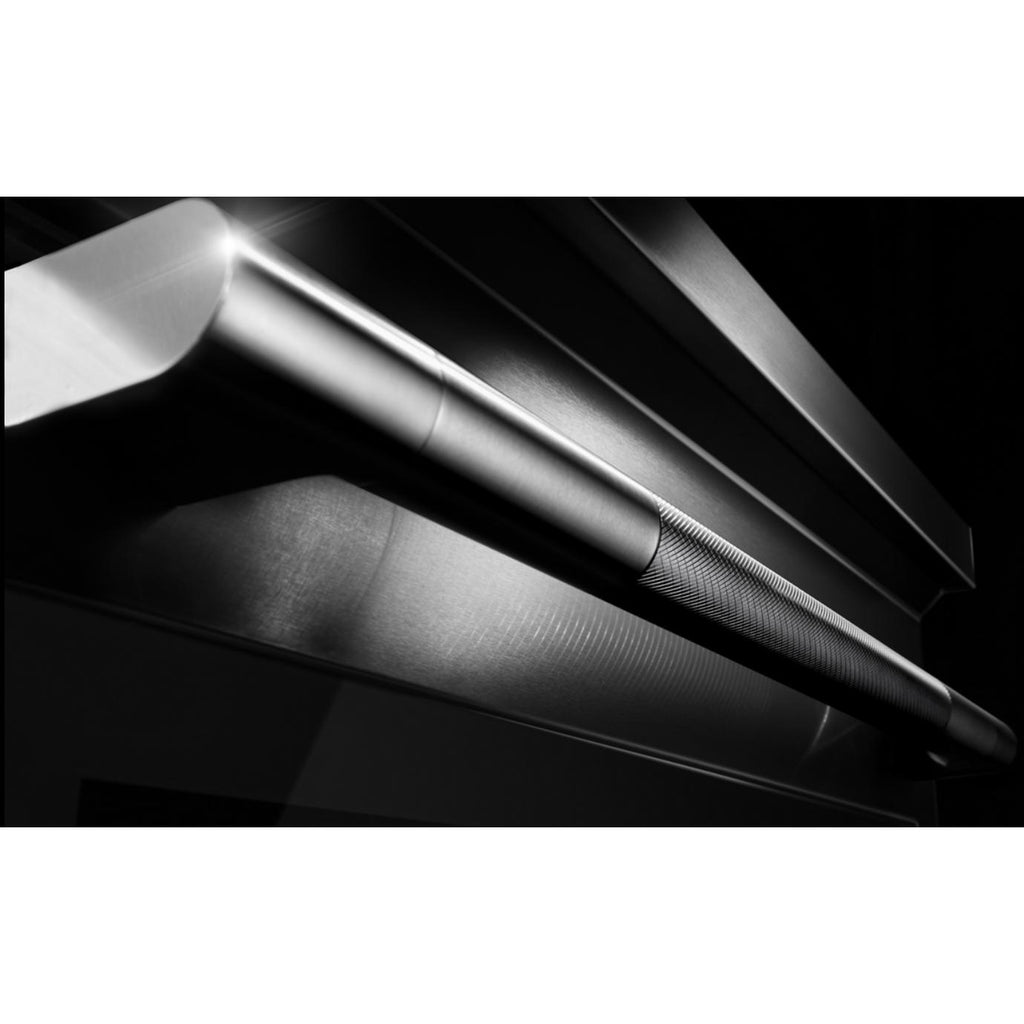

Forged for an era of striking proportions, robust lines of the RISE™ Design Expression draw the eye to its traditional yet unconventional design. Indulge in the details — a custom, diamond-knurled handle, brass-inspired bezels and a bold badge.
AIR FRY
Achieve crispy results on your favourites, from fresh vegetables to guilty-pleasure fried foods. Preheat the oven, then use Air Fry to circulate hot air around the air fry basket to crisp food using little to no additional oil.
AIR FRY BASKET
Utilize the stainless steel Air Fry Basket in the oven to crisp food, then clean it easily in the dishwasher.
EMOTIVE CONTROLS
Striking, intuitive and inviting controls with clear, white LEDs unleash performance at your touch.
AQUALIFT® SELF CLEANING TECHNOLOGY
Jenn-Air industry-first oven cleaning technology finishes in under one hour, using water and a lower temperature. This technology minimizes the time, temperature and the odors that typically come from standard, self-cleaning oven models.
HALOGEN OVEN LIGHT
This high-luminosity lighting lets you clearly see when pastries and gourmet pizzas are baked to a golden brown.
ADA COMPLIANT
Designed to meet ADA standards when installed according to the ADA guidelines.
Specifications
General
Series Name
Rise
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-Clean: AquaLift® Self-Cleaning Technology
Cooktop
Burners/Elements
4
Burners/Elements Output
• Right Rear: 1200 W
• Right Front: 3200 W
• Left Front: 3000 W
• Left Rear: 1300 W
• Right Front: 3200 W
• Left Front: 3000 W
• Left Rear: 1300 W
Burner/Element Size
• Right Rear: 6 in.
• Right Front: 10 in.
• Left Front: 12 in./6 in.
• Left Rear: 6 in.
• Right Front: 10 in.
• Left Front: 12 in./6 in.
• Left Rear: 6 in.
Elements
Smoothtop
Oven
Capacity (cu. ft.)
6.4
Number of Ovens
Single
Programs
• Air Fry
• Auto On
• Bake
• Broil
• Cancel/Off
• Clock
• Control Lock
• Convect Modes
• Cook Time Indicator
• Delay Start
• Favorites
• Keep Warm/Warm Hold
• Start Time
• Stop Time
• Timer
• Auto On
• Bake
• Broil
• Cancel/Off
• Clock
• Control Lock
• Convect Modes
• Cook Time Indicator
• Delay Start
• Favorites
• Keep Warm/Warm Hold
• Start Time
• Stop Time
• Timer
Features
Technologies
Automatic Convection Conversion Temperature Adjust
Air Fry
Yes
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Hidden Bake Element
• Convection Functions: Air Fry, Bake, Broil
• Convection Element Type: Fan
• Convection Element Power: 3200 W
• Broiler Location: Top of Oven
• Broiler Element Power: 4000 W
• Bake Element Power: 3600 W
• Number of Rack Guides: 7
• Number of Oven Racks: 3
• Number of Oven Lights: 2
• Interior Color: Black
• Oven Rack Type: Gliding Roll-Out
• Oven Rack Type: Heavy Duty
• Oven Rack Type: Max Capacity
• Oven Light Type: Incandescent
• Oven Light Switch Location: Oven Control
• Oven Control Type: Tap Touch
• Oven Control Location: Front Control
• Oven Control Knob Type: Metal
• Oven Control Knob Color: Stainless Steel
• Cooktop Surface Material: Glass
• Cooktop Surface Color: Black
• Cooktop Element Style: Ceran
• Cooktop Configuration: All Burners
• Cooktop Control Type: Knobs
• Cooktop Control Location: Front
• Oven Door: Metal & Glass
• Handle Material: Metal
• Handle Type: Reach Through Handle
• Handle Color: Stainless Steel
• Country of Origin: USA
• Convection Functions: Air Fry, Bake, Broil
• Convection Element Type: Fan
• Convection Element Power: 3200 W
• Broiler Location: Top of Oven
• Broiler Element Power: 4000 W
• Bake Element Power: 3600 W
• Number of Rack Guides: 7
• Number of Oven Racks: 3
• Number of Oven Lights: 2
• Interior Color: Black
• Oven Rack Type: Gliding Roll-Out
• Oven Rack Type: Heavy Duty
• Oven Rack Type: Max Capacity
• Oven Light Type: Incandescent
• Oven Light Switch Location: Oven Control
• Oven Control Type: Tap Touch
• Oven Control Location: Front Control
• Oven Control Knob Type: Metal
• Oven Control Knob Color: Stainless Steel
• Cooktop Surface Material: Glass
• Cooktop Surface Color: Black
• Cooktop Element Style: Ceran
• Cooktop Configuration: All Burners
• Cooktop Control Type: Knobs
• Cooktop Control Location: Front
• Oven Door: Metal & Glass
• Handle Material: Metal
• Handle Type: Reach Through Handle
• Handle Color: Stainless Steel
• Country of Origin: USA
Electrical Information
Information
• Volts: 240 V
• Amps: 40 A
• Annual Energy Usage: 636 kWh
• Amps: 40 A
• Annual Energy Usage: 636 kWh
Certifications and Approvals
ADA Compliant
Yes
Information
UL
Accessories
Included
• Power Cord
• W10675026
• W10675028
• W10748976
• W10675026
• W10675028
• W10748976
Optional
• W10115773
• W10655448
• W10655449
• W10655450
• W10675026
• W10675027
• W10675028
• W10731885
• W10731886
• W10731887
• W10748976
• W10800530
• W10655448
• W10655449
• W10655450
• W10675026
• W10675027
• W10675028
• W10731885
• W10731886
• W10731887
• W10748976
• W10800530
Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.9 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
27.81 inch(es) / 70.64 cm
Depth (Including Handles)
28.63 inch(es) / 72.71 cm
Weight
214 lb(s) / 97.07 kg
Additional Dimensions
• Cutout Width: 30.0 in.
• Oven Interior Width: 24.25 in.
• Oven Interior Depth: 20.75 in.
• Oven Interior Width: 24.25 in.
• Oven Interior Depth: 20.75 in.
Shipping Dimensions
Width
31.5 inch(es) / 80.01 cm
Height
43.5 inch(es) / 110.49 cm
Depth
30.5 inch(es) / 77.47 cm
Weight
234 lb(s) / 106.14 kg
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
883049643670
