Features

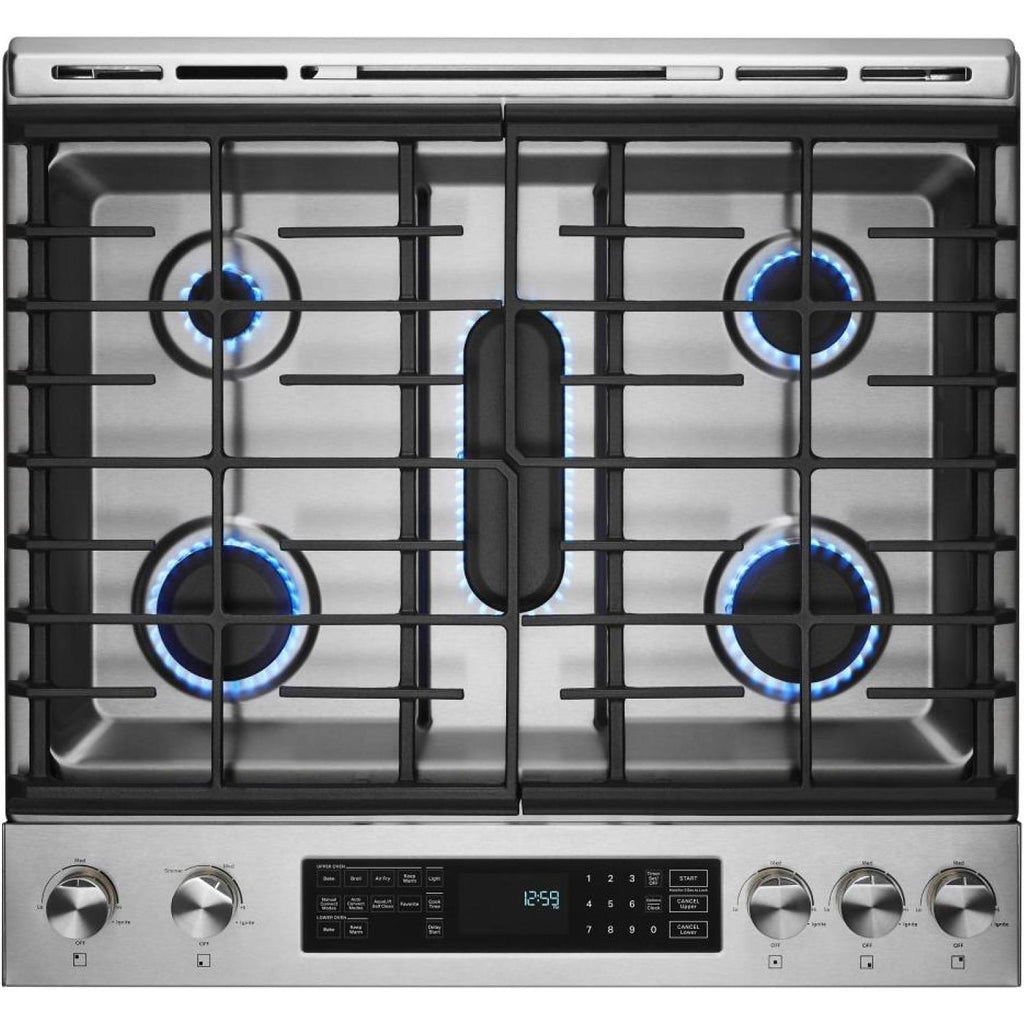

DUAL-STACKED POWER BURNERS
Two stacked, symmetrical flames bloom and retreat at your inclination, offering total control over heat levels. High-heat searing and wok cooking. Low, slow simmer and melt. Infinite intermediate settings satisfy every appetite.
TRUE CONVECTION SYSTEM
This system features a 1,200-watt oval heating element and two round fans that distribute heat evenly and thoroughly throughout the oven. Six different convection cooking modes, including bake, roast and broil, all deliver superbly consistent results.
DURAFINISH™ PROTECTION
With excellence in every detail, DuraFinish™ Protection keeps your cooktop?s surface looking like new, resisting yellowing, staining and scratching.
BAKING DRAWER
Adding additional baking capacity, our baking drawer offers an array of options for cooking and entertaining and provides a convenient alternative to oven baking and roasting, while still giving you the option to keep food warm, proof bread and warm plates before serving.
GLIDE RACKS
Smooth moves. Each rack glides in and out fluidly and quietly, featuring flat tines for peak aesthetics.
CAST IRON GRATES
Robust geometric grates form one graceful surface, crafted to withstand heavy woks and cookware.
RISE™ DESIGN EXPRESSION
Forged for an era of striking proportions, robust lines of the RISE™ Design Expression draw the eye to its traditional yet unconventional design. Indulge in the details — a custom, diamond-knurled handle, brass-inspired bezels and a bold badge.
AQUALIFT® SELF CLEANING TECHNOLOGY
Jenn-Air industry-first oven cleaning technology finishes in under one hour, using water and a lower temperature. This technology minimizes the time, temperature and the odors that typically come from standard, self-cleaning oven models.
AIR FRY
Achieve crispy results on your favourites, from fresh vegetables to guilty-pleasure fried foods. Preheat the oven, then use Air Fry to circulate hot air around the air fry basket to crisp food using little to no additional oil.
AIR FRY BASKET
Utilize the stainless steel Air Fry Basket in the oven to crisp food, then clean it easily in the dishwasher.
EMOTIVE CONTROLS
Striking, intuitive and inviting controls with clear, white LEDs unleash performance at your touch.
HALOGEN OVEN LIGHT
This high-luminosity lighting lets you clearly see when pastries and gourmet pizzas are baked to a golden brown.
Specifications
General
Series Name
RISE™
Fuel Type
Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Self-Cleaning: AquaLift® Self-Cleaning Technology
Cooktop
Burners/Elements
5
Burners/Elements Output
• Left Front - 19,000 BTU
• Left Rear - 5,000 BTU
• Center Front - 8,000 BTU
• Right Front - 15,000 BTU
• Right Rear - 9,200 BTU
• Left Rear - 5,000 BTU
• Center Front - 8,000 BTU
• Right Front - 15,000 BTU
• Right Rear - 9,200 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
5.8
Number of Ovens
Single
Programs
• Air Fry
• Audible Signal
• Bake
• Baking Drawer
• Baking Drawer Keep Warm
• Broil
• Cancel/Off
• Clock
• Control Lock
• Convect Modes
• Cook Time Indicator
• Delay Start
• Favorites
• Keep Warm/Warm Hold
• Start Time
• Stop Time
• Timer
• Audible Signal
• Bake
• Baking Drawer
• Baking Drawer Keep Warm
• Broil
• Cancel/Off
• Clock
• Control Lock
• Convect Modes
• Cook Time Indicator
• Delay Start
• Favorites
• Keep Warm/Warm Hold
• Start Time
• Stop Time
• Timer
Features
Technologies
• Convection
• Automatic Convection Conversion Temperature Adjust
• Auto Re-Ignition
• Automatic Convection Conversion Temperature Adjust
• Auto Re-Ignition
Air Fry
Yes
Control Lock
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Hot Surface Indicator Light
• Heating Element On Indicator Light
• Hidden Bake Element
• Convection Element Type - Fan
• Convection Element Power - 900 W
• Oven Cooking System - Convection
• Broiler Location - Top of Oven
• Broiler Element Power - 13,000 BTU
• Bake Element Power - 18,000 BTU
• 3 Oven Racks
• 7 Rack Guides
• 2 Oven Lights
• Incandescent Oven Lights
• Gliding Roll-Out, Heavy-Duty and Max Capacity Oven Racks
• Oven Control Type - Tap Touch
• Oven Control Location - Front Control
• Heating Element On Indicator Light
• Hidden Bake Element
• Convection Element Type - Fan
• Convection Element Power - 900 W
• Oven Cooking System - Convection
• Broiler Location - Top of Oven
• Broiler Element Power - 13,000 BTU
• Bake Element Power - 18,000 BTU
• 3 Oven Racks
• 7 Rack Guides
• 2 Oven Lights
• Incandescent Oven Lights
• Gliding Roll-Out, Heavy-Duty and Max Capacity Oven Racks
• Oven Control Type - Tap Touch
• Oven Control Location - Front Control
Drawer Features
Baking
Yes
Warming
Yes
Electrical Information
Information
• Volts - 120.0 V
• Amps - 15.0 A
• Amps - 15.0 A
Certifications and Approvals
ADA Compliant
No
Information
UL
Accessories
Included
Power Cord
Optional
Optional:
• W10115773
• W10432544
• W10655448
• W10655449
• W10655450
• W10675026
• W10675027
• W10675028
• W10731885
• W10731886
• W10731887
• W10800530
• W10432544
• W10655448
• W10655449
• W10655450
• W10675026
• W10675027
• W10675028
• W10731885
• W10731886
• W10731887
• W10800530
Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.9 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
27.81 inch(es) / 70.64 cm
Depth (Including Handles)
28.63 inch(es) / 72.71 cm
Weight
242 lb(s) / 109.77 kg
Additional Dimensions
• Oven Interior Width - 24.25 "
• Oven Interior Depth - 20.75 "
• Depth With Door Open 90 Degree - Not specified
• Cutout Width - 30.0 "
• Oven Interior Depth - 20.75 "
• Depth With Door Open 90 Degree - Not specified
• Cutout Width - 30.0 "
Shipping Dimensions
Width
31.5 inch(es) / 80.01 cm
Height
43.5 inch(es) / 110.49 cm
Depth
30.5 inch(es) / 77.47 cm
Weight
262 lb(s) / 118.84 kg
Warranty
Warranty
1-Year Parts and Labor
UPC
UPC#
883049644301
