Features
STATEMENT OR MINIMALIST COLLECTION HANDLES - SOLD SEPARATELY
Elevate the design of your wine refrigerator by selecting handles from one of Monogram's collections (sold separately)
Additional Features
DUAL ZONE COOLING
Select different temperatures in the upper and lower compartments to store different wine varieties
FLUSH INSTALLATION.
Designed for nearly seamless flush installation for beautiful integration to kitchen or entertainment area
PANEL READY.
Use custom panels to match your cabinetry from your cabinetmaker, or purchase a Stainless Steel panel – STAINLESS PANELS SOLD SEPARTELY

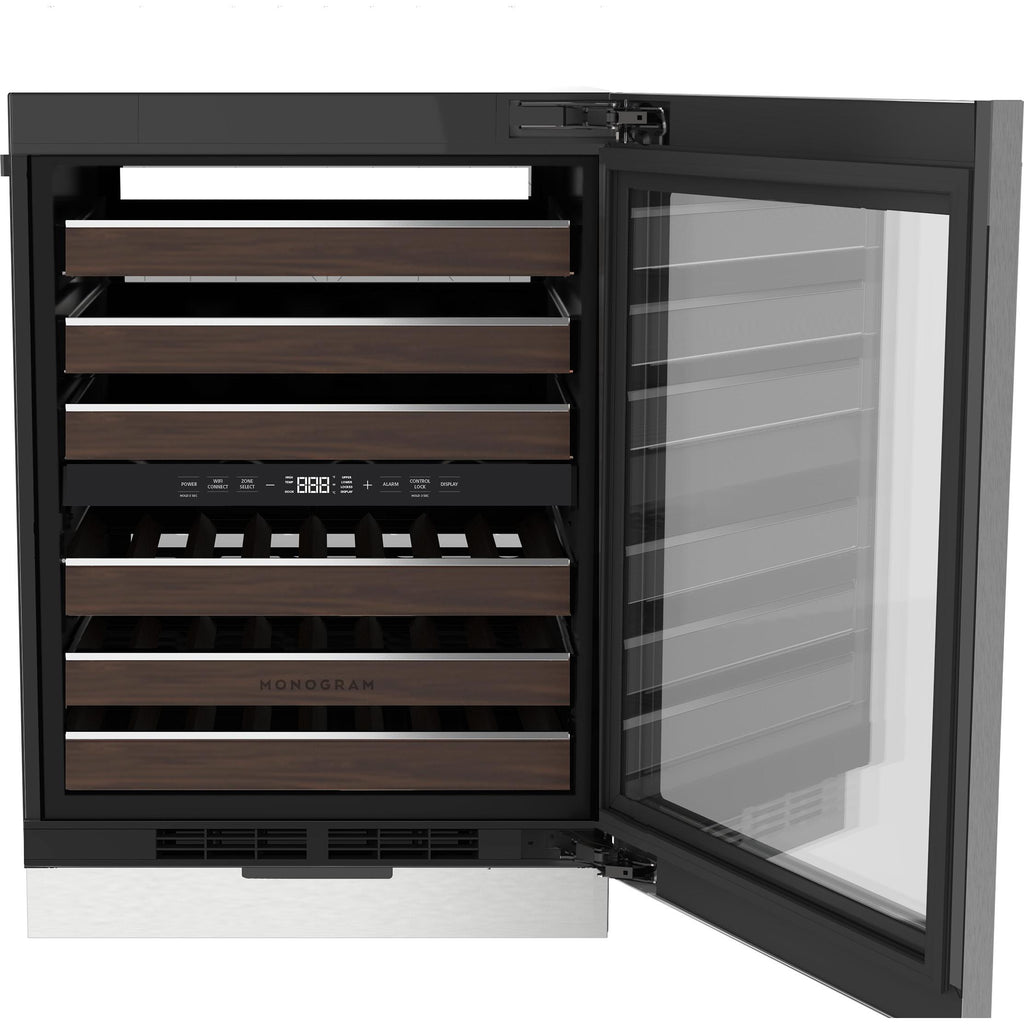

3 FULL EXTENSION WINE RACKS
Smooth glide full extension racks allow you to easily stock with your favorite wine or bottled selections
UV PROTECTED GLASS.
Ensure your wine is perfectly preserved with UV-protected glass, which shields your bottles from harmful lighting and helps maintain their integrity over time.
BACKLIT ELECTRONIC CONTROL.
Set the temperature, connect to WiFi, and control the light settings with backlit LED control panel
Specifications
General
Capacity
4.7 Cu. Ft.
Bottles
42
Number of Racks
6
Temperature Zones
2
Temperature Settings
41 degrees to 61 degree F
Installation
Built-In
Type
Cooler
Size
Compact
Color
Panel Ready
Manufacturer Color
Panel Ready
Cabinet Color
Grey
Hinge
Right
Features
Technologies
• Amazon Alexa, Google Home
• WiFi Connect Built-in
• WiFi Connect Built-in
Digital Temperature Display
Yes
Glass Door
Yes
Interior Light
Yes
Reversible Door
Yes
Wi-Fi
Yes
Additional Information
• Installation: Built-In or Free-Standing, Side by Side Install Capable with ZIBC24PWII (Additional kit required: ZKAW)
• Adjustable Temperature Control
• Collection: Statement, Minimalist
• Control Features: Dual Temp Zone - Independent Upper & Lower Zones, Door Alarm, Hi-Temp Alarm, Child Lock, Power On/Off
• Defrost Type: Cycle Defrost
• Full Extension Slide
• Interior Lighting: LED - Door Closed: On/Off Option; Door Open: Always On
• Leveling System: 2 rear roller adjustable from front; 2 front legs
• Proximity Lighting Control: On/Off Option, Multi key or in APP
• Refrigerant Type: R600a
• Removable Slide-Out Shelves
• Wine Racks: 6 Full Extension Soft Close, Wood Slats
• Adjustable Temperature Control
• Collection: Statement, Minimalist
• Control Features: Dual Temp Zone - Independent Upper & Lower Zones, Door Alarm, Hi-Temp Alarm, Child Lock, Power On/Off
• Defrost Type: Cycle Defrost
• Full Extension Slide
• Interior Lighting: LED - Door Closed: On/Off Option; Door Open: Always On
• Leveling System: 2 rear roller adjustable from front; 2 front legs
• Proximity Lighting Control: On/Off Option, Multi key or in APP
• Refrigerant Type: R600a
• Removable Slide-Out Shelves
• Wine Racks: 6 Full Extension Soft Close, Wood Slats
Electrical Information
Information
• 120 V
• 60 Hz
• 15 or 20 A
• 60 Hz
• 15 or 20 A
Certifications and Approvals
Energy Star Certified
Yes
Sabbath/Star-K
Yes
Information
ADA Compliant
Accessories
Optional
• Minimalist Handle Kit - ZXGP1H1CPSS
• Statement Handle Kit - ZXGP1H1PWSS
• Stainless Steel Panel Kit with stainless toe-kick - ZK1GC240WSS
• Undercounter Unification Kit - ZKAW
• Side by Side Install Toe-Kick Kit - ZKN48W
• Handle Stud Kit - ZKPN
• Statement Handle Kit - ZXGP1H1PWSS
• Stainless Steel Panel Kit with stainless toe-kick - ZK1GC240WSS
• Undercounter Unification Kit - ZKAW
• Side by Side Install Toe-Kick Kit - ZKN48W
• Handle Stud Kit - ZKPN
Dimensions
Width
23.87 inch(es) / 60.64 cm
Height
34.1 inch(es) / 86.61 cm
Depth (Without Handle)
23.39 inch(es) / 59.4 cm
Weight
153.99 lb(s) / 69.85 kg
Additional Dimensions
• Overall Height: 34 1/10" - 35 1/10 "
• Minimum Cabinet Width: 24" (61.0 cm)
• Minimum Cabinet Depth: 24" (61.0 cm)
• Cutout Width: 23 7/8" (60.6 cm)
• Cutout Height: 34 1/2" (87.6 cm) Min 35" (88.9 cm) Max
• Minimum Cabinet Width: 24" (61.0 cm)
• Minimum Cabinet Depth: 24" (61.0 cm)
• Cutout Width: 23 7/8" (60.6 cm)
• Cutout Height: 34 1/2" (87.6 cm) Min 35" (88.9 cm) Max
Shipping Dimensions
Weight
162 lb(s) / 73.48 kg
Warranty
Warranty
• Labor Warranty: Limited 2-year entire appliance, Limited 5-year sealed refrigerating system
• Parts Warranty: Limited 12-year sealed system, Limited 2-year entire appliance, Limited 5-year sealed refrigerating system
• Parts Warranty: Limited 12-year sealed system, Limited 2-year entire appliance, Limited 5-year sealed refrigerating system
