Specifications
General
Series Name
• HP24RS
• Signature Series
• Signature Series
Refrigerator Type
Drawers
Installation Type
Built-In
Door Hinge
Drawer
Color
Panel Ready
Manufacturer Color
Custom Panels required (sold separaterly)
Capacity
Total
5.2 cu. ft.
Refrigerator
5.2 cu. ft.
Refrigerator Features
Digital Display
Yes
Door Alarm
Yes
Frost Free
Yes
Interior Light
Yes
Additional Information

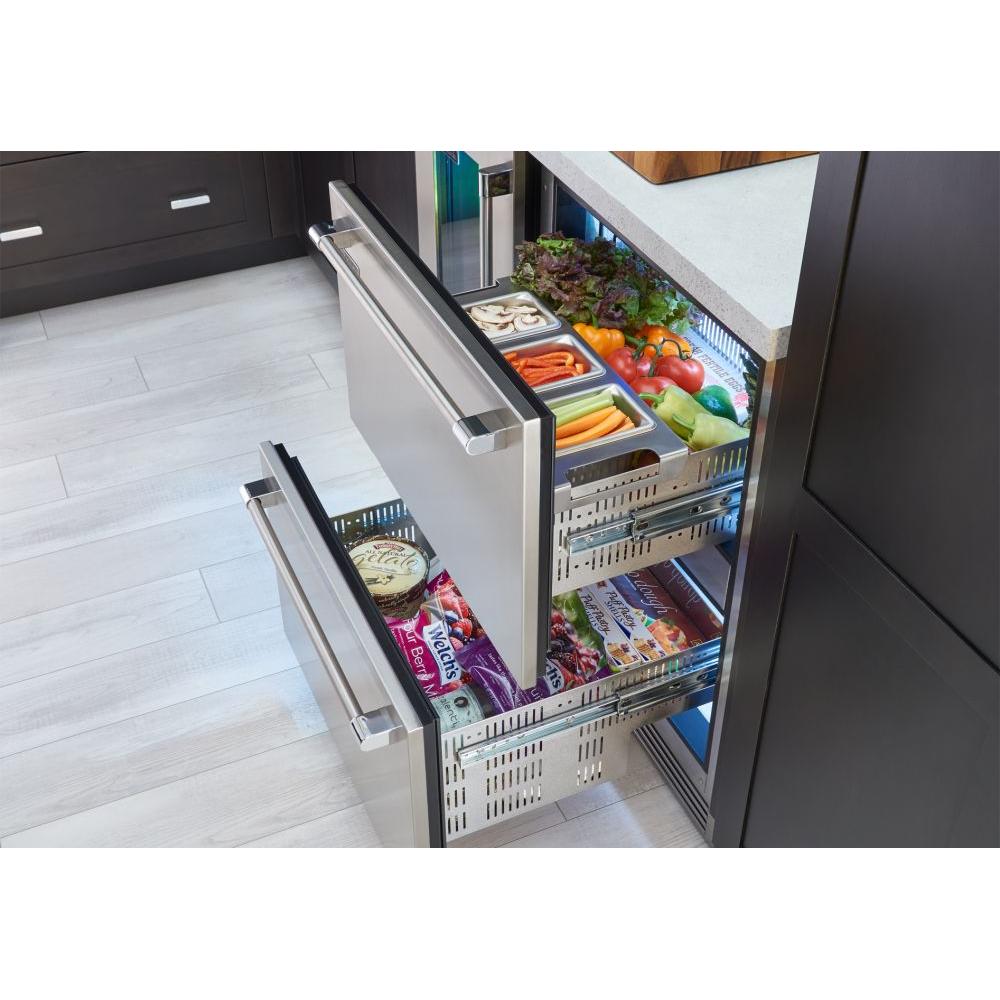

• Smooth glide self-closing drawers offer high storage capacity
• Audible door alarm warns user if drawer is held open
• 6000K white or cool blue LED display lighting
• White LED task lighting
• High capacity drawers allow for organization of fresh ingredients for meal prep or for storing milk, juice boxes, and other drinks for the kids
• Temperature range: 33°-42°F (.5°-5.5°C)
• Commercial-grade all stainless steel interior
• Cord Plug Type: NEMA 3 Prong 5-15P
• Digital Thermostat
• Expansion Device: Capillary Tube
• Heat Rejection (at 75°F): 450 BTU/hr
• Pull Down Capacity: 1000 BTU/hr
• Front Vented
• Audible door alarm warns user if drawer is held open
• 6000K white or cool blue LED display lighting
• White LED task lighting
• High capacity drawers allow for organization of fresh ingredients for meal prep or for storing milk, juice boxes, and other drinks for the kids
• Temperature range: 33°-42°F (.5°-5.5°C)
• Commercial-grade all stainless steel interior
• Cord Plug Type: NEMA 3 Prong 5-15P
• Digital Thermostat
• Expansion Device: Capillary Tube
• Heat Rejection (at 75°F): 450 BTU/hr
• Pull Down Capacity: 1000 BTU/hr
• Front Vented
Electrical Information
Information
• Electrical Supply: 115 VAC/60 Hz/1 Ph
• Running Load Amps: 2.2 amps
• Running Load Amps: 2.2 amps
Certifications and Approvals
Energy Star Certified
Yes
Additional Information
• cULus
• Eco Friendly R600a Refrigerant
• Eco Friendly R600a Refrigerant
Accessories
Optional
• 67991-L/R Stacking Kit for HP24/HC24/HA24 models
• 66736 Caster Kit for HP24/HC24/HA24 models

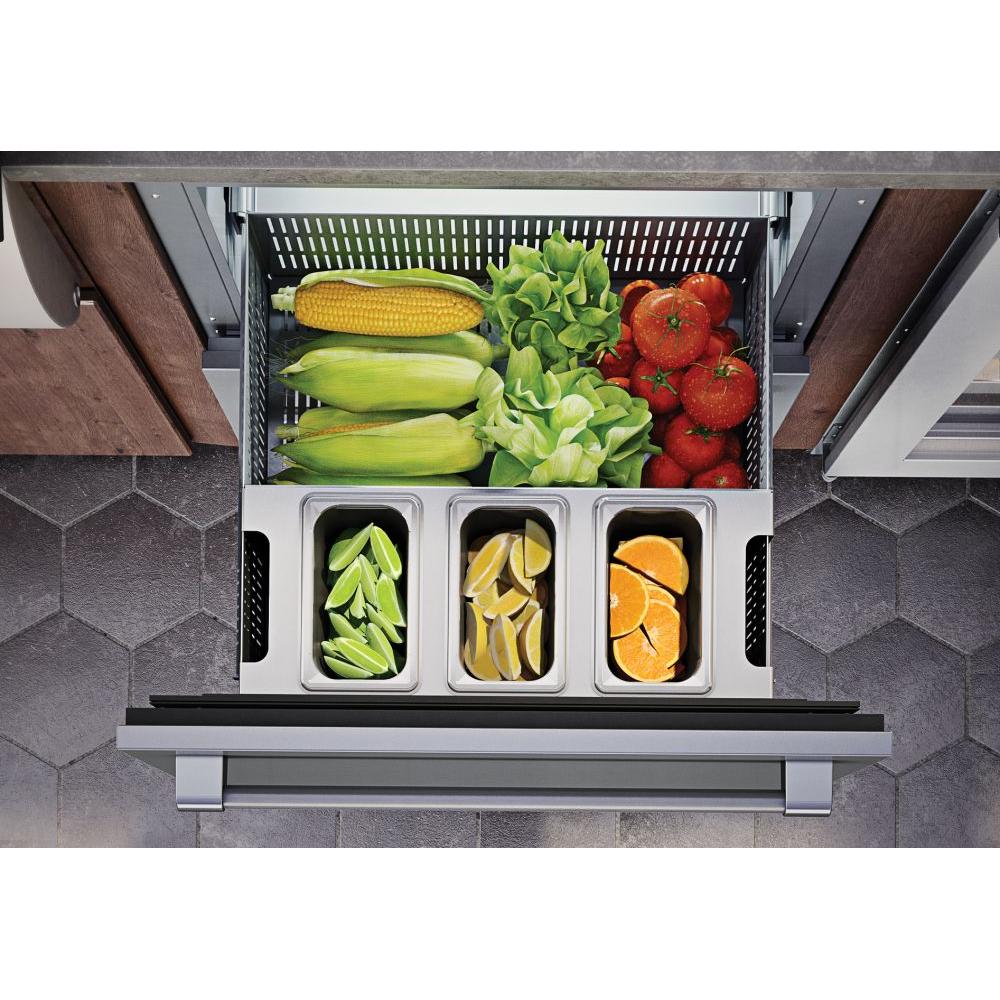

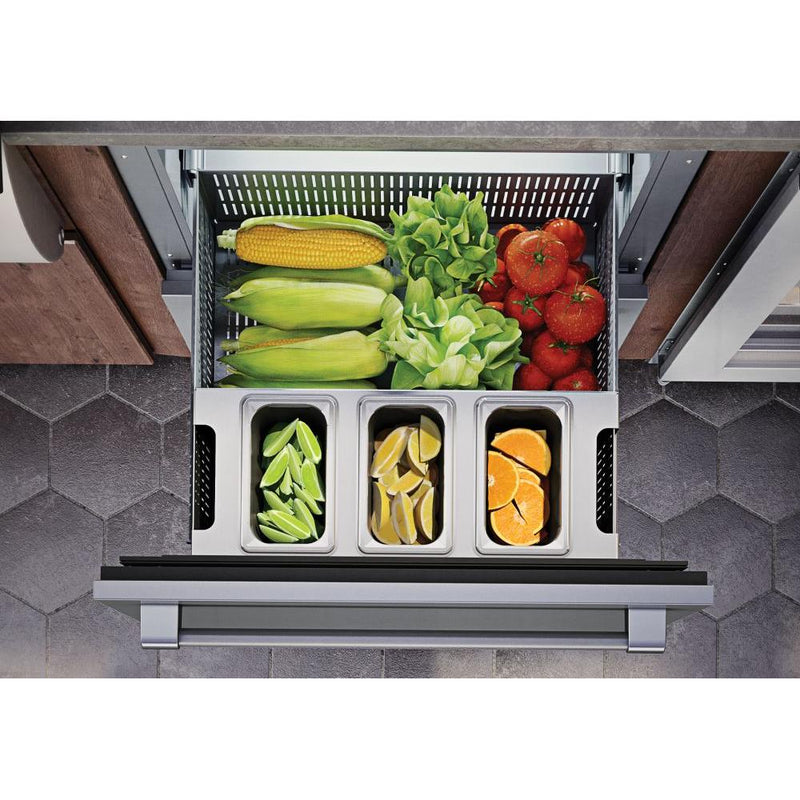

• RK24DP Drawer Pan Tray (3 SS pans with covers)
• 66736 Caster Kit for HP24/HC24/HA24 models
• RK24DP Drawer Pan Tray (3 SS pans with covers)
Dimensions
Class Width
23" to 28.9"
Class Height
30" - 35"
Width
23.86 inch(es) / 60.6 cm
Height (With Hinge)
34.25 inch(es) / 87 cm
Overall Depth
24.02 inch(es) / 61 cm
Additional Dimensions
• Cord Length: 6'
OPENING DIMENSIONS
• Width: 24" (610 mm.)
• Depth: 4" (610 mm.)
• Height: 34-1/2" (876 mm.)
OPENING DIMENSIONS
• Width: 24" (610 mm.)
• Depth: 4" (610 mm.)
• Height: 34-1/2" (876 mm.)
Shipping Dimensions
Weight
191.01 lb(s) / 86.64 kg
Warranty
Warranty
Full 6-year warranty for owner ease of mind
