Features

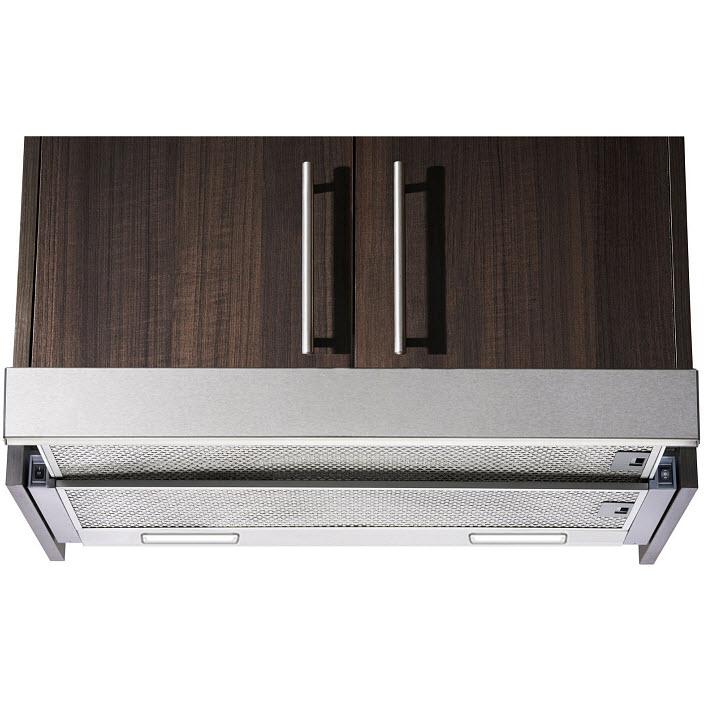

UNDER CABINET GLIDE OUT HOOD
Hidden hood built over the cooktop, this discrete hood is only visible when in use. It can be smoothly pulled out to activate the extractor while cooking, and pushed back into place when idle, offering a classic way to finish your kitchen.

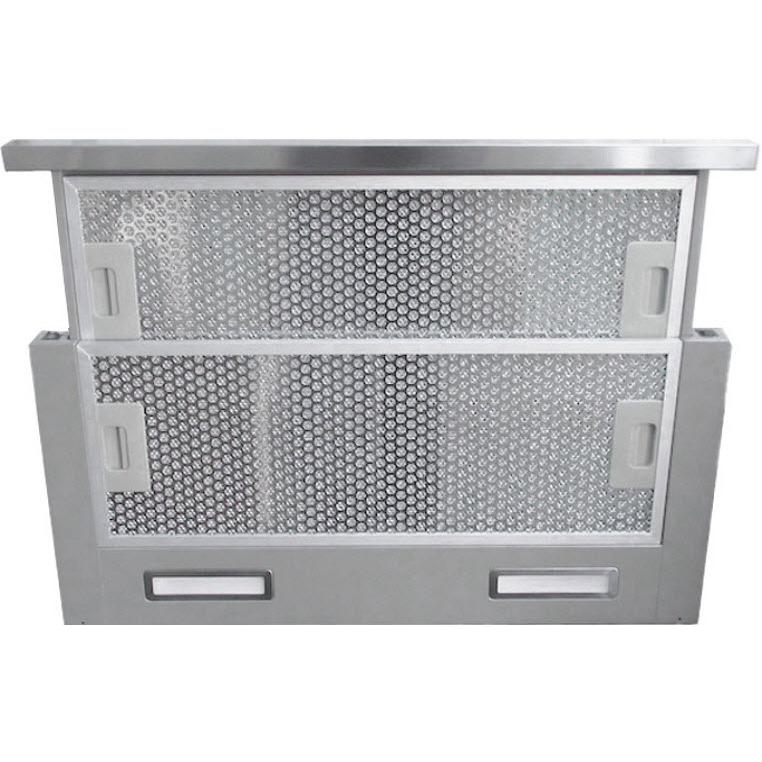

REMOVABLE HONEYCOMB FILTERS
Easy installation and detaching allow you to properly clean the filters for optimum efficiency.
TWO LED STRIPS LIGHTS
Includes two LED strips to help illuminate your cooking surface, increase visibility, and are more energy efficient.
Additional Features
SPEED FAN
High and low setting to allow proper ventilation of your kitchen as needed.
ROCKER SWITCH CONTROLS
Front-located on/off and high/low switches make it easy to manage the light and fan.
Specifications
General
Blower Included
Yes
Airflow
300 CFM
Style
Slide-Out
Color
Stainless Steel
Manufacturer Color
Powder Coating Grey and Stainless Steel Finish
Installation
Built-In
Features
Dishwasher-Proof Filters
Yes
Ducting Information
Ducted Venting
Speeds
Two-Speed Adjustment
Additional Information
• LED Lighting
• Two Dishwasher-Safe Honeycomb Filters
• Rocker Switch Controls
• Quiet (65dBA) 300 CFM Motor
• Two Dishwasher-Safe Honeycomb Filters
• Rocker Switch Controls
• Quiet (65dBA) 300 CFM Motor
Electrical Information
Information
110/120 V
Accessories
Included
6" Duct adaptor

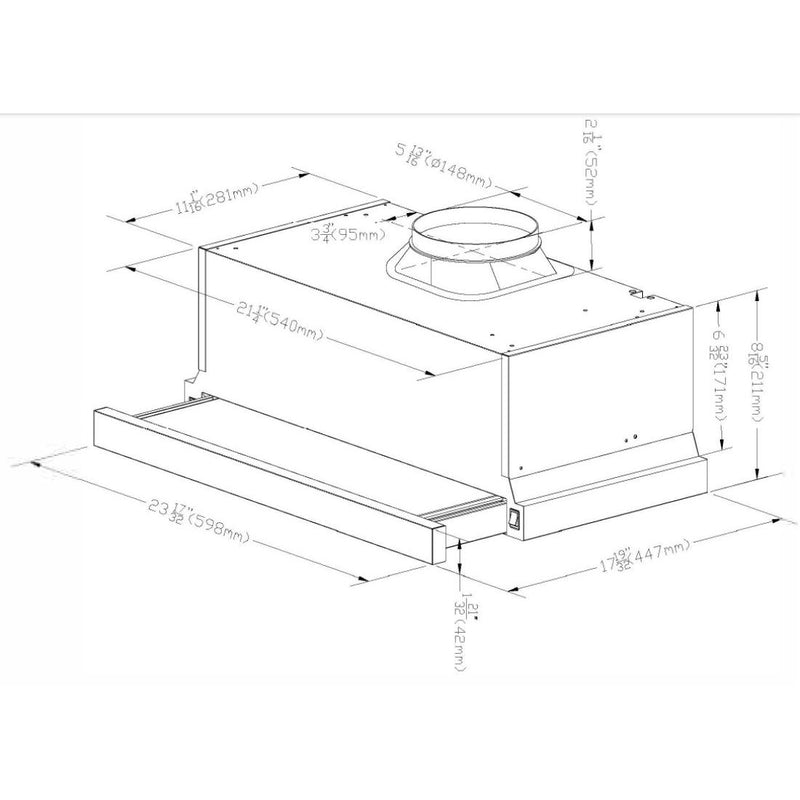

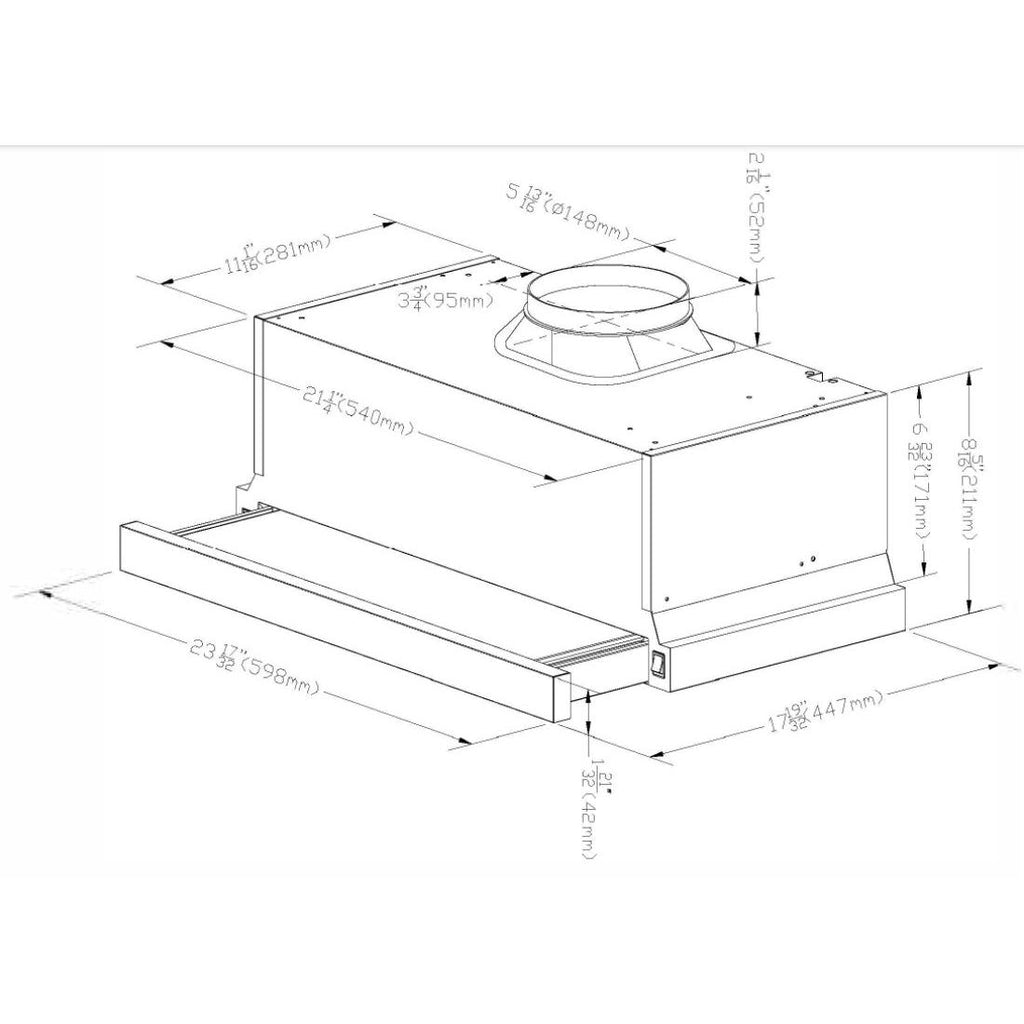

Dimensions
Class Width
24"
Width
23.54 inch(es) / 59.8 cm
Height
8.31 inch(es) / 21.1 cm
Depth
17.6 inch(es) / 44.7 cm
Weight
1545.44 lb(s) / 701 kg
Additional Dimensions
• Cut Out dimensions in inch (W/H/D):
• min. 235/8"-max. 24" / 85/16"/ min. 12"
• min. 600mm - max. 610mm / 211mm / 305mm
• min. 235/8"-max. 24" / 85/16"/ min. 12"
• min. 600mm - max. 610mm / 211mm / 305mm
Shipping Dimensions
Weight
18.08 lb(s) / 8.2 kg
Warranty
Warranty
2 Years Parts and Labor
