Specifications

    General






                  Airflow


                  300 CFM


                  Style


                  Slide-Out


                  Color


                  Stainless Steel


                  Manufacturer Color


                  Stainless Steel


                  Installation


                  Built-In

              Features






                  Dishwasher-Proof Filters


                  Yes


                  Speeds


                  2-speed adjustment


                  Additional Information

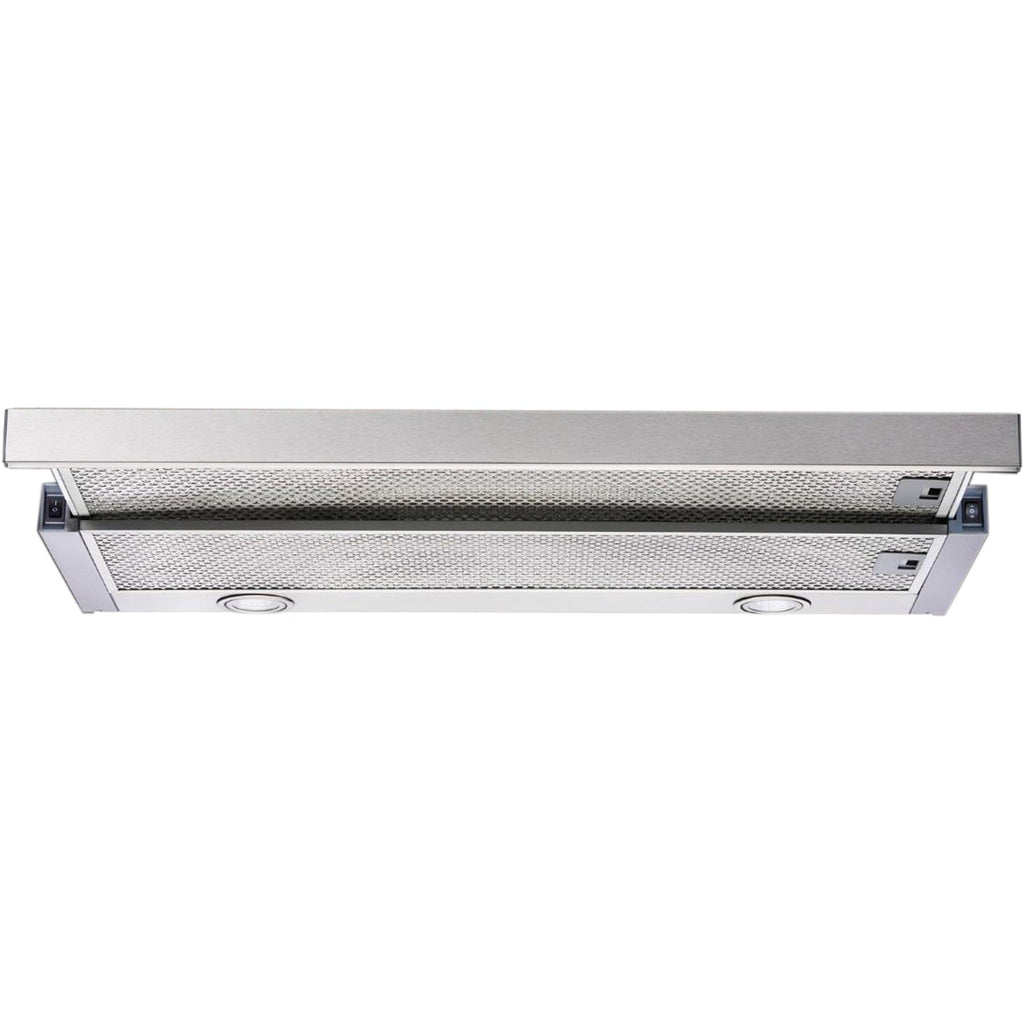

                  • 24" (60cm) stainless steel built-in glide-out range hood
• LED lighting (3,200 Lumens)
• 2 x dishwasher safe honeycomb filters
• Electronic switch controls
• Quiet (7 sones/56dB) 300 CFM motor
• Top vent for exterior ventilation
              • LED lighting (3,200 Lumens)
• 2 x dishwasher safe honeycomb filters
• Electronic switch controls
• Quiet (7 sones/56dB) 300 CFM motor
• Top vent for exterior ventilation
Electrical Information






                  Information


                  • Power Supply: 110-120 V, 60 Hz
• Rated Input Power: 122W
• Lighting Power: 2 x 1W
• Motor Power: 120W
              • Rated Input Power: 122W
• Lighting Power: 2 x 1W
• Motor Power: 120W
Accessories






                  Included


                  • Canadian cord and plug
• Electrical cord located 3.13" (79mm) from the top right corner of the unit at the rear
              • Electrical cord located 3.13" (79mm) from the top right corner of the unit at the rear
Dimensions






                  Class Width


                  24"


                  Width


                  23.5 inch(es) / 59.69 cm


                  Height


                  8.32 inch(es) / 21.13 cm


                  Depth


                  11.25 inch(es) / 28.58 cm


                  Additional Dimensions


                  Depth when open: 17.75"
