Features
GAS HOBS
Equipped with a thermocouple, the gas supply is cut off if the flame is extinguished for greater safety.
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Zone 1 - Position: Front-left
• Zone 2 - Position: Rear-left
• Zone 3 - Position: Center
• Zone 4 - Position: Rear-right
• Zone 5 - Position: Front-right
• Zone 1 - Type: Gas - Semi-rapid
• Zone 2 - Type: Gas - Semi-rapid
• Zone 3 - Type: Gas - Ultra-rapid
• Zone 4 - Type: Gas - Semi-rapid
• Zone 5 - Type: Gas - AUX
• Zone 5 - Power: 1.05 kW
• Zone 2 - Position: Rear-left
• Zone 3 - Position: Center
• Zone 4 - Position: Rear-right
• Zone 5 - Position: Front-right
• Zone 1 - Type: Gas - Semi-rapid
• Zone 2 - Type: Gas - Semi-rapid
• Zone 3 - Type: Gas - Ultra-rapid
• Zone 4 - Type: Gas - Semi-rapid
• Zone 5 - Type: Gas - AUX
• Zone 5 - Power: 1.05 kW
Features
Additional Information
• Aesthetics: Classic
• Color: Stainless steel
• Finishing: Satin
• Stainless steel type: Brushed
• Material: Stainless steel
• Controls color: Stainless steel effect

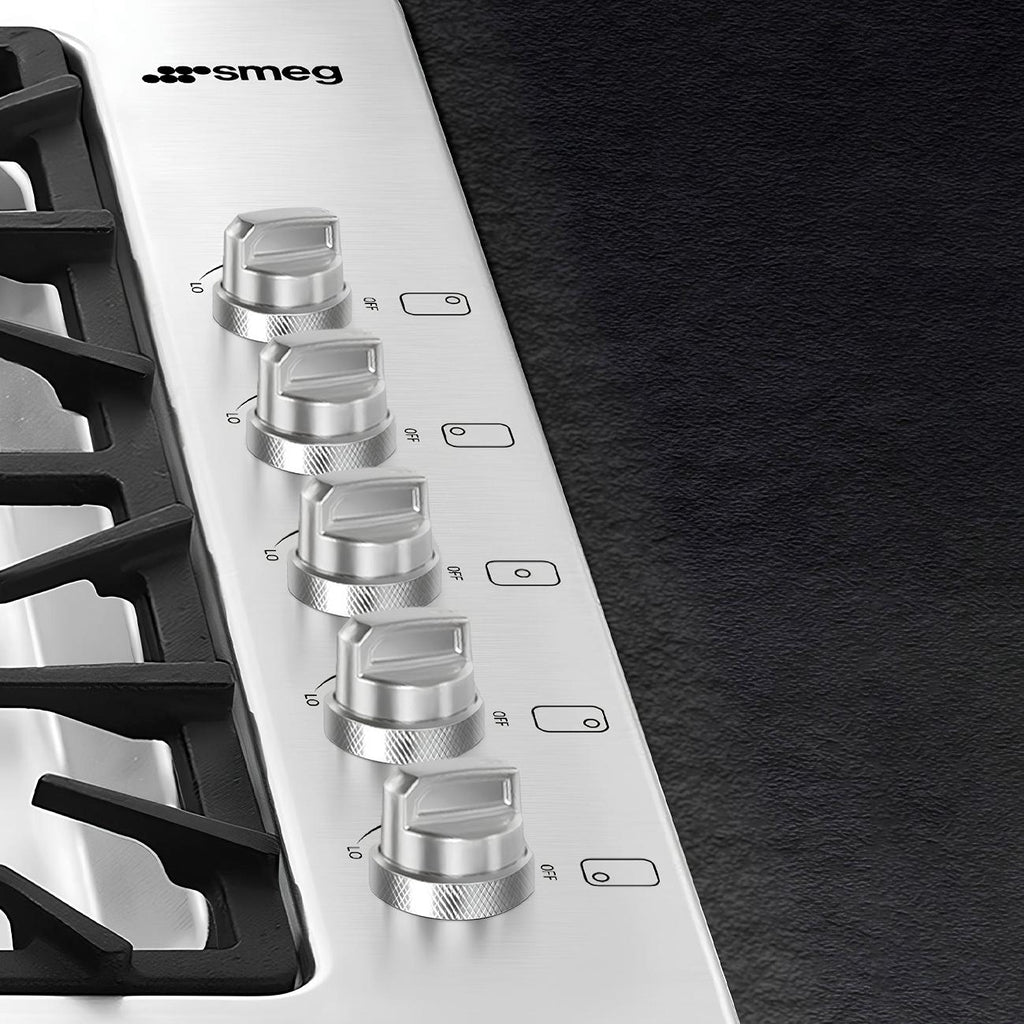

• Control setting type: Control knobs
• Controls position: Lateral
• No. of controls: 5
• Grates: Cast iron
• Burners: Standard
• Burners material: Aluminum
• Installation: Ultra-low profile
• Gas safety valves
• Automatic ignition
• Color: Stainless steel
• Finishing: Satin
• Stainless steel type: Brushed
• Material: Stainless steel
• Controls color: Stainless steel effect
• Control setting type: Control knobs
• Controls position: Lateral
• No. of controls: 5
• Grates: Cast iron
• Burners: Standard
• Burners material: Aluminum
• Installation: Ultra-low profile
• Gas safety valves
• Automatic ignition
Electrical Information
Information
• Gas nominal rating: 9500 W
• Nominal power: 1 W
• Voltage: 100-120 V
• Frequency: 50/60 Hz
• Electric cable type: Single phase
• Power cord length: 47 1/4"
• Nominal power: 1 W
• Voltage: 100-120 V
• Frequency: 50/60 Hz
• Electric cable type: Single phase
• Power cord length: 47 1/4"
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
3.06 inch(es) / 7.77 cm
Depth
21 inch(es) / 53.34 cm
Weight
46.01 lb(s) / 20.87 kg
Shipping Dimensions
Width
37.06 inch(es) / 94.13 cm
Height
7.31 inch(es) / 18.57 cm
Depth
23.25 inch(es) / 59.06 cm
Weight
53 lb(s) / 24.04 kg
