Features
EXTRALOW®
The ExtraLow® feature provides the widest variety of temperature control of any simmer system. It cycles on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching. THERMADOR EXCLUSIVE

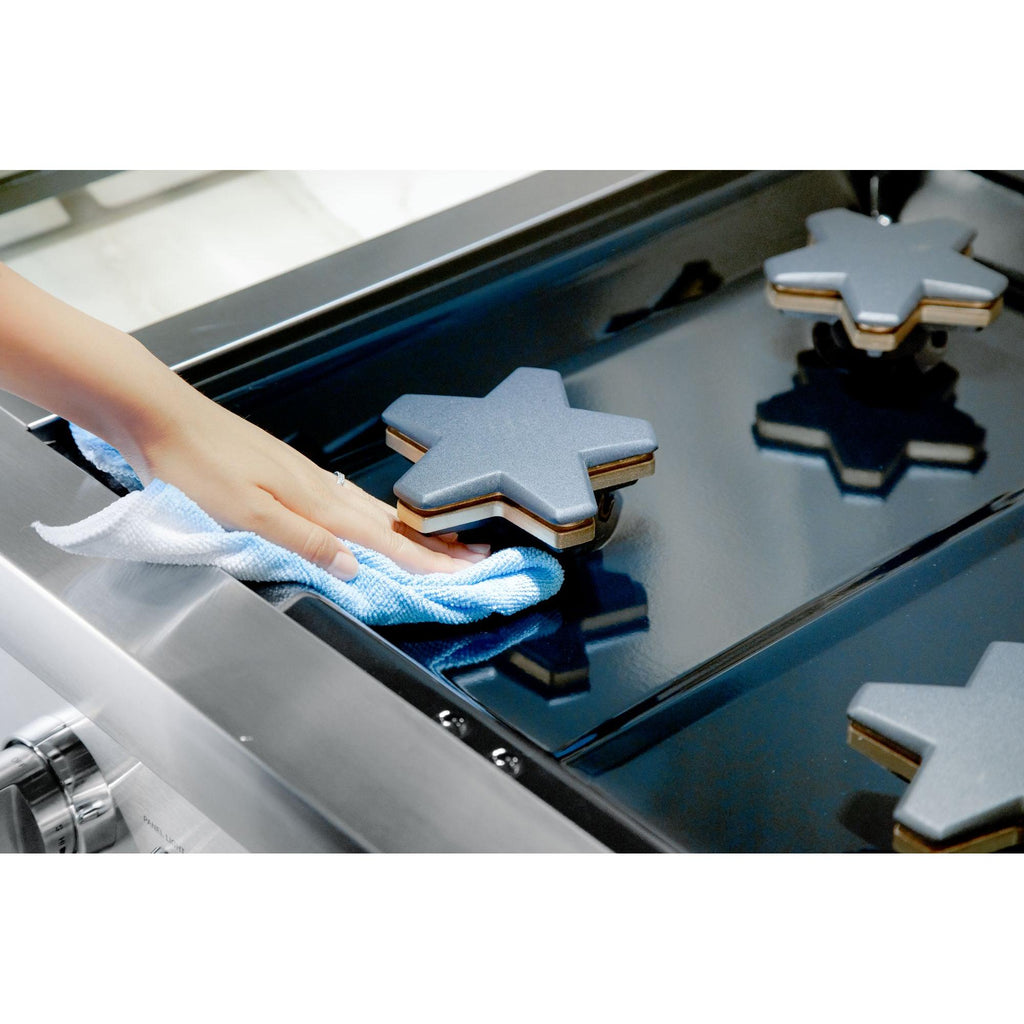

STAR® BURNERS
The Star® Burner’s unique shape isn’t just for show. It creates a perimeter 56% longer than a round burner of the same size, which allows the inclusion of more flame ports. The result is a stove burner that delivers superior flame spread and a reduced cold spot for faster and more even heating across any size pan.
Additional Features
THIRD ELEMENT CONVECTION
Offers precise airflow for cooking on multiple levels without flavor transfer.
PRECISION SIMMERING
Precision simmering capabilities as low as 100°F (375 BTU) with 4 ExtraLow® Simmer burners.
TWO HOUR RAPID SELF-CLEANING
The Pro Harmony dual-fuel range offers the fastest self-cleaning cycle on the market at just 2 hours (including cool down). Even the 48" model cleans both ovens simultaneously in just 2 hours.
Specifications
General
Series Name
Pro Harmony®
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
2-Hour Self-Clean Mode
Cooktop
Burners/Elements
6
Burners/Elements Output
• Back Left Burner: 15,000 BTU
• Front Left Burner: 18,000 BTU
• Back Center Burner: 15,000 BTU
• Front Center Burner BTU: 18,000
• Back Right Burner BTU: 15,000
• Front Right Burner BTU: 18,000
• Bake Element: 2000 W
• Convection Element: 2750 W
• Front Left Burner: 18,000 BTU
• Back Center Burner: 15,000 BTU
• Front Center Burner BTU: 18,000
• Back Right Burner BTU: 15,000
• Front Right Burner BTU: 18,000
• Bake Element: 2000 W
• Convection Element: 2750 W
Burners
Sealed
Oven
Capacity (cu. ft.)
5 cu.ft.
Number of Ovens
Single
Programs
• Bake
• Convection Bake
• Convection Roast
• Roast
• Convection Broil
• Broil
• Convection Bake
• Convection Roast
• Roast
• Convection Broil
• Broil
Features
Technologies
• Star® Burner
• ExtraLow®
• Home Connect™ (Wi-Fi Enabled)
• Convection Technology
• ExtraLow®
• Home Connect™ (Wi-Fi Enabled)
• Convection Technology
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Full Access® Telescopic Rack, With Integrated Easy-grip Handle
• Powerful Halogen Lighting Illuminates The Oven Cavity
• Precision Simmering Capabilities As Low As 100°f (375 Btu) With 2 Extralow® Simmer Burners
• Electronic Oven Control Ensures Precise Heating
• Large Oven Door Window For Maximum Viewing
• Powerful Halogen Lighting Illuminates The Oven Cavity
• Precision Simmering Capabilities As Low As 100°f (375 Btu) With 2 Extralow® Simmer Burners
• Electronic Oven Control Ensures Precise Heating
• Large Oven Door Window For Maximum Viewing
Electrical Information
Information
• 240 V / 208 V
• 60 Hz
• 35 A
• 60 Hz
• 35 A
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
• 1 Island Trim
• 1 Broiler Pan
• 1 Broiler Pan
Optional
• 12" Professional Chopping Block: PA12CHPBLK
• Professional Griddle: PAGRIDDLE
• Professional Griddle: PAGRIDDLE
Dimensions
Class Width
36"
Width
35.94 inch(es) / 91.3 cm
Height
35.87 inch(es) / 91.12 cm
Depth (Including Handles)
24.75 inch(es) / 62.87 cm
Weight
409.99 lb(s) / 185.97 kg
Shipping Dimensions
Width
43.5 inch(es) / 110.49 cm
Height
49.25 inch(es) / 125.1 cm
Depth
40.37 inch(es) / 102.55 cm
Weight
417 lb(s) / 189.15 kg
Warranty
Warranty
Limited 2 Years Parts and Labor
UPC
UPC#
825225925200
