Features
EXTRALOW®
The ExtraLow® feature provides the widest variety of temperature control of any simmer system. It cycles on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching. THERMADOR EXCLUSIVE

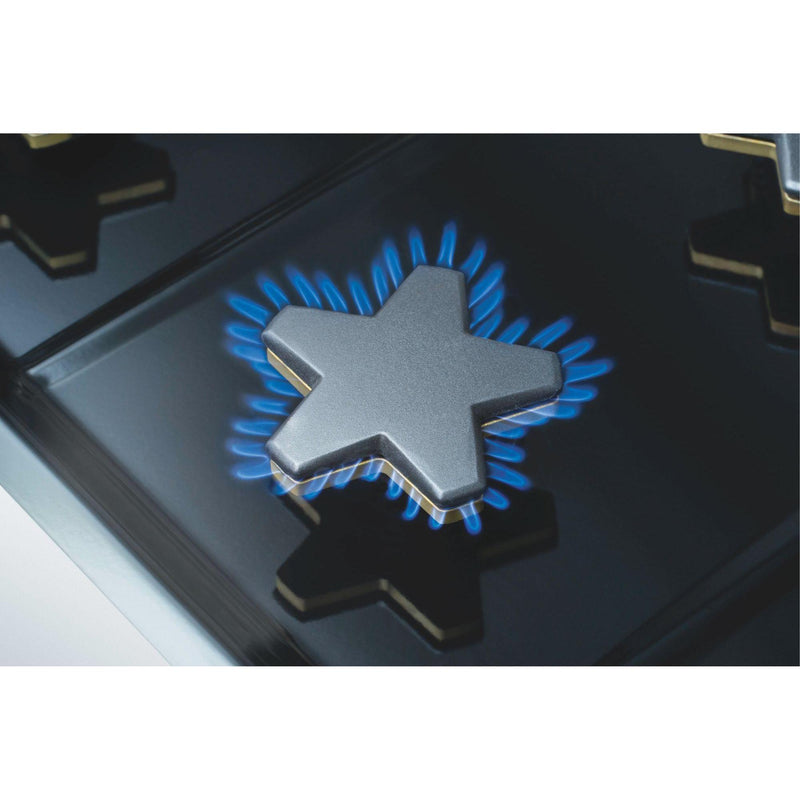

STAR® BURNERS
The Star® Burner’s unique shape isn’t just for show. It creates a perimeter 56% longer than a round burner of the same size, which allows the inclusion of more flame ports. The result is a stove burner that delivers superior flame spread and a reduced cold spot for faster and more even heating across any size pan.
Additional Features
STAR-K CERTIFIED
Thermador Professional® Ranges are Star-K certified making it possible to use them on the Sabbath or the Holidays.
TRUE CONVECTION
offers precise airflow for cooking on multiple levels without flavor transfer.
Specifications
General
Series Name
Pro Grand® Professional
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
2.5-Hour Self-Clean Mode
Cooktop
Burners/Elements
5
Burners/Elements Output
• Power of Back Left Burner BTU: 15,000 and XLO
• Power of Front Left Burner BTU: 22,000 and XHI / XLO
• Power of Center 12" Electric Griddle: 1,630 W (6-Pass)
• Power of Back Right Burner BTU: 15,000 and XLO
• Power of Front Right Burner BTU: 18,000 and XLO
• Power of Front Left Burner BTU: 22,000 and XHI / XLO
• Power of Center 12" Electric Griddle: 1,630 W (6-Pass)
• Power of Back Right Burner BTU: 15,000 and XLO
• Power of Front Right Burner BTU: 18,000 and XLO
Burner/Element Size
12" Electric Griddle
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
5.7 cu.ft.
Number of Ovens
Single
Programs
• Bake
• Convection Bake
• Roast
• Broil
• Convection Bake
• Roast
• Broil
Features
Technologies
• ExtraLow® Burners
• Star® Burner
• True Convection Techology
• Hydraulic SoftClose® hinges
• Home Connect™ (Wi-Fi enabled)
• Star® Burner
• True Convection Techology
• Hydraulic SoftClose® hinges
• Home Connect™ (Wi-Fi enabled)
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Wi-Fi
Yes
Additional Information
• 2 Interior Lights
• Bake Power: 23,700 BTU
• Broil Power: 17,500 (Infrared) BTU
• Porcelain Cooktop Surface
• Bake Power: 23,700 BTU
• Broil Power: 17,500 (Infrared) BTU
• Porcelain Cooktop Surface
Electrical Information
Information
• 120 V
• 60 Hz
• 20 A
• 60 Hz
• 20 A
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Optional
• Wok ring: PWOKRINGHC
• Chopping block / Cutting board: PA12CHPBLK
• Professional griddle, sits on top of grates over 2 star burners, high-release coating: PAGRIDDLE
• LP conversion kit gas pro ranges (4 and 6 burner): PALPKITGW
• Metallic blue knob kit: PAKNOBLUWG
• 12" professional indoor grill cover: PA12GRILFW
• 7" low back backguard: PA36WLBH
• Chopping block / Cutting board: PA12CHPBLK
• Professional griddle, sits on top of grates over 2 star burners, high-release coating: PAGRIDDLE
• LP conversion kit gas pro ranges (4 and 6 burner): PALPKITGW
• Metallic blue knob kit: PAKNOBLUWG
• 12" professional indoor grill cover: PA12GRILFW
• 7" low back backguard: PA36WLBH
Dimensions
Class Width
36"
Width
35.94 inch(es) / 91.3 cm
Height
35.75 inch(es) / 90.8 cm
Depth (Without Handles)
29.02 inch(es) / 73.7 cm
Depth (Including Handles)
30.63 inch(es) / 77.8 cm
Weight
353 lb(s) / 160.12 kg
Additional Dimensions
Required Cutout Size (HxWxD): 36 3/4" – 36 3/4" x 36" x 24" – 25 1/8"
Warranty
Warranty
Limited 2 Years Parts and Labor
UPC
UPC#
825225928072
