Features
EXTRALOW®
The ExtraLow® feature provides the widest variety of temperature control of any simmer system. It cycles on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching. THERMADOR EXCLUSIVE
WARMING DRAWER
This spacious drawer can hold and warm up dinner plates

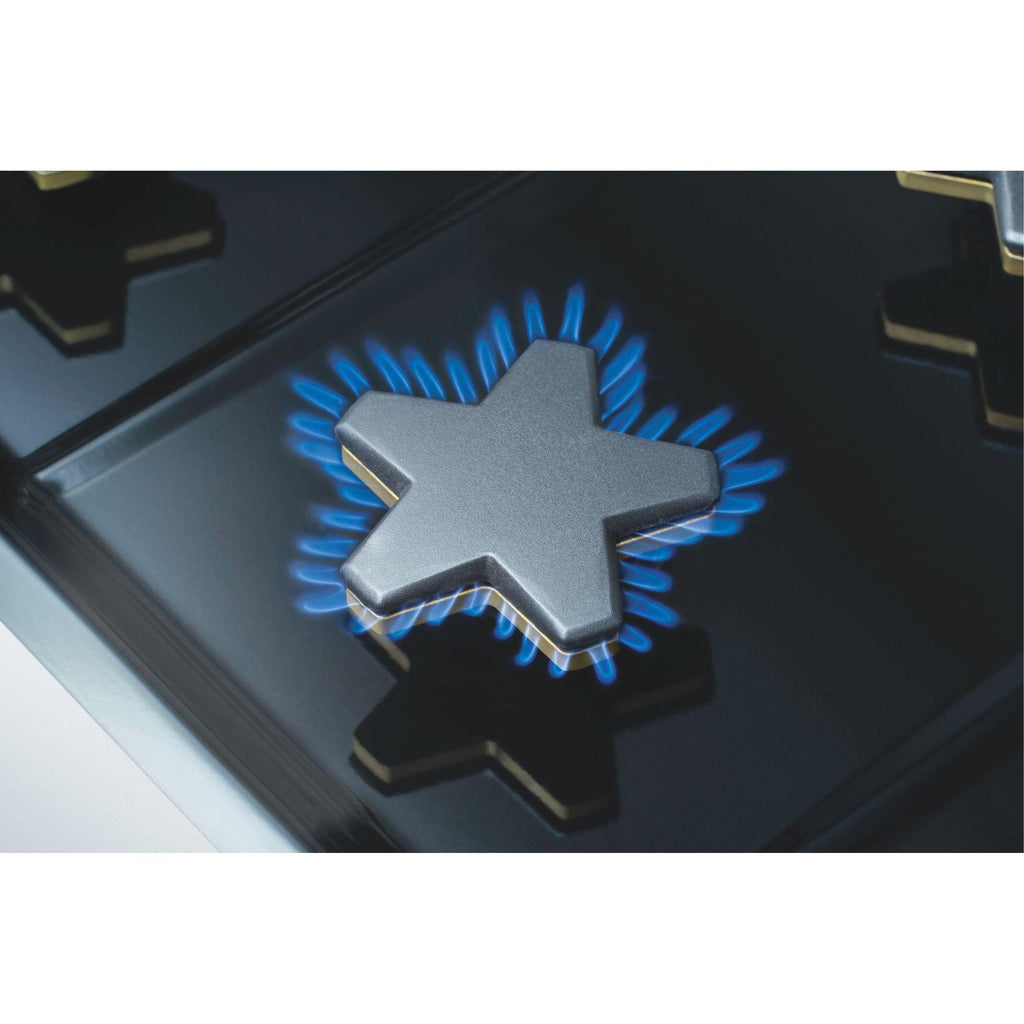

STAR® BURNERS
The Star® Burner’s unique shape isn’t just for show. It creates a perimeter 56% longer than a round burner of the same size, which allows the inclusion of more flame ports. The result is a stove burner that delivers superior flame spread and a reduced cold spot for faster and more even heating across any size pan.
STEAM AND CONVECTION
Steam and Convection Cooking provides unrivaled taste and quality.
Food stays moist on the inside and is perfect on the outside.
Additional Features
STAR-K CERTIFIED
Thermador Professional® Ranges are Star-K certified making it possible to use them on the Sabbath or the Holidays.
Specifications
General
Series Name
Pro Grand® Professional
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
2.5-Hour Self-Clean Mode
Cooktop
Burners/Elements
7
Burners/Elements Output
• Back Left: 15,000 BTU (XLO)
• Front Left: 22,000 BTU (XHI / XLO)
• Back Center: 15,000 BTU
• Front Center: 18,000 BTU
• Center: Electric Griddle 1,630 W (6-Pass)
• Back Right: 15,000 BTU (XLO)
• Front Right: 18,000 BTU (XLO)
• Front Left: 22,000 BTU (XHI / XLO)
• Back Center: 15,000 BTU
• Front Center: 18,000 BTU
• Center: Electric Griddle 1,630 W (6-Pass)
• Back Right: 15,000 BTU (XLO)
• Front Right: 18,000 BTU (XLO)
Burner/Element Size
12" Electric Griddle
Burners
Sealed
Other
Griddle
Oven
Capacity (cu. ft.)
• Total Capacity: 6.5 cu.ft.
• Large oven: 4.9 cu.ft.
• Small oven: 1.6 cu.ft.
• Large oven: 4.9 cu.ft.
• Small oven: 1.6 cu.ft.
Number of Ovens
Double
Programs
Large Oven:
• Bake • Convection Bake • True Convection • Convection Roast • Roast • Convection Broil • Broil
Small Oven: • Proof
• Keep Warm
• Steam Programs
• True Convection
• Slow Cook
• Defrost
• Reheat
• Steam Convection
• Steam
• Bake • Convection Bake • True Convection • Convection Roast • Roast • Convection Broil • Broil
Small Oven: • Proof
• Keep Warm
• Steam Programs
• True Convection
• Slow Cook
• Defrost
• Reheat
• Steam Convection
• Steam
Features
Technologies
• Home Connect™ (Wi-Fi Enabled) (Large Oven Only
• Hydraulic SoftClose®
• ExtraHigh Star® Burner
• 4 ExtraLow® Burners
• Hydraulic SoftClose®
• ExtraHigh Star® Burner
• 4 ExtraLow® Burners
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Non-Stick Griddle with Even Heating Across the Entire Surface
• 3 Telescopic Rack (Large Oven)
• Interior Lights: 2 (Large Oven), 1 (Small Oven)
• Bake Power: 2,000 W (Large Oven)
• Broil Power: 4,000 W (Large Oven)
• Convection Power: 2,750 W (Large Oven)
• Steam Bowl Element: 1,800 W
• Steam Convection: 2,750 W
• 3 Telescopic Rack (Large Oven)
• Interior Lights: 2 (Large Oven), 1 (Small Oven)
• Bake Power: 2,000 W (Large Oven)
• Broil Power: 4,000 W (Large Oven)
• Convection Power: 2,750 W (Large Oven)
• Steam Bowl Element: 1,800 W
• Steam Convection: 2,750 W
Drawer Features
Power
400 W
Warming
Yes
Electrical Information
Information
• 240 V / 208 V, 60Hz
• 50 A
• 60 Hz
• 50 A
• 60 Hz
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
• 3 Telescopic Racks
• 1 Small Standard Rack
• Multi-Point Meat Probe
• 1 Griddle Plate
• 1 Grease Tray
• 1 Steam Pan
• 1 Large Broil Pan
• 1 Small Broil Pan
• Island Trim
• 1 Small Standard Rack
• Multi-Point Meat Probe
• 1 Griddle Plate
• 1 Grease Tray
• 1 Steam Pan
• 1 Large Broil Pan
• 1 Small Broil Pan
• Island Trim
Optional
• PWOKRINGHC Wok Ring
• PAGRIDDLE Professional Griddle, Sits on Top of Grates Over 2 Star Burners, High-Release Coating
• PA12GRILFW 12" Grill Plate with Tray (for Griddle Models), Fusion Coating
• PA48WLBSG 7" Low Back Backguard*
• PAKNOBLUWG Metallic Blue Knob Kit
• PA12CHPBLK Chopping Block / Cutting Board
• PA12GRILLW 12" Pro Grill Plate with Tray, (for Griddle Models), Non-Fusion Coating
• PAGRIDLFW 12" Pro Griddle with Tray, (Fusion Coating Option for Griddle Models)
• PA12LCVRW 12" Professional Griddle Cover
• PA48WTKG Toekick
• CS2XLH Cooking Pan, Full Size, 1 5/8" Deep
• CS2LH Baking Tray, Full Size, 1 1/4" Deep
• CS1XLPH Perforated Cooking Pan, Half Size, 1 5/8" Deep
• CSRACKH Wire Rack
• CS2XLPH Perforated Cooking Pan, Full Size, 1 5/8" Deep
• CS1XLH Cooking Pan, Half Size, 2 1/2" Deep
• PALPKITHW LP Conversion Kit Dual-Fuel Pro Ranges and Rangetops (4 and 6 Burner)
• PAGRIDDLE Professional Griddle, Sits on Top of Grates Over 2 Star Burners, High-Release Coating
• PA12GRILFW 12" Grill Plate with Tray (for Griddle Models), Fusion Coating
• PA48WLBSG 7" Low Back Backguard*
• PAKNOBLUWG Metallic Blue Knob Kit
• PA12CHPBLK Chopping Block / Cutting Board
• PA12GRILLW 12" Pro Grill Plate with Tray, (for Griddle Models), Non-Fusion Coating
• PAGRIDLFW 12" Pro Griddle with Tray, (Fusion Coating Option for Griddle Models)
• PA12LCVRW 12" Professional Griddle Cover
• PA48WTKG Toekick
• CS2XLH Cooking Pan, Full Size, 1 5/8" Deep
• CS2LH Baking Tray, Full Size, 1 1/4" Deep
• CS1XLPH Perforated Cooking Pan, Half Size, 1 5/8" Deep
• CSRACKH Wire Rack
• CS2XLPH Perforated Cooking Pan, Full Size, 1 5/8" Deep
• CS1XLH Cooking Pan, Half Size, 2 1/2" Deep
• PALPKITHW LP Conversion Kit Dual-Fuel Pro Ranges and Rangetops (4 and 6 Burner)
Dimensions
Class Width
48"
Width
47.95 inch(es) / 121.8 cm
Height
35.75 inch(es) / 90.8 cm
Depth (Without Handles)
29.02 inch(es) / 73.7 cm
Depth (Including Handles)
30.63 inch(es) / 77.8 cm
Weight
465.99 lb(s) / 211.37 kg
Additional Dimensions
Required Cutout Size (HxWxD): 35 3/4" – 36 3/4" x 48" x 24" – 25 1/8"
Warranty
Warranty
Limited 2 Years Parts and Labor
UPC
UPC#
825225933359
