Features
EXTRALOW®
The ExtraLow® feature provides the widest variety of temperature control of any simmer system. It cycles on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching. THERMADOR EXCLUSIVE

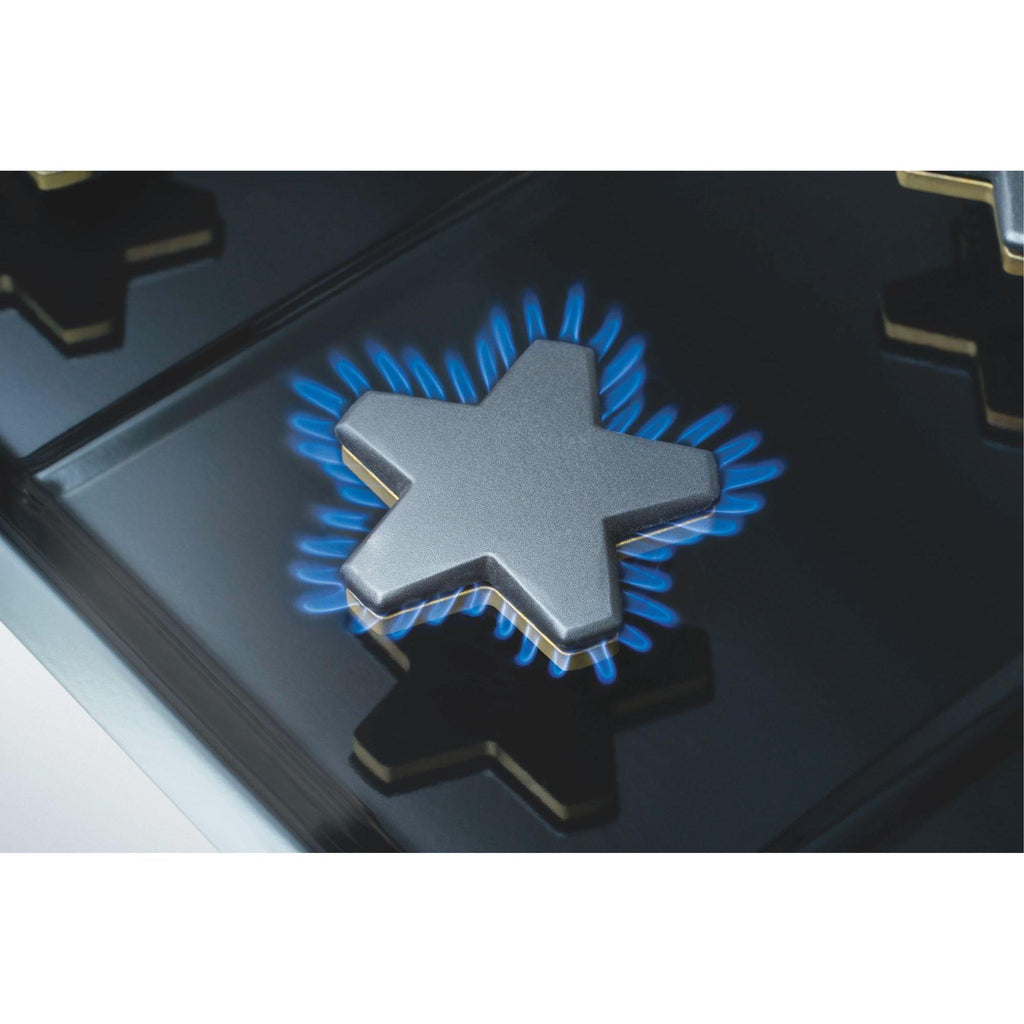

STAR® BURNERS
The Star® Burner’s unique shape isn’t just for show. It creates a perimeter 56% longer than a round burner of the same size, which allows the inclusion of more flame ports. The result is a stove burner that delivers superior flame spread and a reduced cold spot for faster and more even heating across any size pan.
Additional Features
STAR-K CERTIFIED
Thermador Professional® Ranges are Star-K certified making it possible to use them on the Sabbath or the Holidays.
TRUE CONVECTION
offers precise airflow for cooking on multiple levels without flavor transfer.
Specifications
General
Series Name
Pro Grand® Professional
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
7
Burners/Elements Output
• Power of Back Left Burner BTU: 15,000 and XLO
• Power of Front Left Burner BTU: 22,000 and XHI / XLO
• Power of Back Center Burner BTU: 15,000
• Power of Front Center Burner BTU: 18,000
• Power of Right Back Center Burner BTU: 15,000 and XLO
• Power of Right Front Center Burner BTU: 18,000 and XLO
• Power of Far Right Induction: 3,600 W
• Power of Front Left Burner BTU: 22,000 and XHI / XLO
• Power of Back Center Burner BTU: 15,000
• Power of Front Center Burner BTU: 18,000
• Power of Right Back Center Burner BTU: 15,000 and XLO
• Power of Right Front Center Burner BTU: 18,000 and XLO
• Power of Far Right Induction: 3,600 W
Burner/Element Size
12" Induction Surface
Burners
Sealed
Elements
Induction
Other
Griddle
Oven
Capacity (cu. ft.)
• Total Capacity: 6.5 cu.ft.
• Large Oven: 4.9 cu.ft.
• Small Oven: 1.6 cu.ft.
• Large Oven: 4.9 cu.ft.
• Small Oven: 1.6 cu.ft.
Number of Ovens
Double
Programs
• Large Oven:
• Bake
• Convection Bake
• True Convection
• Convection Roast
• Roast
• Convection Broil
• Broil
• Small Oven:
• Proof
• Keep Warm
• Steam Programs
• True Convection
• Slow Cook
• Defrost
• Reheat
• Steam Convection
• Steam
• Bake
• Convection Bake
• True Convection
• Convection Roast
• Roast
• Convection Broil
• Broil
• Small Oven:
• Proof
• Keep Warm
• Steam Programs
• True Convection
• Slow Cook
• Defrost
• Reheat
• Steam Convection
• Steam
Features
Technologies
• ExtraLow® Burners
• ExtraHigh Star® Burner
• Hydraulic SoftClose® Hinges
• Induction Technology
• True Convection Technology
• Home Connect™ (Wi-Fi Enabled) (Large Oven Only)
• ExtraHigh Star® Burner
• Hydraulic SoftClose® Hinges
• Induction Technology
• True Convection Technology
• Home Connect™ (Wi-Fi Enabled) (Large Oven Only)
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
Yes
Additional Information
• Sabbath (Large Oven and Small Oven)
• Self-Clean(Large Oven and Small Oven)
• Telescopic Racks (Large Oven): 3
• Interior Lights(Large Oven/ Small Oven): 2 / 1
• Bake Power(Large Oven): 2,000 W
• Broil Power (Large Oven): 4,000 W
• Convection Power (Large Oven): 2,750 W
• Self-Clean(Large Oven and Small Oven)
• Telescopic Racks (Large Oven): 3
• Interior Lights(Large Oven/ Small Oven): 2 / 1
• Bake Power(Large Oven): 2,000 W
• Broil Power (Large Oven): 4,000 W
• Convection Power (Large Oven): 2,750 W
Drawer Features
Power
400 W
Warming
Yes
Electrical Information
Information
• 240 V / 208 V
• 60 Hz
• 50 A
• 60 Hz
• 50 A
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Included
• 3 Telescopic Racks
• 1 Steam Pan
• 1 Sm. Telescopic Racks
• Multi-Point Meat Probe
• 1 Lg Broil Pan
• 1 Sm. Broil Pan
• Island Trim
• 1 Steam Pan
• 1 Sm. Telescopic Racks
• Multi-Point Meat Probe
• 1 Lg Broil Pan
• 1 Sm. Broil Pan
• Island Trim
Optional
• PWOKRINGHC Wok Ring
• PAGRIDDLE Professional Griddle, Sits on Top of Grates Over
• PA48WLBSG 7" Low Back Backguard*
• PALPKITHW LP Conversion Kit Dual-Fuel Pro Ranges and Rangetops (4 and 6 Burner)
• PAKNOBLUWG Metallic Blue Knob Kit
• PA48WTKG Toekick
• PAALTKITGW Natural Gas Models from 5,400 ft.–10,200 ft.
• TROASTERT Stainless Steel Roaster Pan
• CHEFSPAN08 10" Stainless Steel Pan
• TEPPAN1016 Liberty™ Induction Teppan-Yaki
• CS2XLH Cooking Pan, Full Size, 1 5/8" Deep
• CS2LH Baking Tray, Full Size, 1 1/4" Deep
• CS1XLPH Perforated Cooking Pan, Half Size, 1 5/8" Deep
• CSRACKH Wire Rack
• CS2XLPH Perforated Cooking Pan, Full Size, 1 5/8" Deep
• CS1XLH Cooking Pan, Half Size, 2 1/2" Deep
• PAGRIDDLE Professional Griddle, Sits on Top of Grates Over
• PA48WLBSG 7" Low Back Backguard*
• PALPKITHW LP Conversion Kit Dual-Fuel Pro Ranges and Rangetops (4 and 6 Burner)
• PAKNOBLUWG Metallic Blue Knob Kit
• PA48WTKG Toekick
• PAALTKITGW Natural Gas Models from 5,400 ft.–10,200 ft.
• TROASTERT Stainless Steel Roaster Pan
• CHEFSPAN08 10" Stainless Steel Pan
• TEPPAN1016 Liberty™ Induction Teppan-Yaki
• CS2XLH Cooking Pan, Full Size, 1 5/8" Deep
• CS2LH Baking Tray, Full Size, 1 1/4" Deep
• CS1XLPH Perforated Cooking Pan, Half Size, 1 5/8" Deep
• CSRACKH Wire Rack
• CS2XLPH Perforated Cooking Pan, Full Size, 1 5/8" Deep
• CS1XLH Cooking Pan, Half Size, 2 1/2" Deep
Dimensions
Class Width
48"
Width
47.95 inch(es) / 121.8 cm
Height
35.75 inch(es) / 90.8 cm
Depth (Without Handles)
29.02 inch(es) / 73.7 cm
Depth (Including Handles)
30.63 inch(es) / 77.8 cm
Weight
465.99 lb(s) / 211.37 kg
Additional Dimensions
Required Cutout Size (HxWxD): 35 3/4" – 36 3/4" x 48" x 24" – 25 1/8"
Warranty
Warranty
Limited 2 Years Parts and Labor
UPC
UPC#
825225933755
