Features
DIAMOND SHAPED ICE FOR ELEVATED BEVERAGES
With a dedicated ice zone, Thermador Diamond Ice is an eye-catching addition to any party with a unique shape that keeps drinks cold. Use Diamond Ice in your favorite craft cocktails to make a lasting impression made with a filtered automatic ice maker.

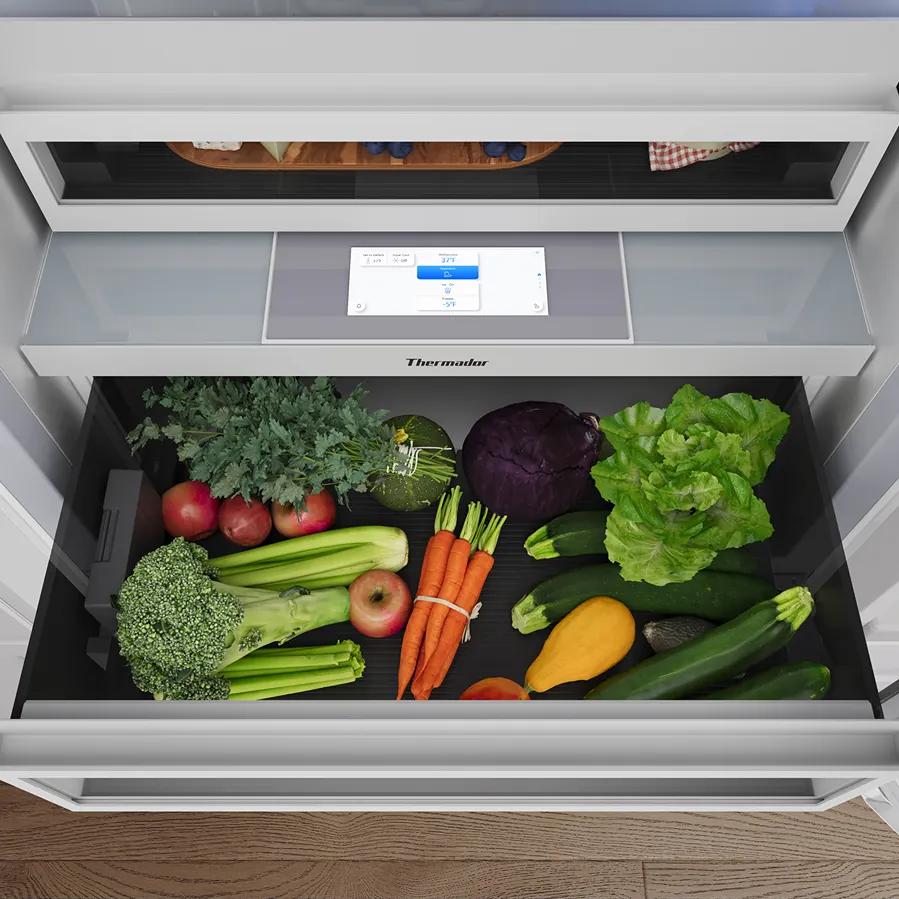

THERMAFRESH® PRO

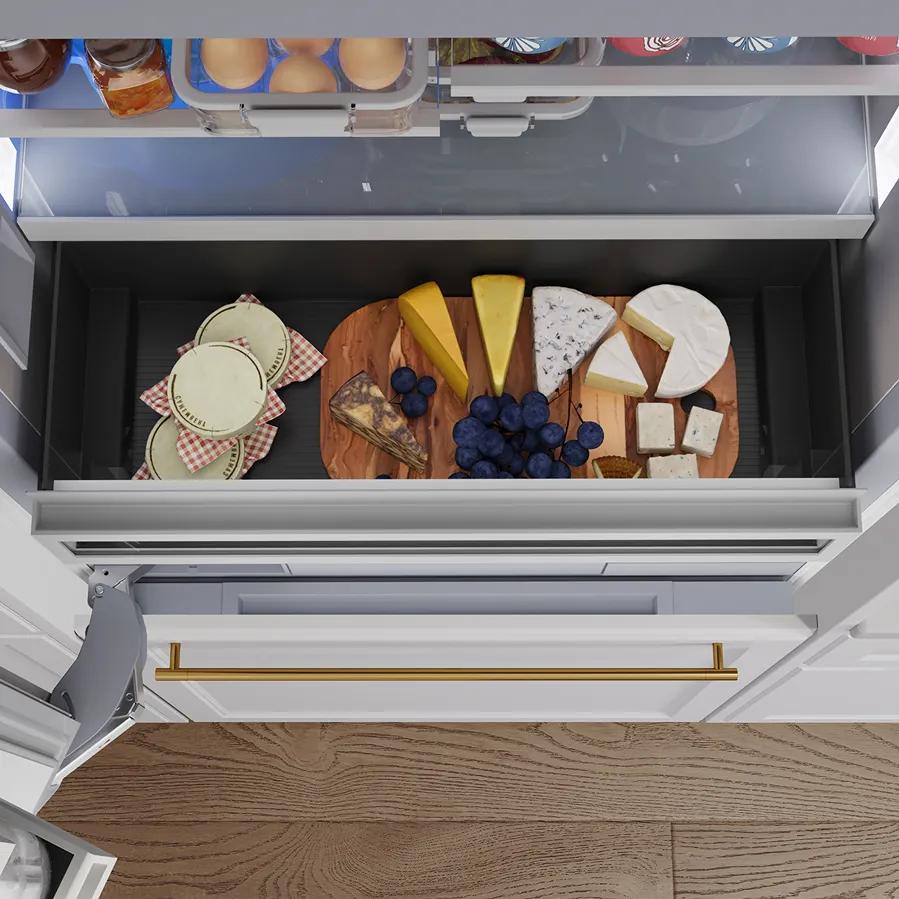

ThermaFresh® Pro enables you to set the optimal temperature and humidity. The ThermaFresh® Drawer features an ethylene absorber that slows down the ripening process so produce stays fresh longer.
THERMAFRESH® PRO.
ThermaFresh® Pro enables you to set the optimal temperature and humidity. The ThermaFresh® Drawer features an ethylene absorber that slows down the ripening process so produce stays fresh longer.

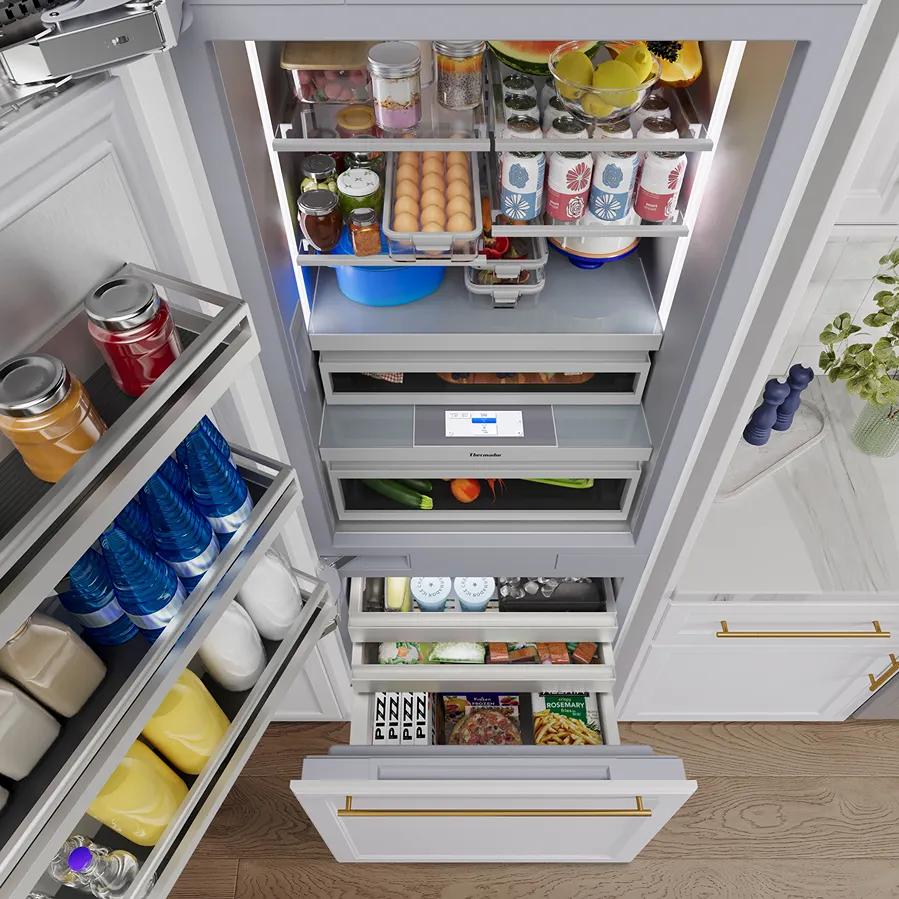

ADJUSTABLE SHELVING TO MEET YOUR STORAGE NEEDS.
Split-level shelves allow for increased personalization to meet your storage needs.

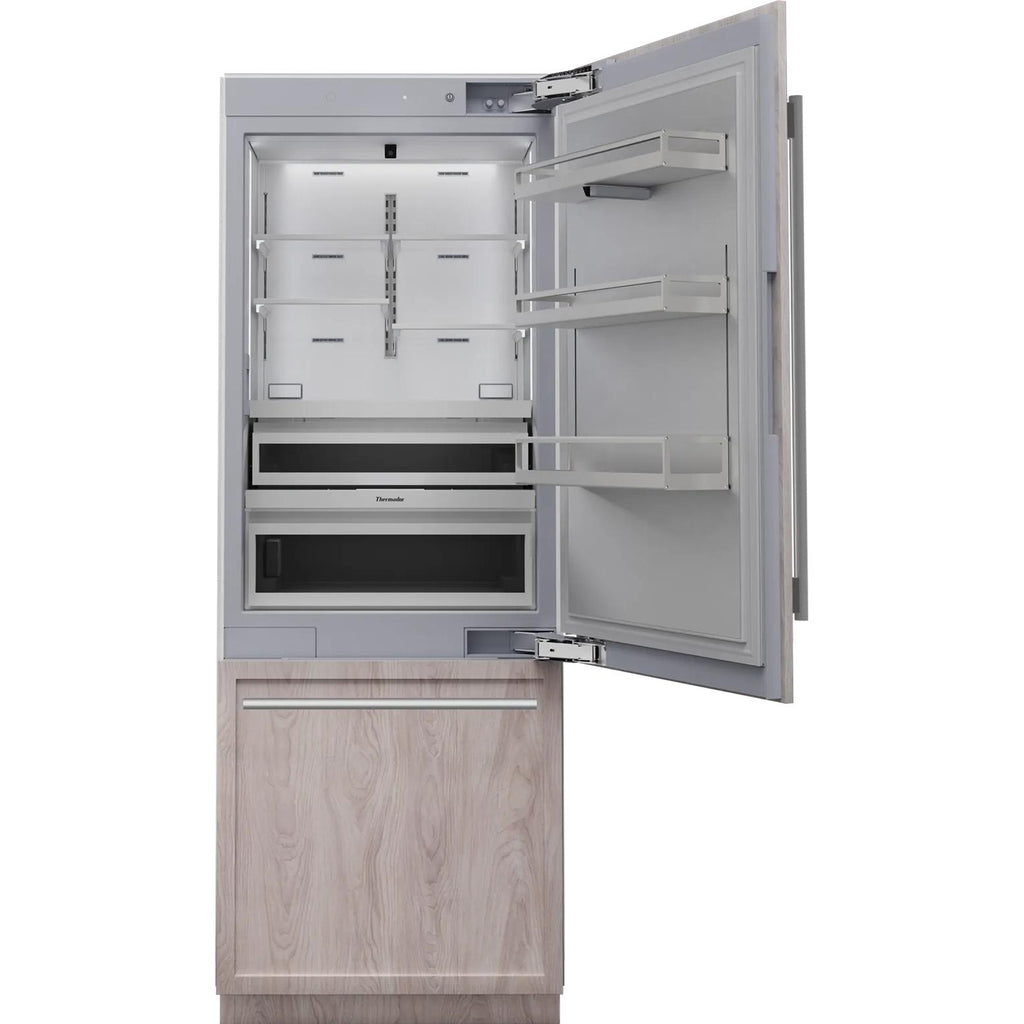

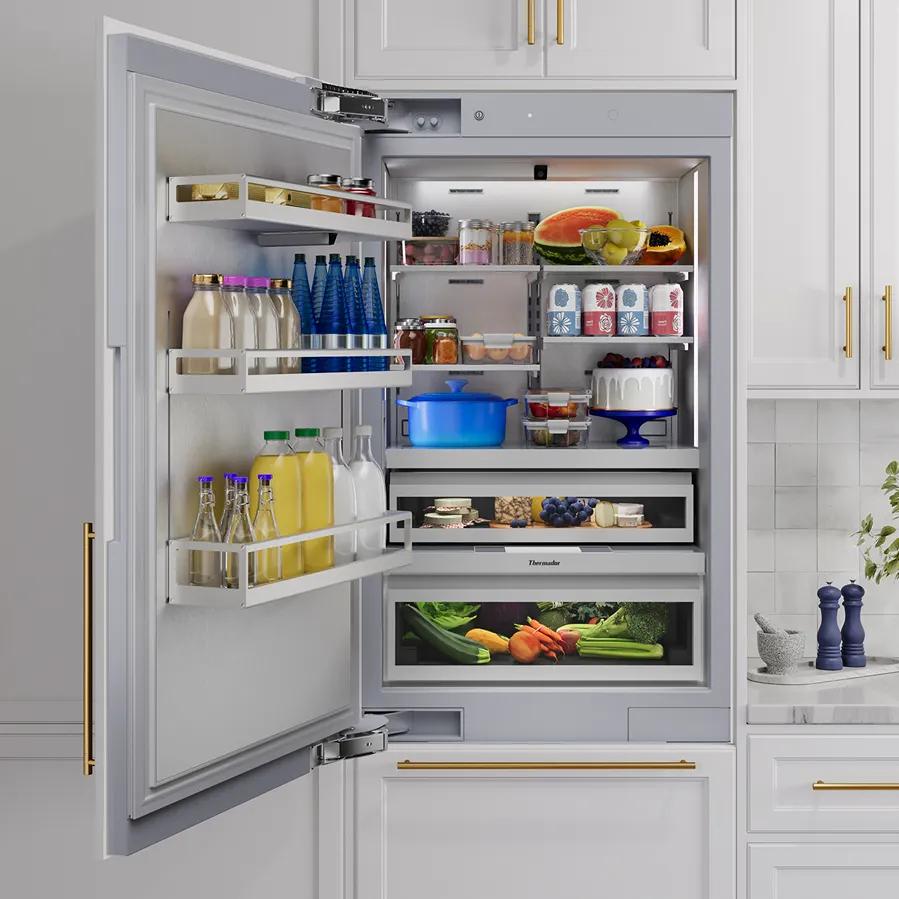

LED THEATER LIGHTING
The theater-style, diffused lighting ensures visibility while limiting hot spots. Model shown in image is T30IR905SP Fresh Food Column.

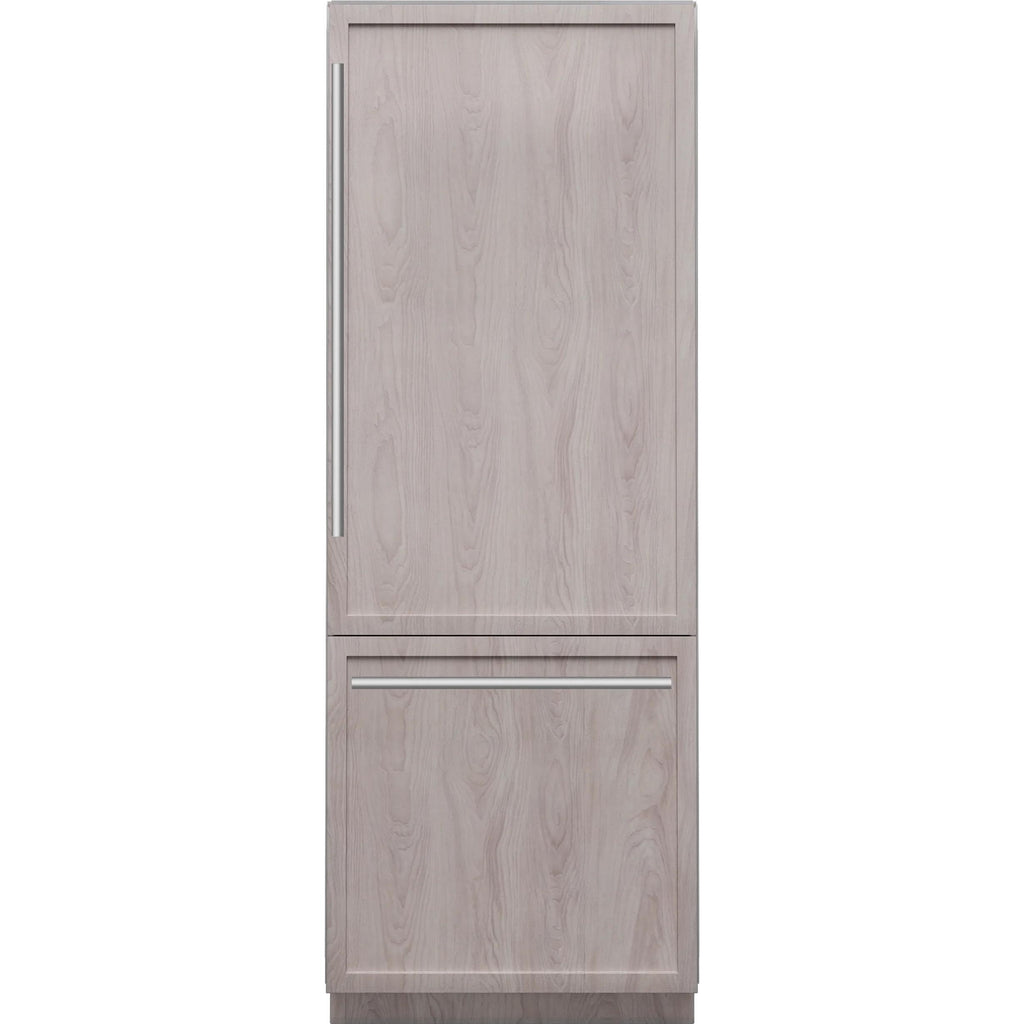

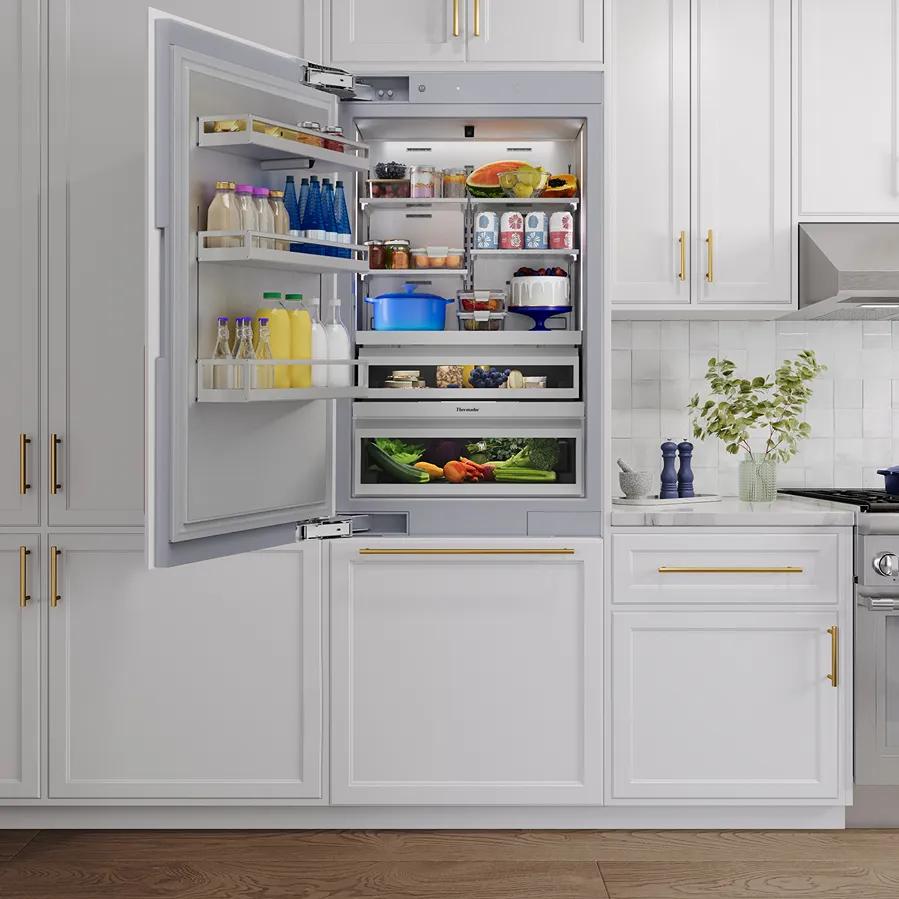

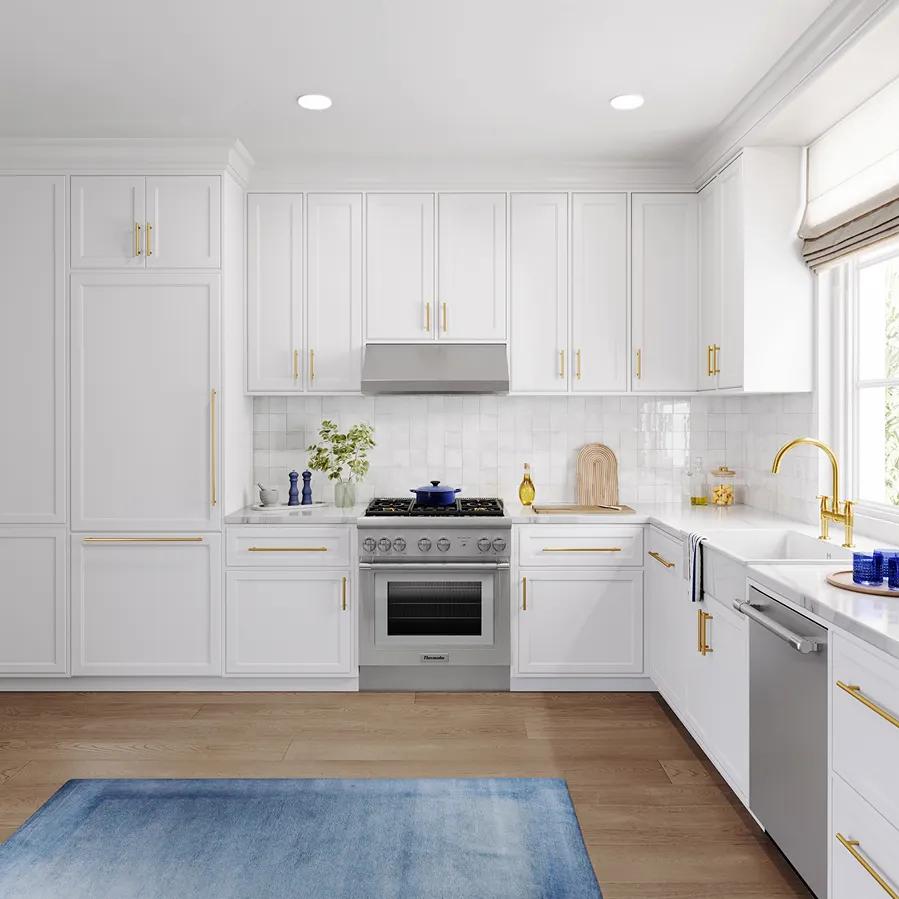

CUSTOM PANEL READY FOR SEAMLESS INTEGRATION
Custom Panel Ready with front paneling that matches your kitchen’s custom cabinetry for complete integration.
Additional Features
SOFTCLOSE® DOORS AND DRAWERS FOR A QUIET EXPERIENCE
SoftClose® doors provide a quiet luxurious experience each time you open or close the door. SoftClose® Drawers offer an ultra-smooth glide when you open or close the drawers.
Specifications
General
Series Name
Freedom® Collection
Refrigerator Type
Bottom Freezer
Installation Type
Built-In
Counter-Depth
No
Door Hinge
Right
Reversible Doors
Yes
Color
Panel Ready
Manufacturer Color
Panel Ready
Capacity
Total
16.6 cu. ft.
Refrigerator
11 cu. ft.
Freezer
5.6 cu. ft.
Refrigerator Features
Technologies
• SoftClose® Door
• Wi-Fi-Enabled for Control with Home Connect® App
• ThermaFresh® Pro
• Multi-Air-Flow
• Wi-Fi-Enabled for Control with Home Connect® App
• ThermaFresh® Pro
• Multi-Air-Flow
Control Lock
Yes
Digital Display
Yes
Door Alarm
Yes
Frost Free
Yes
Interior Light
Yes
Wi-Fi
Yes
Crisper Drawers
Yes
Deli Drawer/Meat
Yes
Additional Information
• Dual Compressor
• Dual Evaporators
• Modes: Eco, Sabbath, Shopping, Vacation, Demo, Quick Ice, SuperCool, SuperFreeze®
• Air Fresh Filter
• Ethylene Filter (6 Months)
• Full Extension ThermaFresh® Pro Crisper Drawer: 1
• ThermaFresh® Pro Crisper Drawer Modes (°F / Humidity): Vegetables (32°F / High), Fruit (32°F / Low), Meat (30°F / Low), Fish (30°F / Low), Deli (34°F / Low), Cheese (35°F / Low), Beverages (34°F / Low), Mixed (32°F / Low), Charcuterie (35°F / Low)
• Deli Drawer: 1
• Storage Shelves: 4 Adjustable, 1 Fixed
• Standard Door Bins: 2 Adjustable, 1 Fixed
• LED Interior and Drawer Lighting
• Independent Cooling Systems: 2
• Remote Monitoring and Control
• Remote System Upgrade
• Camera in the Appliance: 3
• Dual Evaporators
• Modes: Eco, Sabbath, Shopping, Vacation, Demo, Quick Ice, SuperCool, SuperFreeze®
• Air Fresh Filter
• Ethylene Filter (6 Months)
• Full Extension ThermaFresh® Pro Crisper Drawer: 1
• ThermaFresh® Pro Crisper Drawer Modes (°F / Humidity): Vegetables (32°F / High), Fruit (32°F / Low), Meat (30°F / Low), Fish (30°F / Low), Deli (34°F / Low), Cheese (35°F / Low), Beverages (34°F / Low), Mixed (32°F / Low), Charcuterie (35°F / Low)
• Deli Drawer: 1
• Storage Shelves: 4 Adjustable, 1 Fixed
• Standard Door Bins: 2 Adjustable, 1 Fixed
• LED Interior and Drawer Lighting
• Independent Cooling Systems: 2
• Remote Monitoring and Control
• Remote System Upgrade
• Camera in the Appliance: 3
Freezer Features
Additional Freezer Information

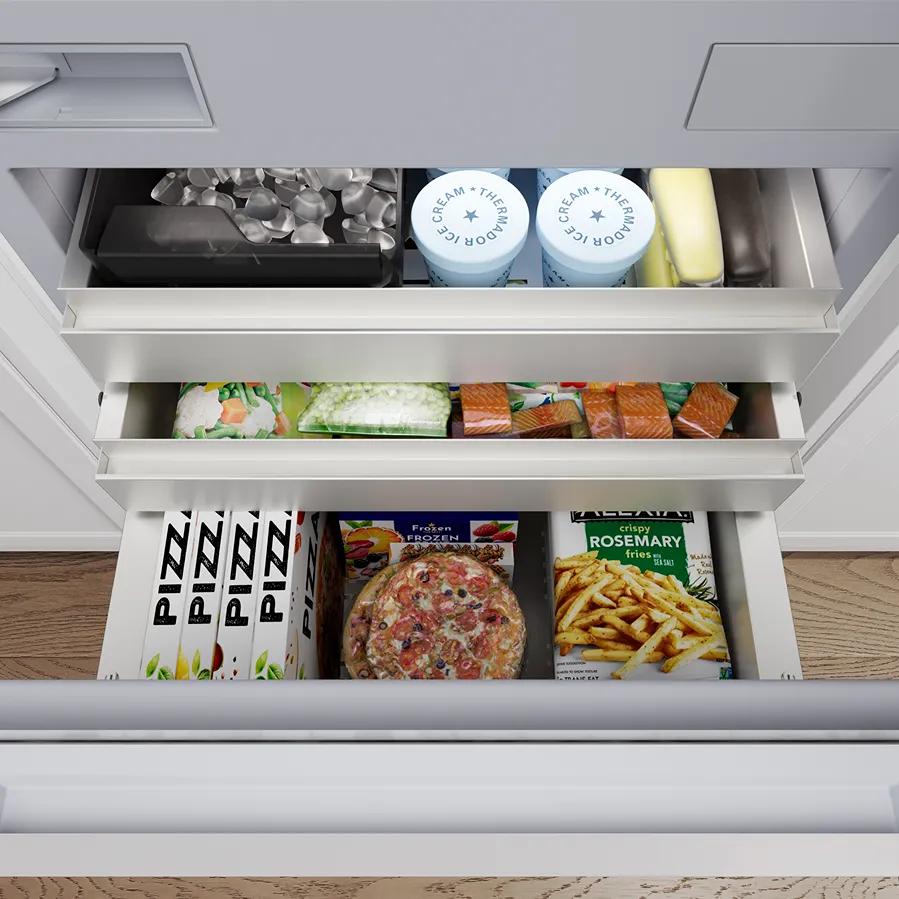

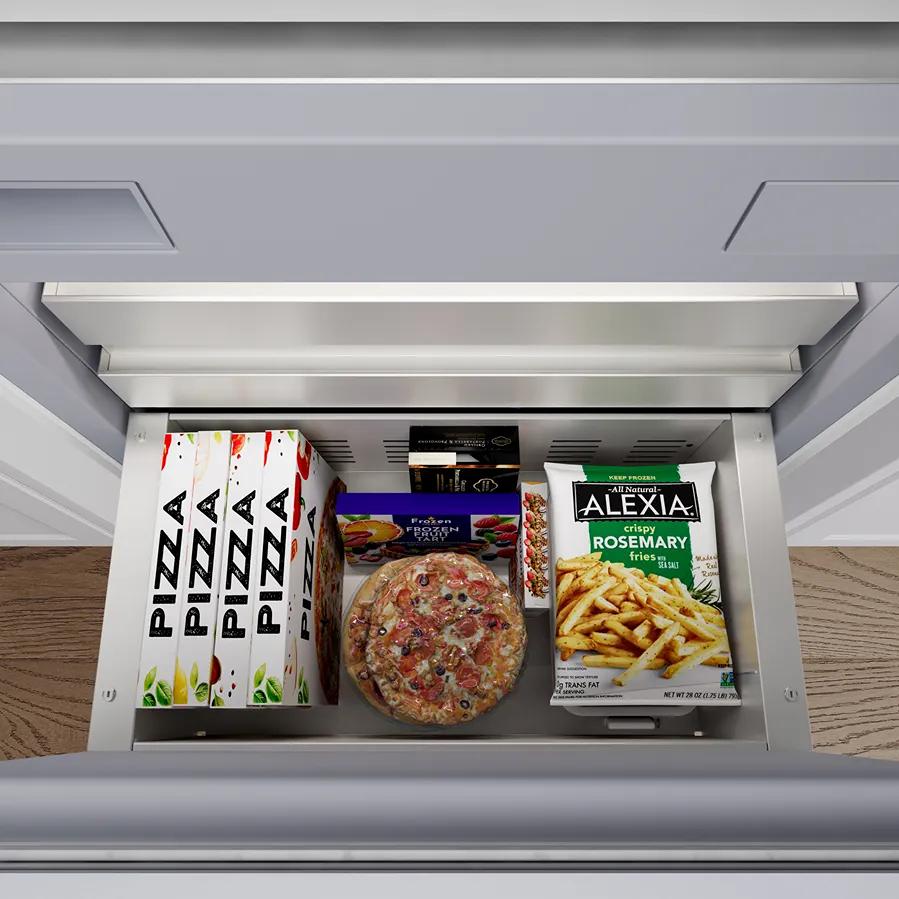

Full-Extension Freezer Storage Drawers: 3-Tier
Ice and Water
Ice System
Interior
Water System
Interior
Filtration
Yes
Filtration Indicator
Yes
Dispenser Features

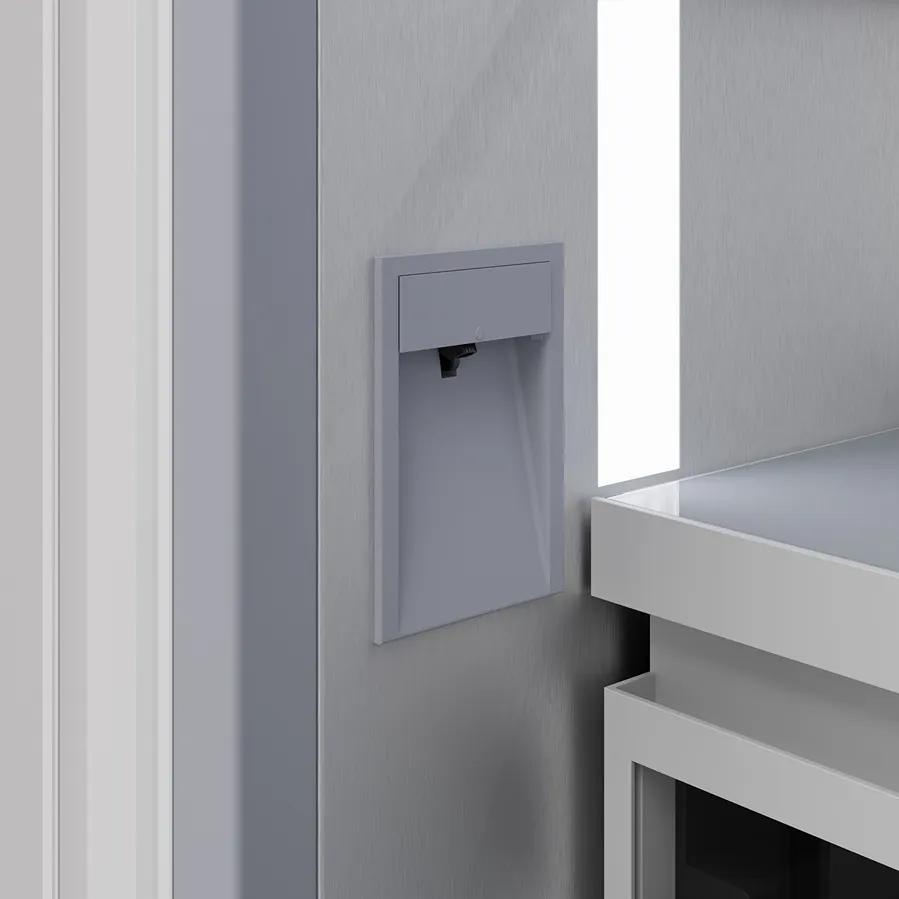

• One Touch BottleFill: Yes
• Water Filter (6 Months)
• Diamond Ice
• Ice Production (24 Hrs.), Diamond Ice: 5.5 lbs
• Ice On / Off
• Quick Ice
• Ice Storage Capacity: 6.6 lbs
• Water Filter (6 Months)
• Diamond Ice
• Ice Production (24 Hrs.), Diamond Ice: 5.5 lbs
• Ice On / Off
• Quick Ice
• Ice Storage Capacity: 6.6 lbs
Electrical Information
Information
• Required Power Supply: 110–120 V, 60 Hz, 15 Amp
• Plug Type: 3-Prong
• Annual Energy Consumption: 560 kWh / yr
• Plug Type: 3-Prong
• Annual Energy Consumption: 560 kWh / yr
Certifications and Approvals
Energy Star Certified
Yes
Sabbath Mode
Yes
Accessories
Included
• Anti-tip Bracket
• Frame Kit
• Frame Kit
Optional
• Stainless Steel Panel Kit (2 Panels): TFL30IB100
• Professional Handle Kit – 2 Qty, 30" Door Handles: PR3000IB10
• Masterpiece® Handle Kit – 2 Qty, 30" Door Handles: MS3000IB10
• Frame Kit: FRAMEKIT30
• Combination Kit: COMBIKIT10
• Replacement UltraClarityPro® Water Filter: REPLFLTR55
• Replacement Ethylene Starter Kit (Part No.): 17006999
• Replacement Ethylene Filter Packets (Part No.): 17007000
• Water Filter Bypass (Part No.): 11049963
• Professional Handle Kit – 2 Qty, 30" Door Handles: PR3000IB10
• Masterpiece® Handle Kit – 2 Qty, 30" Door Handles: MS3000IB10
• Frame Kit: FRAMEKIT30
• Combination Kit: COMBIKIT10
• Replacement UltraClarityPro® Water Filter: REPLFLTR55
• Replacement Ethylene Starter Kit (Part No.): 17006999
• Replacement Ethylene Filter Packets (Part No.): 17007000
• Water Filter Bypass (Part No.): 11049963
Dimensions
Class Width
29" to 31.9"
Class Height
70" and More
Width
29.76 inch(es) / 75.6 cm
Height (With Hinge)
83.58 inch(es) / 212.3 cm
Overall Depth
24.02 inch(es) / 61.0 cm
Warranty
Warranty
• Limited Warranty, Parts & Labor: 2 Years
• Limited Warranty, Sealed System and Compressor, Parts & Labor: 6 Years
• Limited Warranty, Sealed System and Compressor, Parts Only: 12 Years
• Limited Warranty, Sealed System and Compressor, Parts & Labor: 6 Years
• Limited Warranty, Sealed System and Compressor, Parts Only: 12 Years
