Features
SEALED GAS BURNERS
Pilotless sealed gas burners are rated at 8,000, 12,000 and 15,000 (“Superburner”) BTU’s*. Adjust simmer settings as low as 450 BTU’s. Safety feature: automatic spark ensures constant heat – re-ignites, even at lowest setting. Burners light at any knob position.
*BTU ratings based on natural gas.

SELF-CLEANING TRUE CONVECTION OVEN (SHOWN WITH 25 LB. TURKEY)
A 4.0 cu. ft. true convection oven offers the space and capacity you need. Convenient self-cleaning feature (with delayed start) is standard. Dual halogen lights let you see what’s cooking with the door open or closed.
The true convection oven has a third heating element surrounding the convection fan. Hot air circulates evenly, providing speed and consistent professional results.

GENUINE NICKEL TRIMS
Just like the wood-burning cookstoves of years gone by, our Antique ranges are adorned with genuine Nickel trims (Antique Brass or Antique Copper trims are optional.)

“FEATHER TOUCH” ELECTRONIC CONTROL PANEL
Conveniently located at eye level in the upper cabinet. Touch the screen lightly to select oven mode, then touch “Start”. Oven temperatures are easily controlled from 100 to 500° F. Indicator lights on the control panel and cooking surface tell you which function is being used. The cooktop light and exhaust fan are also controlled from this panel.

Specifications
General
Series Name
Heritage
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Red
Cooktop
Burners/Elements
4
Burners/Elements Output
• 2X 8,000 BTU Gas Burners (NG)
• 1X 12,000 BTU Gas Burner(NG)
• 1X 15,000 BTU "Superburner" (NG)
• 1X 12,000 BTU Gas Burner(NG)
• 1X 15,000 BTU "Superburner" (NG)
Burners
Sealed
Oven
Capacity (cu. ft.)
4.0 cu. ft.
Number of Ovens
Single
Features
Technologies
Feather Touch Tempered Glass Oven Control Panel
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Self-Cleaning Convection Oven
• Electronic Spark with Re–ignition
• Easy Clean Porcelain Top or Top Frame
• 350 CFM Exhaust Fan Standard (Recirculating and Outside Vent)
• Cooking Surface Light, Night Light
• Feather Touch Tempered Glass Oven Control Panel
• Electronic Oven Control
• Delayed Start Baking
• Dual Element Baking
• Vari. Temp. Broil
• Door Activated Oven Light
• Easy Clean Porcelain Top or Top Frame
• Nickel Trimmed Range Top
• Heavy Duty, Plated Oven Racks
• Power Ratings NG (BTU): 43,000
• Electronic Spark with Re–ignition
• Easy Clean Porcelain Top or Top Frame
• 350 CFM Exhaust Fan Standard (Recirculating and Outside Vent)
• Cooking Surface Light, Night Light
• Feather Touch Tempered Glass Oven Control Panel
• Electronic Oven Control
• Delayed Start Baking
• Dual Element Baking
• Vari. Temp. Broil
• Door Activated Oven Light
• Easy Clean Porcelain Top or Top Frame
• Nickel Trimmed Range Top
• Heavy Duty, Plated Oven Racks
• Power Ratings NG (BTU): 43,000
Electrical Information
Information
240V
Accessories
Included
Porcelain Enamel Broiler Pan

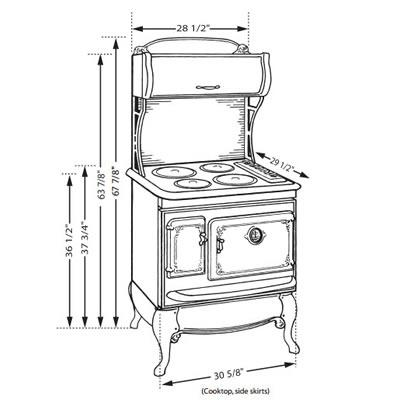

Dimensions
Class Width
30"
Width
30.63 inch(es) / 77.79 cm
Height
67.87 inch(es) / 172.40 cm
Depth (Without Handles)
29.5 inch(es) / 74.93 cm
Additional Dimensions
Oven Size: 25" W x 16" H x 16 5/18" D
Shipping Dimensions
Weight
400.01 lb(s) / 181.44 kg
Warranty
Warranty
• One-year warranty, covering parts and labor
• Additional four-year warranty (five years total) parts only on range / wall oven burners and elements, fridge sealed refrigeration unit and compressor, and microwave magnetron tube
• Additional four-year warranty (five years total) parts only on range / wall oven burners and elements, fridge sealed refrigeration unit and compressor, and microwave magnetron tube
