Features
HIGH-SPEED RADIANT ELECTRIC ELEMENTS
High-speed infinite-control elements under a ceramic top provide quick, uniform heat, precise cooking and easy clean-up. Heat to the elements is automatically reduced in the event of a pot boiling dry. Elements are rated at 1500 and 1800 watts.

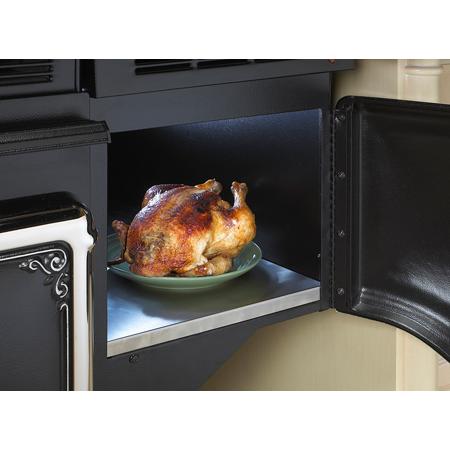

SELF-CLEANING TRUE CONVECTION OVEN (SHOWN WITH 25 LB. TURKEY)
A 4.0 cu. ft. true convection oven offers the space and capacity you need. Convenient self-cleaning feature (with delayed start) is standard. Dual halogen lights let you see what’s cooking with the door open or closed.
The true convection oven has a third heating element surrounding the convection fan. Hot air circulates evenly, providing speed and consistent professional results.
GENUINE NICKEL TRIMS
Just like the wood-burning cookstoves of years gone by, our Antique ranges are adorned with genuine Nickel trims (Antique Brass or Antique Copper trims are optional.)
“FEATHER TOUCH” ELECTRONIC CONTROL PANEL
Conveniently located at eye level in the upper cabinet. Touch the screen lightly to select oven mode, then touch “Start”. Oven temperatures are easily controlled from 100 to 500° F. Indicator lights on the control panel and cooking surface tell you which function is being used. The cooktop light and exhaust fan are also controlled from this panel.
Specifications
General
Series Name
Heritage
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Color
Beige
Cooktop
Burners/Elements
6
Burners/Elements Output
• 2X 8,000 BTU Gas Burners (NG)
• 1X 12,000 BTU Gas Burners (NG)
• 1X 15,000 BTU "Superburner" (NG)
• 1X 1,500 Watt Radiant Element
• 1X 2,000 Watt Radiant Element
• 1X 12,000 BTU Gas Burners (NG)
• 1X 15,000 BTU "Superburner" (NG)
• 1X 1,500 Watt Radiant Element
• 1X 2,000 Watt Radiant Element
Burners
Sealed
Elements
Smoothtop
Oven
Capacity (cu. ft.)
4.0 cu. ft.
Number of Ovens
Single
Features
Technologies
Feather Touch Tempered Glass Oven Control Panel
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Self-Cleaning Convection Oven
• Electric High–speed Radiant Elements under glass
• 4 Gas: Sealed Surface Burners with cast grates
• Self-Cleaning Electric Oven
• "Stay Hot" Food Warmer
• Electronic Oven Control
• Delayed Start Baking
• Dual Element Baking
• Vari. Temp. Broil
• Door Activated Oven Light
• Heavy Duty, Plated Oven Racks
• Electronic Spark with Re–ignition
• Easy Clean Porcelain Top or Top Frame
• Nickel Trimmed Range Top
• 350 CFM Exhaust Fan Standard (Recirculating and Outside Vent)
• Cooking Surface Light, Night Light
• Power Ratings NG (BTU) 43,000
• Electric High–speed Radiant Elements under glass
• 4 Gas: Sealed Surface Burners with cast grates
• Self-Cleaning Electric Oven
• "Stay Hot" Food Warmer
• Electronic Oven Control
• Delayed Start Baking
• Dual Element Baking
• Vari. Temp. Broil
• Door Activated Oven Light
• Heavy Duty, Plated Oven Racks
• Electronic Spark with Re–ignition
• Easy Clean Porcelain Top or Top Frame
• Nickel Trimmed Range Top
• 350 CFM Exhaust Fan Standard (Recirculating and Outside Vent)
• Cooking Surface Light, Night Light
• Power Ratings NG (BTU) 43,000
Electrical Information
Information
240V

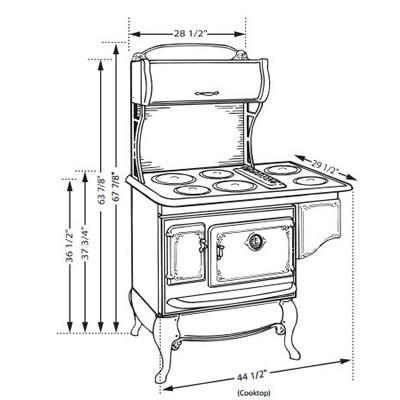

Dimensions
Class Width
45"
Width
44.5 inch(es) / 113.03 cm
Height
67.87 inch(es) / 172.40 cm
Depth (Without Handles)
29.5 inch(es) / 74.93 cm
Additional Dimensions
Oven Size: 25" W x 16" H x 16 5/18" D
Shipping Dimensions
Weight
434.99 lb(s) / 197.31 kg
Warranty
Warranty
• One-year warranty, covering parts and labor
• Additional four-year warranty (five years total) parts only on range / wall oven burners and elements, fridge sealed refrigeration unit and compressor, and microwave magnetron tube
• Additional four-year warranty (five years total) parts only on range / wall oven burners and elements, fridge sealed refrigeration unit and compressor, and microwave magnetron tube
