Features
AIR COOKING TECHNOLOGY
Get the ultimate Air Cooking technology and bring fresh options to family dinner with No Preheat Air Fry, Air Baking, Air Broil, Air Roast and Air Reheat.

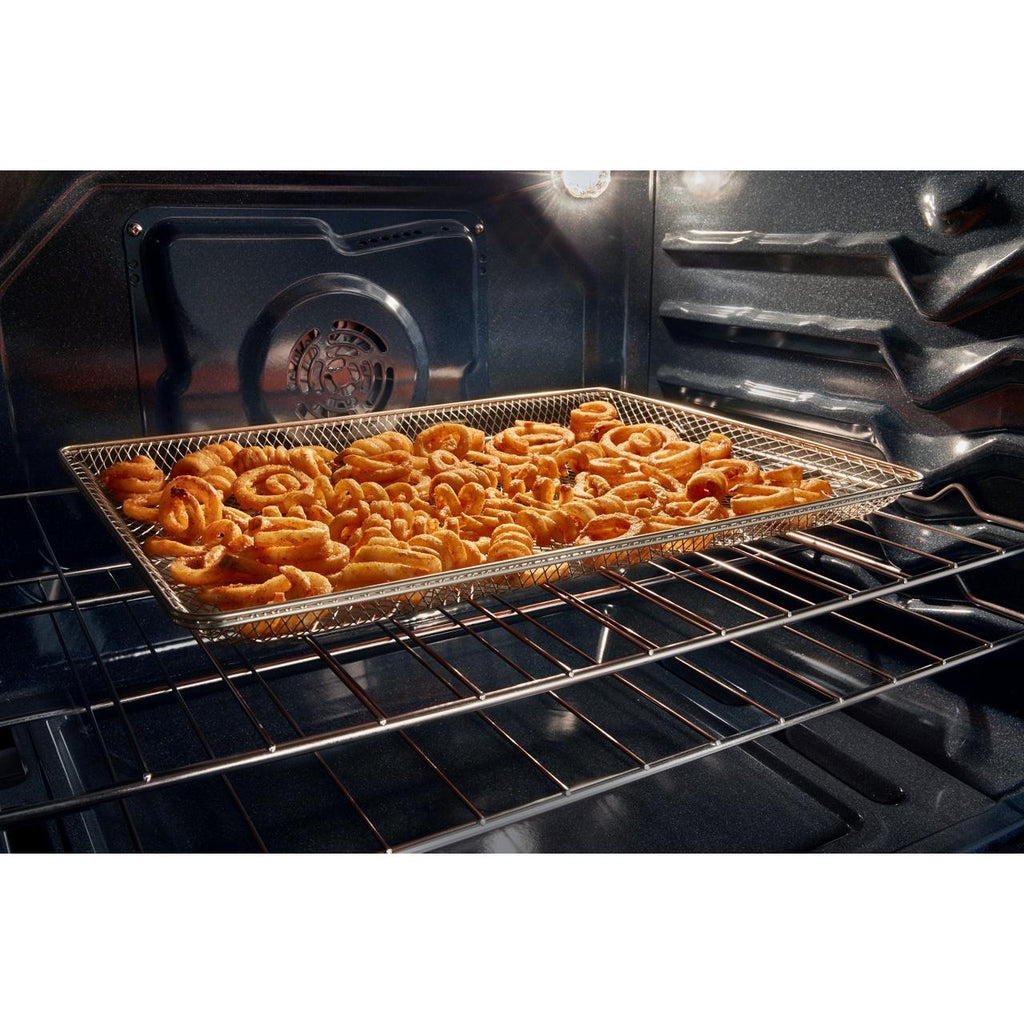

NO PREHEAT AIR FRY
Save time* with No Preheat Air Fry. Our most advanced air fry mode delivers the right heat at the right time, while using less oil than traditional deep frying. Get fast, crispy, tasty results with No Preheat Air Fry.

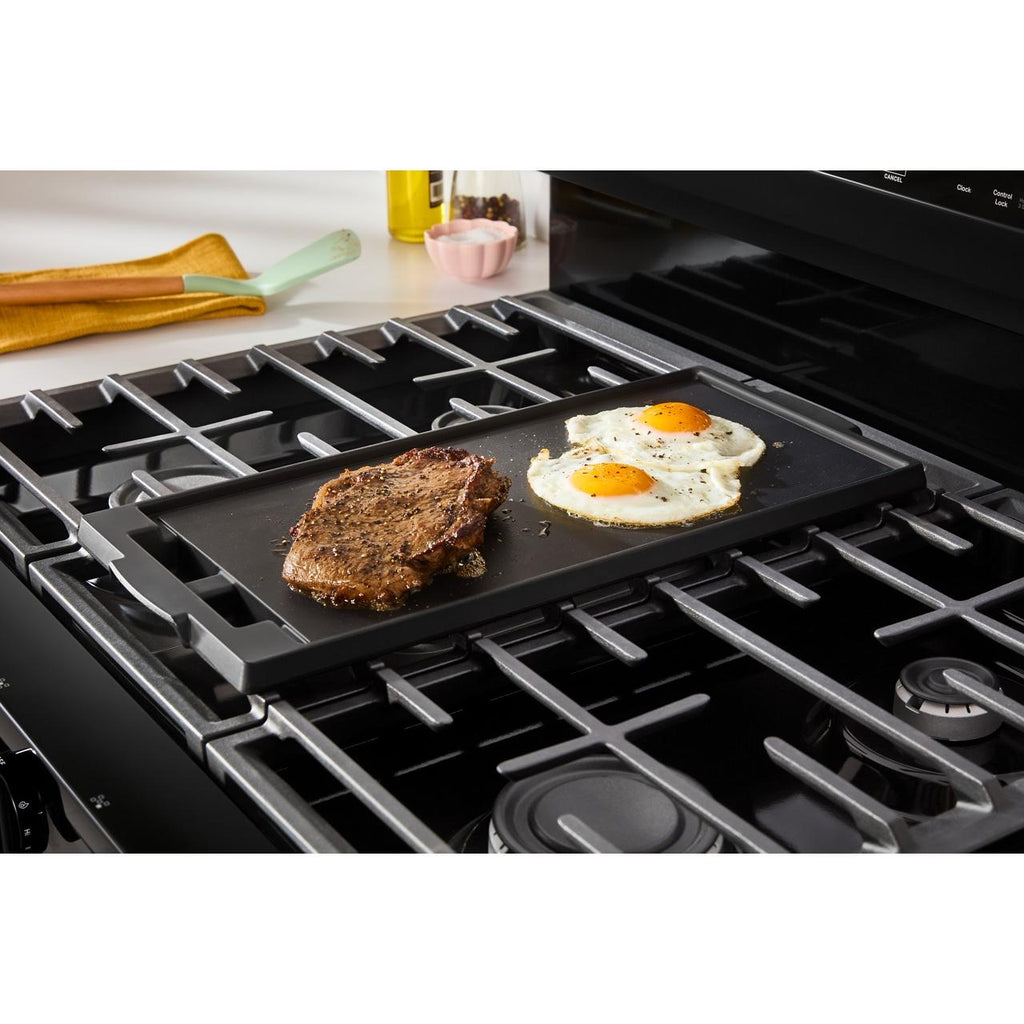

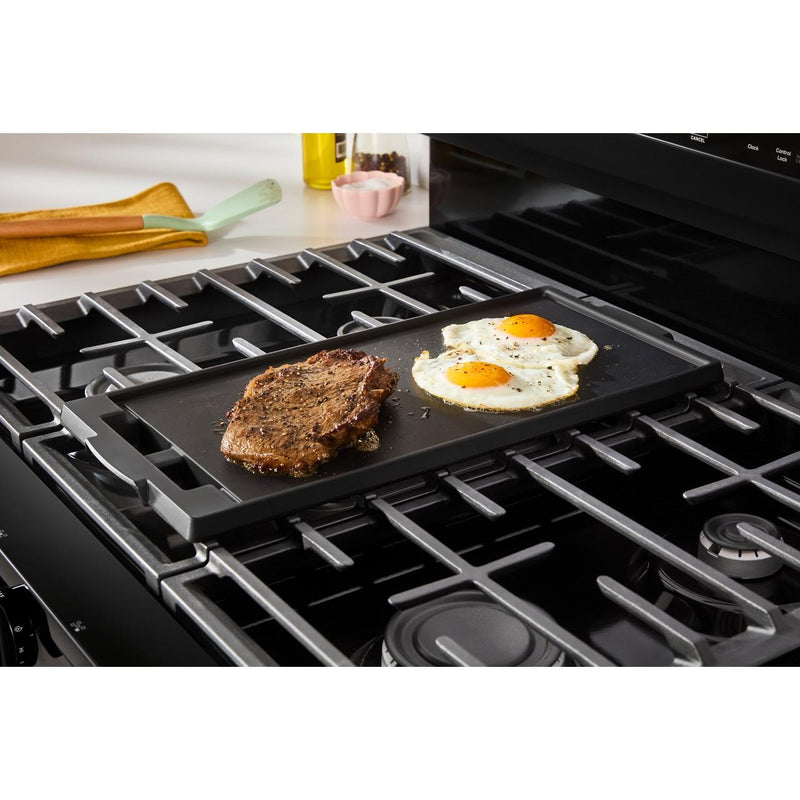

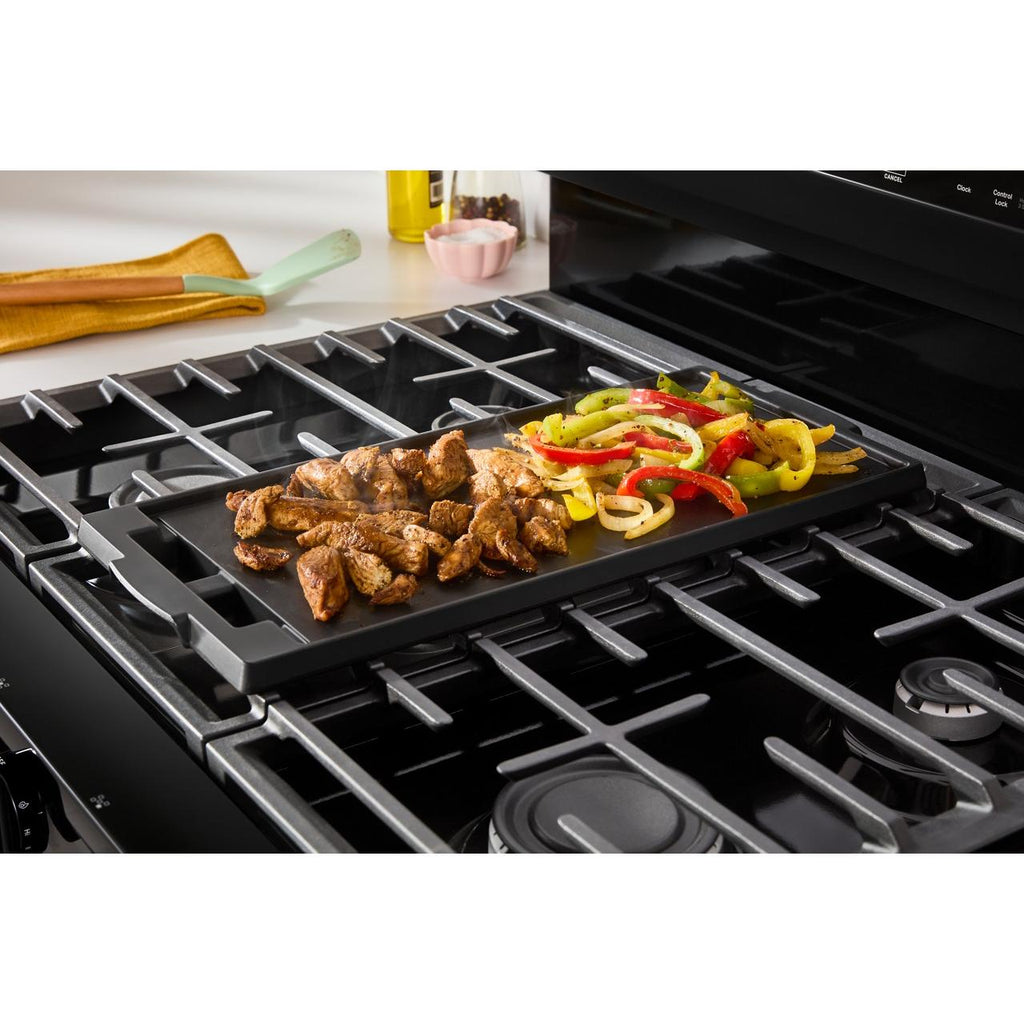

GRIDDLE ZONE
Maximize your cooking space for a variety of mealtime options with Griddle Zone. Two individual heating elements combine to form one larger one, making it easy to cook up all that delights, all at once.

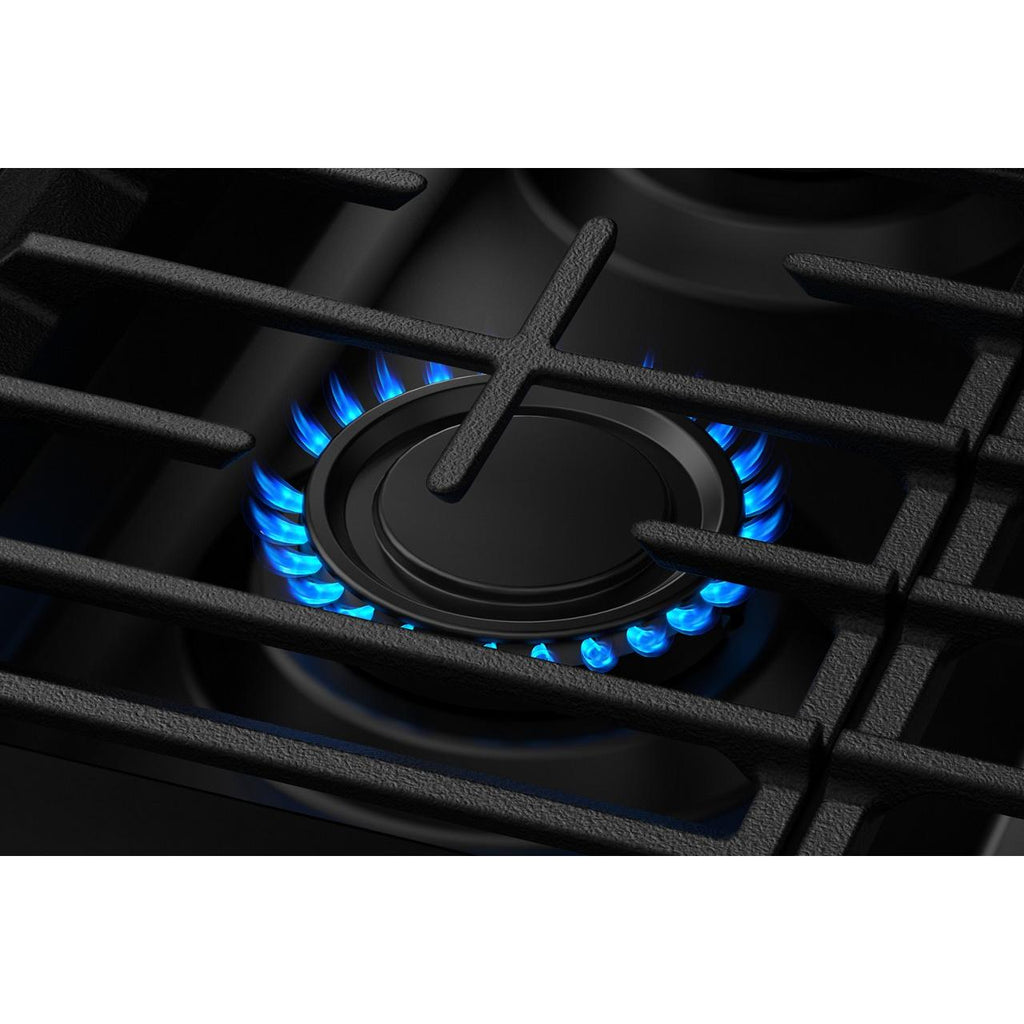

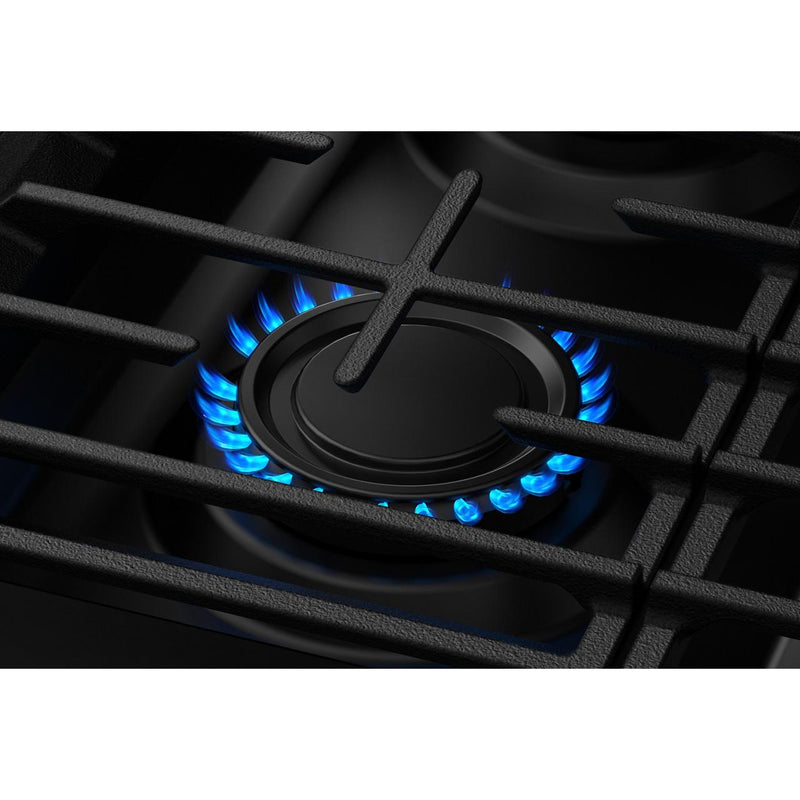

SPEEDHEAT™ BURNER
Generate the high heat needed for rapid boiling, searing and frying with multiple Power™ burners that offer up to 15,000 BTUs.
NO PREHEAT MODE
Take preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.
Additional Features

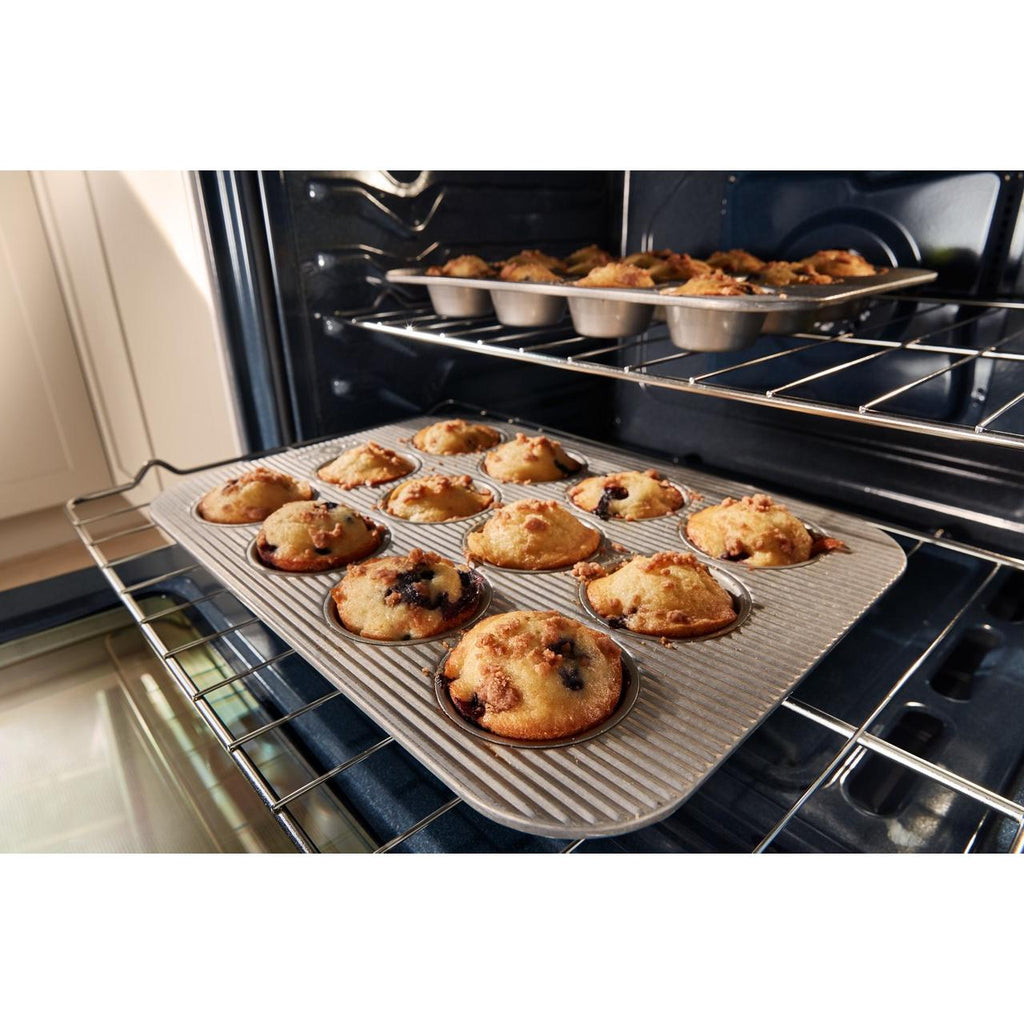

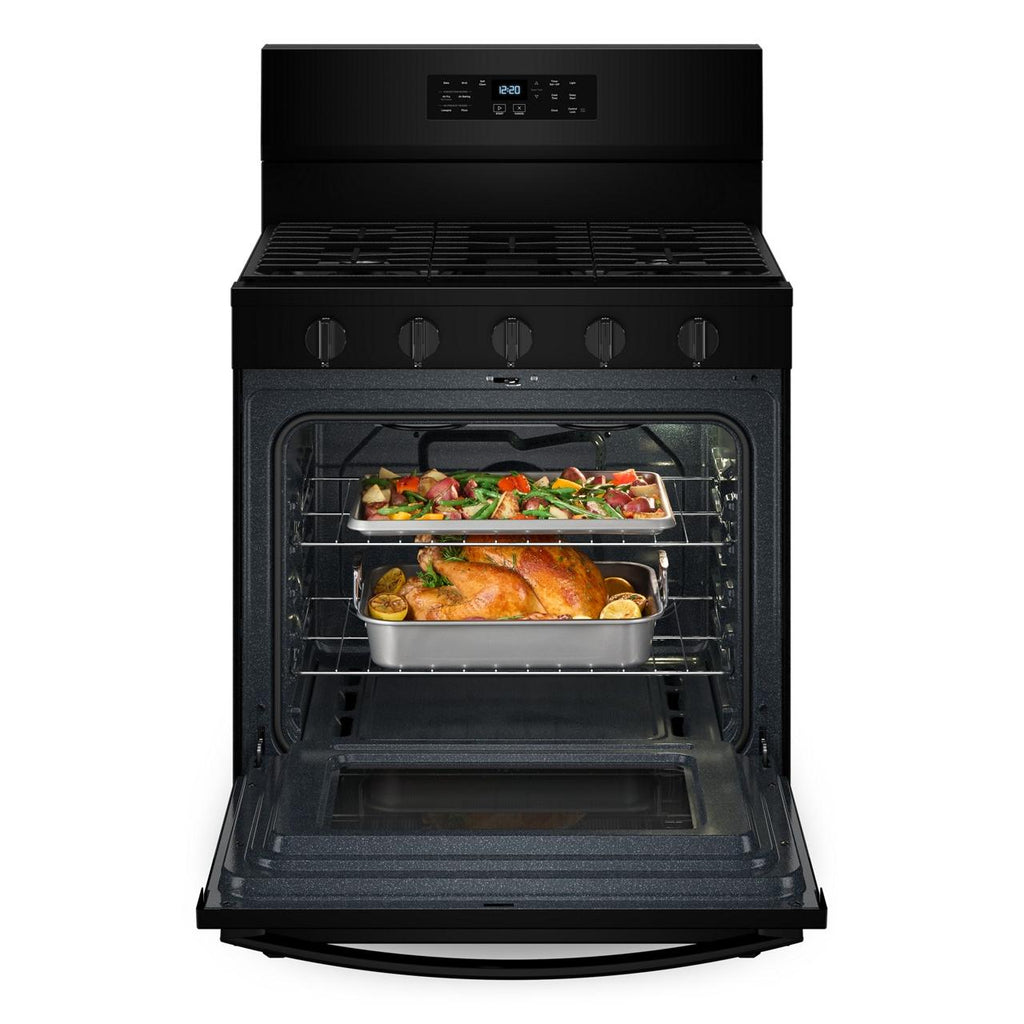

AIR BAKING
Go from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consistent heat throughout the oven. Get golden results on breads, pastries and more.
SELF CLEAN
Easily clean your oven with the adjustable Self Clean cycle that can be customized based on the amount of spills and splatters.

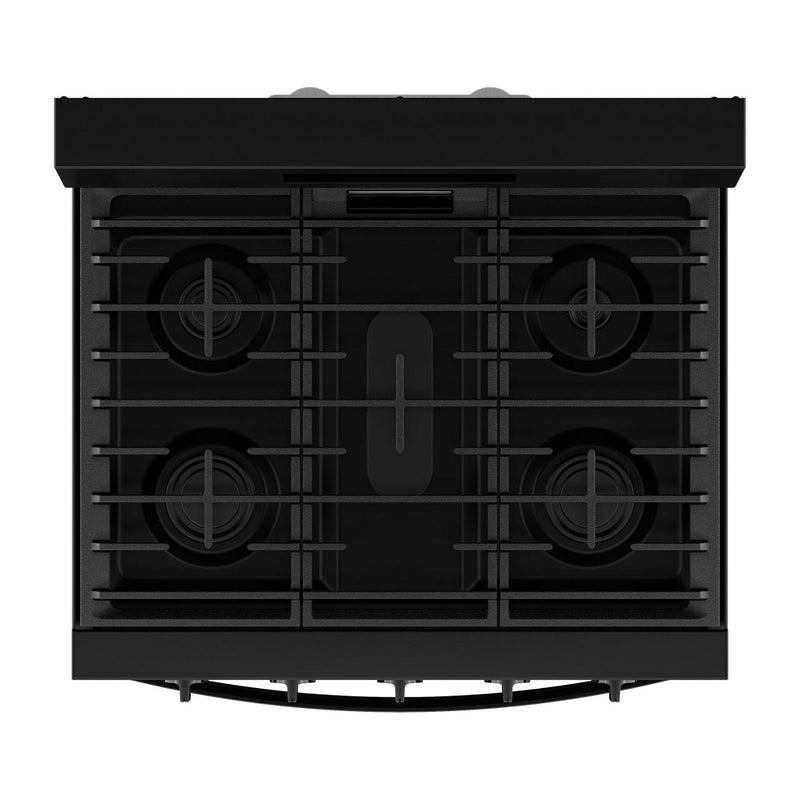

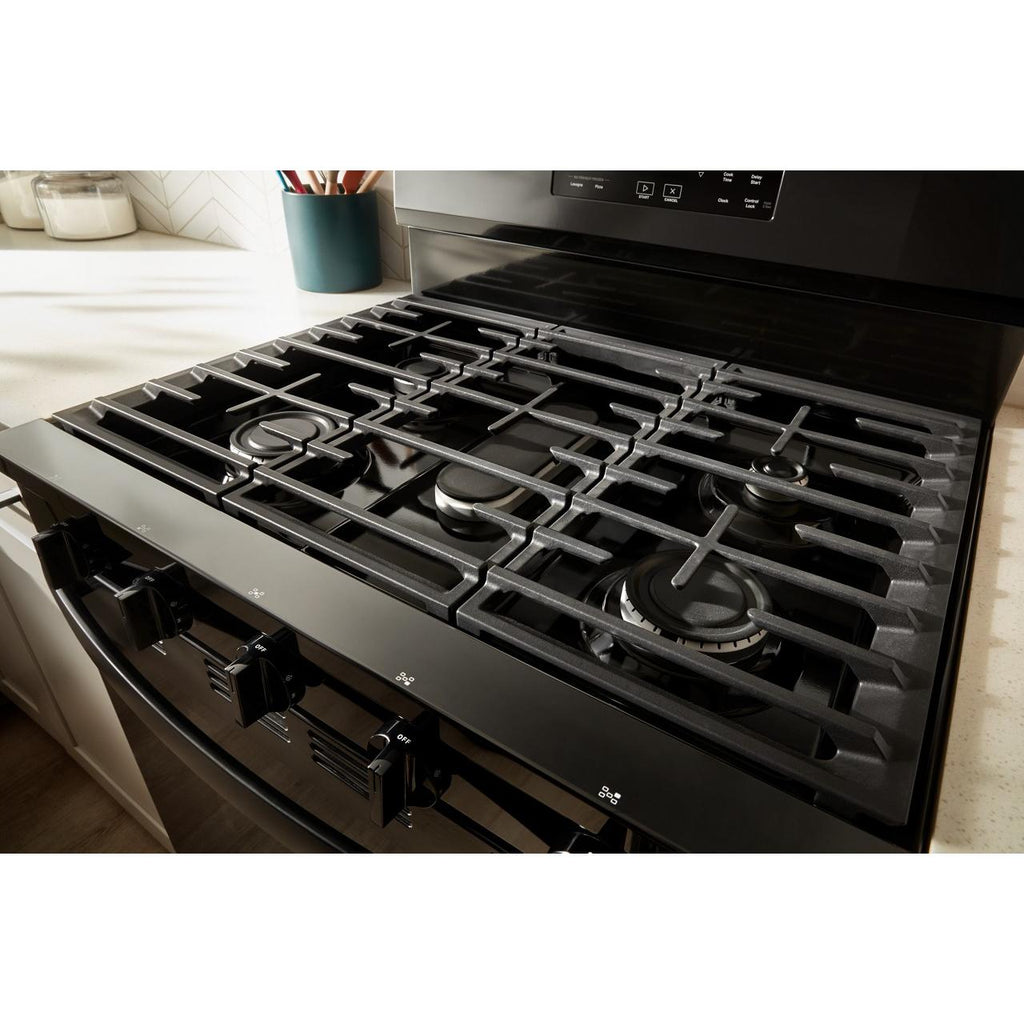

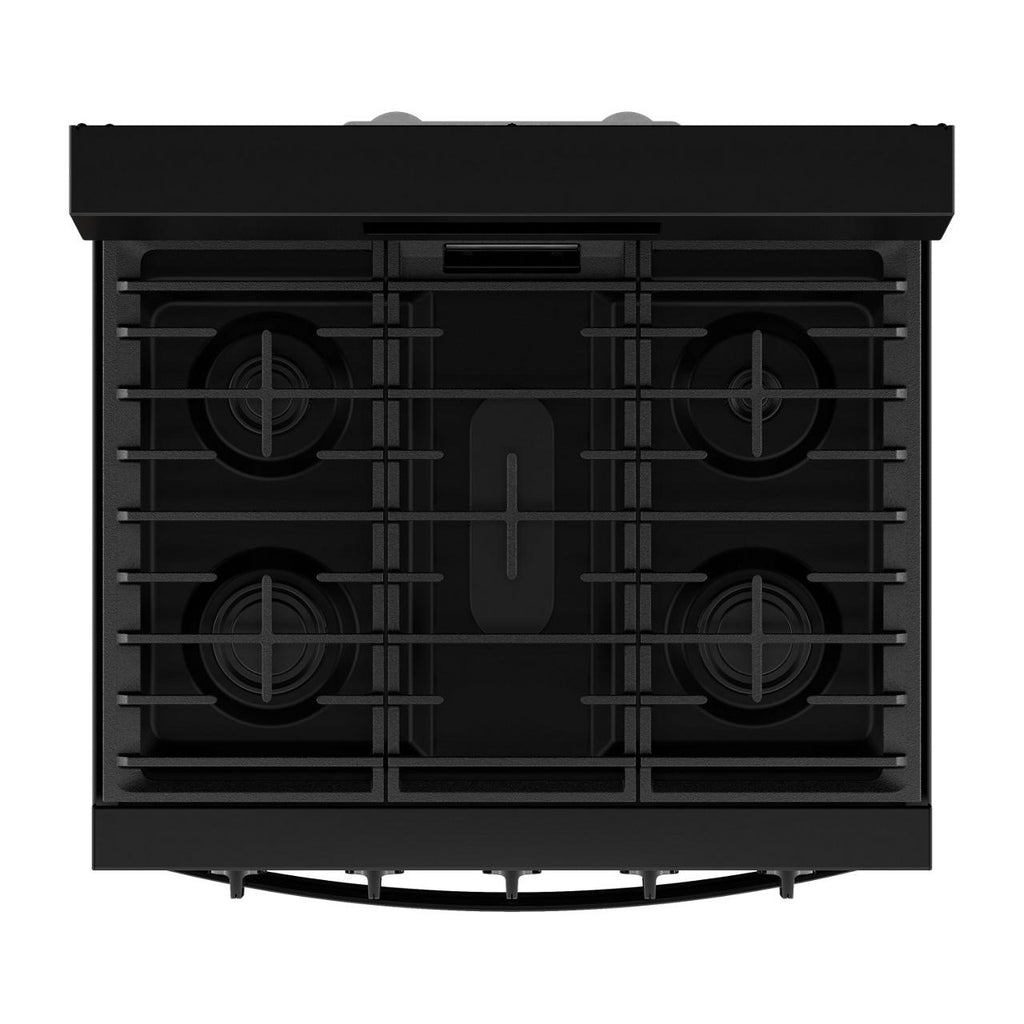

EDGE-TO-EDGE CAST-IRON GRATES
Get more space to sauté, boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to place pots and pans anywhere.
COOKTOP FLEXIBILITY
Easily cook multiple dishes at once with a Flexible Cooktop that offers a range of element sizes and power levels.
SABBATH MODE
This range is designed to meet the needs of those who are kosher and Sabbath observant. When Sabbath mode is enabled, the oven is set to remain on the "Bake" setting at a constant temperature until it's manually turned off. In addition, displays, tones and all other cooking and cleaning cycles are disabled. The oven light will also not activate when the oven door is opened and heating elements will not immediately turn on or off.
Specifications
General
Fuel Type
Natural Gas
Installation Type
Freestanding
Color
Black
Manufacturer Color
Black
Appliance Care
Self-Clean
Cooktop
Burners/Elements
5
Burners/Elements Output
• Right Rear: 5,000 BTU
• Right Front: 18,000 BTU
• Left Rear: 10,000 BTU
• Left Front: 15,000 BTU
• Center Front: 12,000 BTU
• Right Front: 18,000 BTU
• Left Rear: 10,000 BTU
• Left Front: 15,000 BTU
• Center Front: 12,000 BTU
Burners
Sealed

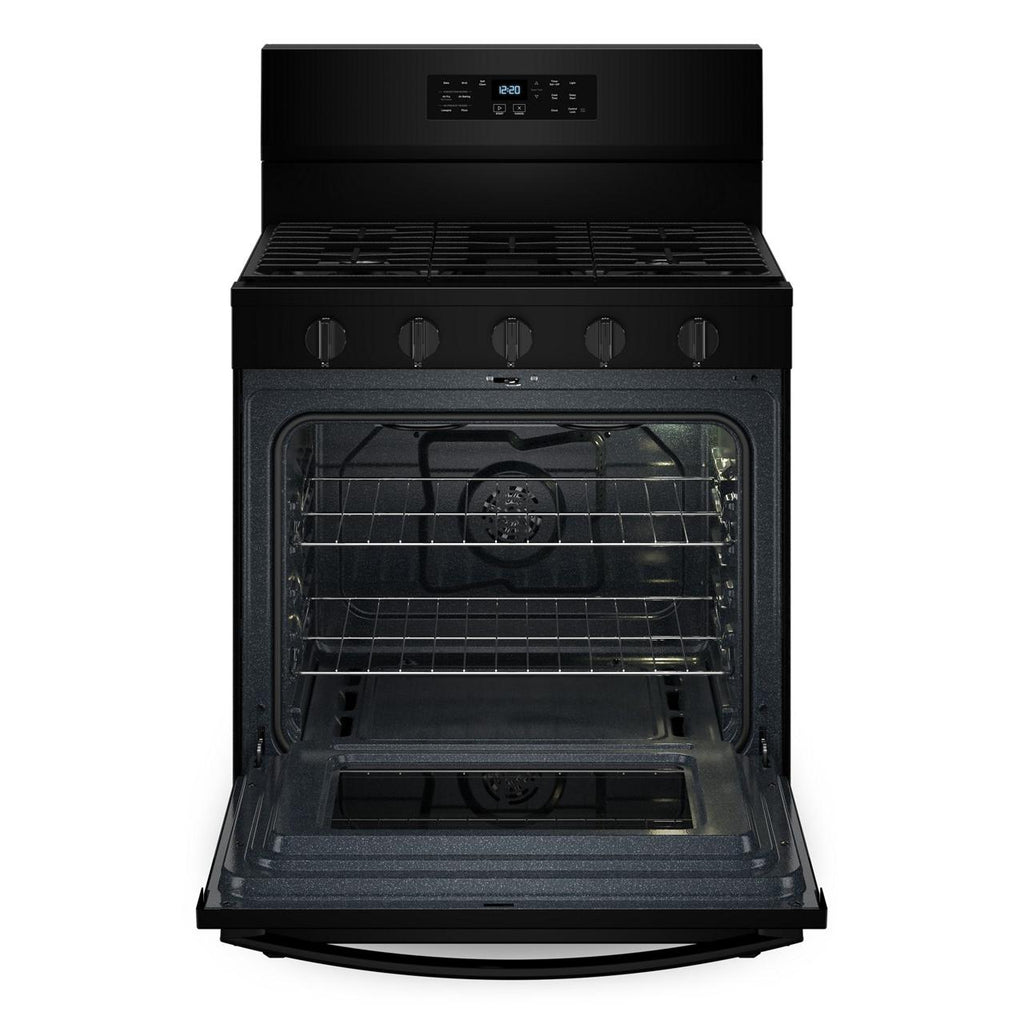

Oven
Capacity (cu. ft.)
5.0 cu. ft.
Number of Ovens
Single
Programs
• Audible Signal
• Bake
• Broil
• Cancel/Off
• Clock
• Control Lock
• Convect Modes
• Cook Time Indicator
• Delay Start
• Frozen Bake
• Keep Warm/Warm Hold
• No Preheat - Air Fry
• No Preheat - Frozen Lasagna
• No Preheat - Frozen Pizza
• Sabbath Mode
• Start Time
• Stop Time
• Timer
• Bake
• Broil
• Cancel/Off
• Clock
• Control Lock
• Convect Modes
• Cook Time Indicator
• Delay Start
• Frozen Bake
• Keep Warm/Warm Hold
• No Preheat - Air Fry
• No Preheat - Frozen Lasagna
• No Preheat - Frozen Pizza
• Sabbath Mode
• Start Time
• Stop Time
• Timer
Features
Air Fry
Yes
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Total Gas BTUs Oven: 16,500
• Total Gas BTUs Cooktop: 58,000
• LP Convertible
• Convection Element Type: Fan
• Oven Control Location: Rear Control
• Number Of Rack Guides: 5
• Number Of Oven Racks: 2
• Number Of Oven Lights: 1
• Interior Color: Blue Graphite
• Hidden Bake Element

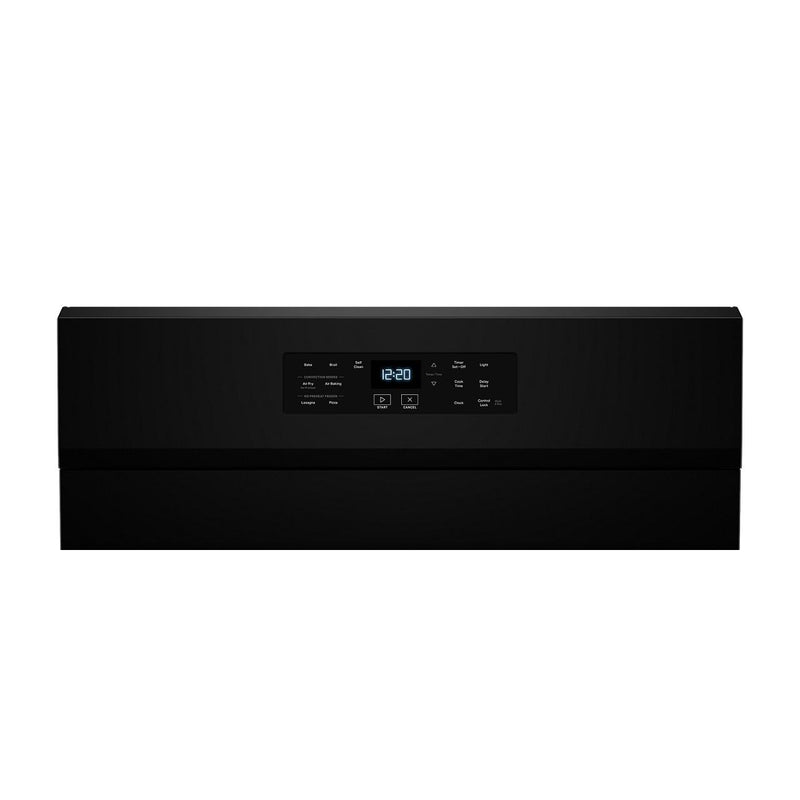

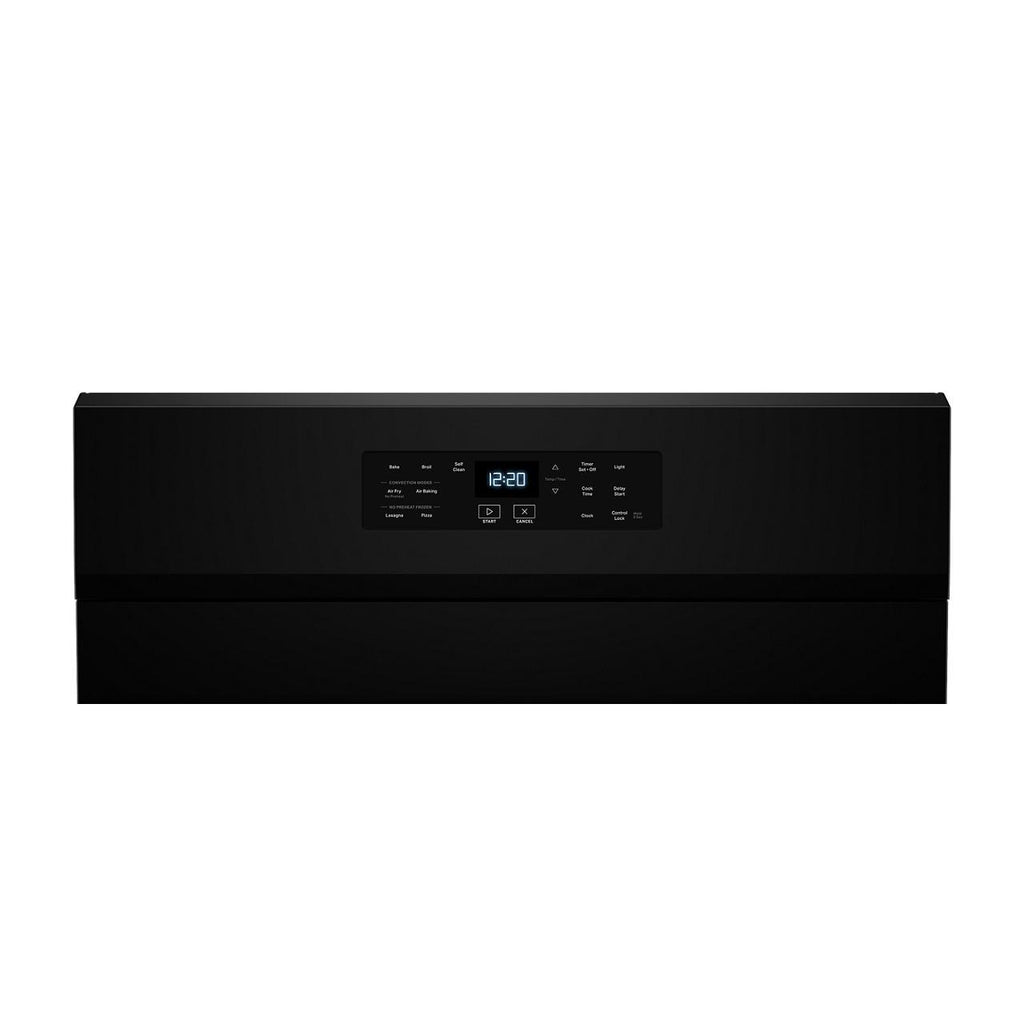

• Oven Control Type: Electronic Touch
• Broiler Location: Top Center
• Broiler Element Power: 1,300 W
• Automatic Shut Off
• Oven Rack Type: 2 Standard
• Oven Light Type: Halogen
• Oven Light Switch Location: Oven Control
• Oven Cooking System: Thermal
• Oven Door: Glass
• Door Removable
• Handle Type: Reach Through Handle
• Handle Material: Metal
• Total Gas BTUs Cooktop: 58,000
• LP Convertible
• Convection Element Type: Fan
• Oven Control Location: Rear Control
• Number Of Rack Guides: 5
• Number Of Oven Racks: 2
• Number Of Oven Lights: 1
• Interior Color: Blue Graphite
• Hidden Bake Element
• Oven Control Type: Electronic Touch
• Broiler Location: Top Center
• Broiler Element Power: 1,300 W
• Automatic Shut Off
• Oven Rack Type: 2 Standard
• Oven Light Type: Halogen
• Oven Light Switch Location: Oven Control
• Oven Cooking System: Thermal
• Oven Door: Glass
• Door Removable
• Handle Type: Reach Through Handle
• Handle Material: Metal
Drawer Features
Storage
Yes
Electrical Information
Information
• Watts: 1,400 W
• Volts: 120 V
• Hz: 60 Hz
• Amps: 15 A
• Volts: 120 V
• Hz: 60 Hz
• Amps: 15 A
Certifications and Approvals
Sabbath/Star-K
Yes
Information
• CUL
• UL
• UL
Accessories
Included
Power Cord
Optional
• 4396096RB
• UVL5430JSS
• UXT5530AAS
• WVU17UC0JS
• WVU17UC0JW
• WVU37UC0FS
• WVU57UC0FS
• WVW51UC0LS
• WVW53UC0HV
• WVW53UC0LS
• WVW57UC0FS
• WVW73UC0LS
• UVL5430JSS
• UXT5530AAS
• WVU17UC0JS
• WVU17UC0JW
• WVU37UC0FS
• WVU57UC0FS
• WVW51UC0LS
• WVW53UC0HV
• WVW53UC0LS
• WVW57UC0FS
• WVW73UC0LS
Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.9 cm
Height
47.88 inch(es) / 121.62 cm
Depth (Without Handles)
25.31 inch(es) / 64.29 cm
Depth (Including Handles)
28 inch(es) / 71.12 cm
Weight
174.01 lb(s) / 78.93 kg
Additional Dimensions
• Depth With Door Open 90 Degree: 46.69 in.
• Maximum Height: 47.88 in.
• Minimum Height: 46.5 in.
• Cutout Depth: 24.0 in.
• Cutout Height: 36.0 in.
• Cutout Width: 30.0 in.
• Maximum Height: 47.88 in.
• Minimum Height: 46.5 in.
• Cutout Depth: 24.0 in.
• Cutout Height: 36.0 in.
• Cutout Width: 30.0 in.
Shipping Dimensions
Width
32 inch(es) / 81.28 cm
Height
49 inch(es) / 124.46 cm
Depth
29 inch(es) / 73.66 cm
Weight
189.99 lb(s) / 86.18 kg
Warranty
Warranty
1-Year parts and labor
UPC
UPC#
883049682525
