Specifications
General
Series Name
Heritage
Fuel Type
Liquid Propane
Installation Type
Freestanding
Color
Red
Cooktop
Burners/Elements
4
Burners/Elements Output
• 2X Gas Top Burners, 8,000 BTU (NG)
• 1X Gas Top Burner, 12,000 BTU (NG)
• 1X Superburner 15,000 BTU (NG)
• (Ratings for liquid propane are approximately 10% lower)
• 1X Gas Top Burner, 12,000 BTU (NG)
• 1X Superburner 15,000 BTU (NG)
• (Ratings for liquid propane are approximately 10% lower)
Burners
Sealed
Oven
Capacity (cu. ft.)
4.0 cu. ft.
Number of Ovens
Single
Features
Technologies
Feather Touch Tempered Glass Oven Control Panel
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Gas Self-Cleaning Oven with Waist High Broiler
• Electronic Oven Control
• Delayed Start Baking
• Vari. Temp. Broil
• Door Activated Oven Light
• Heavy Duty, Plated Oven Racks
• Electronic Spark with Re–Ignition
• Easy Clean Porcelain Top or Top Frame
• Nickel Trimmed Range Top
• 350 CFM Exhaust Fan Standard (Recirculating and Outside Vent)
• Cooking Surface Light, Night Light
• Power Ratings LP (BTU): 53,100
• Electronic Oven Control
• Delayed Start Baking
• Vari. Temp. Broil
• Door Activated Oven Light
• Heavy Duty, Plated Oven Racks
• Electronic Spark with Re–Ignition
• Easy Clean Porcelain Top or Top Frame
• Nickel Trimmed Range Top
• 350 CFM Exhaust Fan Standard (Recirculating and Outside Vent)
• Cooking Surface Light, Night Light
• Power Ratings LP (BTU): 53,100
Electrical Information
Information
120V
Certifications and Approvals
Sabbath/Star-K
No
Accessories
Included
Porcelain Enamel Broiler Pan

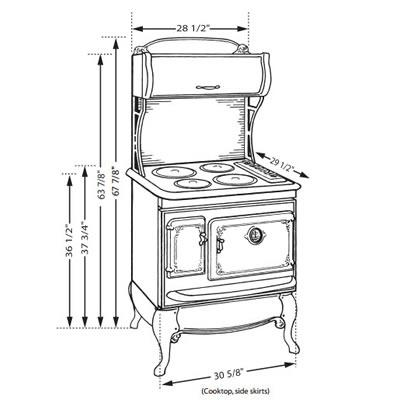

Dimensions
Class Width
30"
Width
30.63 inch(es) / 77.79 cm
Height
67.87 inch(es) / 172.40 cm
Depth (Without Handles)
29.5 inch(es) / 74.93 cm
Additional Dimensions
Oven Size: 25" W x 16" H x 18" D
Shipping Dimensions
Weight
409.99 lb(s) / 185.97 kg
Warranty
Warranty
Limited 1 year parts and labor
