Features
SEALED GAS BURNERS
Pilotless sealed gas burners are rated at 8,000, 12,000 and 15,000 (“Superburner”) BTU’s*. Adjust simmer settings as low as 450 BTU’s. Safety feature: automatic spark ensures constant heat – re-ignites, even at lowest setting. Burners light at any knob position.
*BTU ratings based on natural gas.
SELF-CLEANING OVEN (SHOWN WITH 25 LB. TURKEY)
A 4.0 cu. ft. self-cleaning oven offers the space and capacity you need. Convenient self-cleaning feature (with delayed start) is standard.
GENUINE NICKEL TRIMS
Just like the wood-burning cookstoves of years gone by, our Antique ranges are adorned with genuine Nickel trims (Antique Brass or Antique Copper trims are optional.)
“FEATHER TOUCH” ELECTRONIC CONTROL PANEL
Conveniently located at eye level in the upper cabinet. Touch the screen lightly to select oven mode, then touch “Start”. Oven temperatures are easily controlled from 100 to 500° F. Indicator lights on the control panel and cooking surface tell you which function is being used. The cooktop light and exhaust fan are also controlled from this panel.
Specifications
General
Series Name
Heritage
Fuel Type
Liquid Propane
Installation Type
Freestanding
Color
White
Cooktop
Burners/Elements
4
Burners/Elements Output
• 2X Gas Top Burners, 8,000 BTU (NG)
• 1X Gas Top Burner, 12,000 BTU (NG)
• 1X Superburner 15,000 BTU (NG)
• (Ratings for liquid propane are approximately 10% lower)
• 1X Gas Top Burner, 12,000 BTU (NG)
• 1X Superburner 15,000 BTU (NG)
• (Ratings for liquid propane are approximately 10% lower)
Burners
Sealed
Oven
Capacity (cu. ft.)
4.0 cu. ft.
Number of Ovens
Single
Features
Technologies
Feather Touch Tempered Glass Oven Control Panel
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Gas Self-Cleaning Oven with Waist High Broiler
• Electronic Oven Control
• Delayed Start Baking
• Vari. Temp. Broil
• Door Activated Oven Light
• Heavy Duty, Plated Oven Racks
• Electronic Spark with Re–Ignition
• Easy Clean Porcelain Top or Top Frame
• Nickel Trimmed Range Top
• 350 CFM Exhaust Fan Standard (Recirculating and Outside Vent)
• Cooking Surface Light, Night Light
• Power Ratings LP (BTU): 53,100
• Electronic Oven Control
• Delayed Start Baking
• Vari. Temp. Broil
• Door Activated Oven Light
• Heavy Duty, Plated Oven Racks
• Electronic Spark with Re–Ignition
• Easy Clean Porcelain Top or Top Frame
• Nickel Trimmed Range Top
• 350 CFM Exhaust Fan Standard (Recirculating and Outside Vent)
• Cooking Surface Light, Night Light
• Power Ratings LP (BTU): 53,100
Electrical Information
Information
120V
Accessories
Included
Porcelain Enamel Broiler Pan

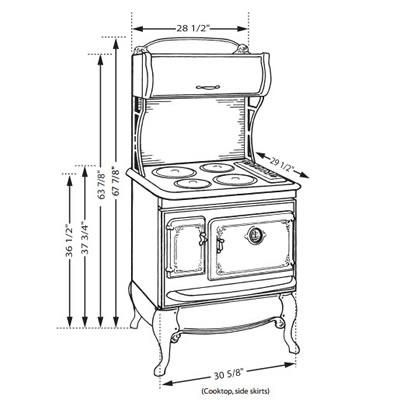

Dimensions
Class Width
30"
Width
30.63 inch(es) / 77.79 cm
Height
67.87 inch(es) / 172.40 cm
Depth (Without Handles)
29.5 inch(es) / 74.93 cm
Additional Dimensions
Oven Size: 25" W x 16" H x 18" D
Shipping Dimensions
Weight
409.99 lb(s) / 185.97 kg
Warranty
Warranty
Limited 1 year parts and labor
